Suzhou Volsun Electronics Technology Co., Ltd.
| Quantity: | |
|---|---|
VS-PE
Volsun

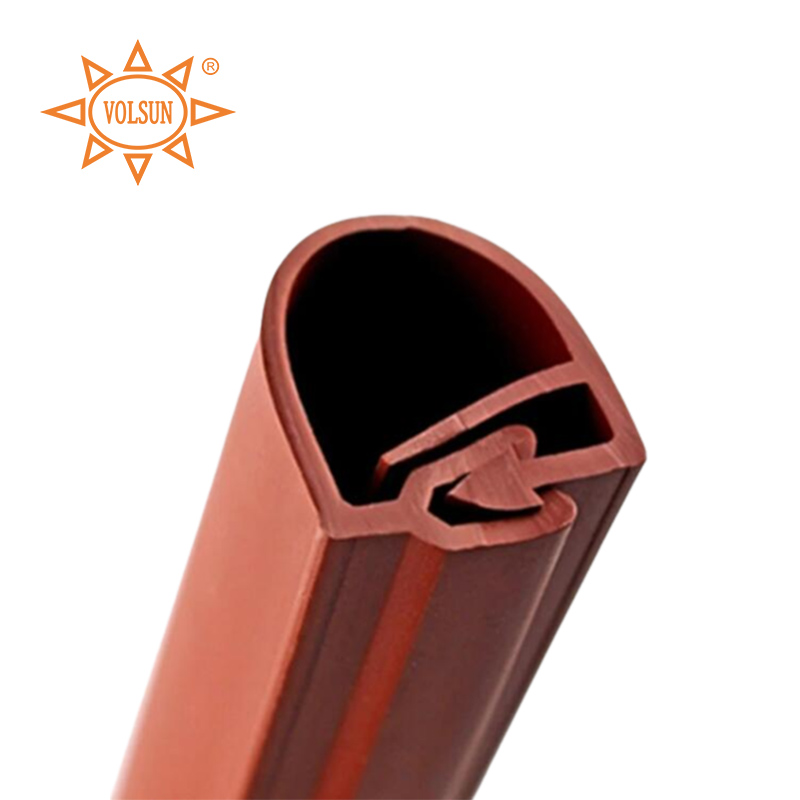

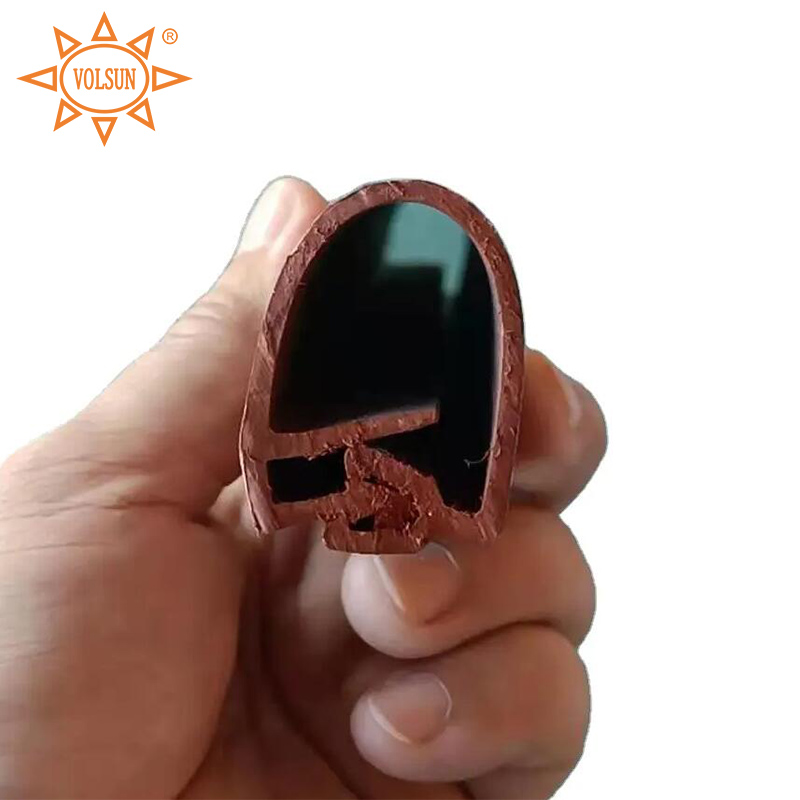

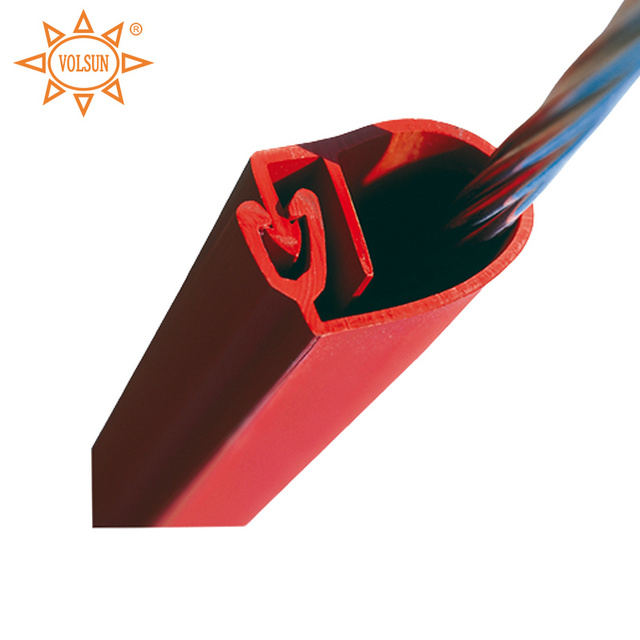

PE overhead lne cover, full name is polyethylene overhead line cover, made of radiation crosslinked polyolefin material, it has excellent electrical and tracking resistance, excellent weather resistance, excellent insulation performance, anti-aging performance, mechanical strength properties, excellent high and low temperature resistance, etc., and they can be used under the condition of -50℃～+125℃ Continuously. The installation is convenient and simple, saving labor and time.
High strength and wear resistance
Long service life, anti-aging, corrosion resistance

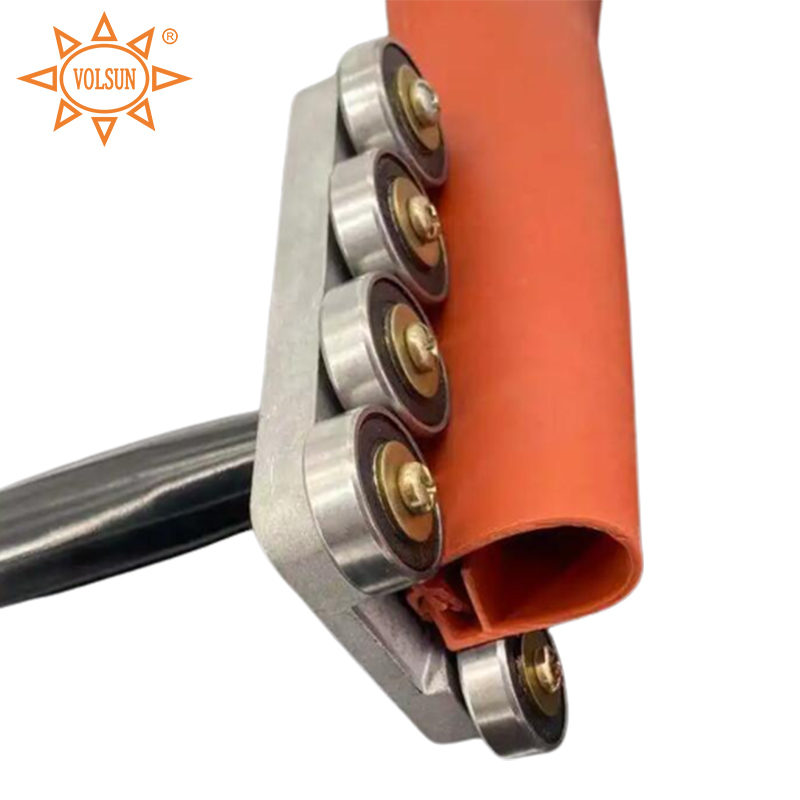

Simple installation, no fire needed, power outage construction time is short
Item | Test method | ≤10kV | ≥35kV |
Tensile strength | GB1040 | ≥12MPa | |
Elongation at break | GB1040 | ≥400% | |
Tensile Strength Change | GB7141/120℃,168hrs | ±20% | |
Rate of change of elongation at break | GB7141/120℃,168hrs | ±20% | |
Breakdown strength | GB1408 | ≥20kV/mm | ≥25kV/mm |
Volume resistivity | GB1410 | ≥1×1013Ω·cm | |
Copper corrosion | ASTMD 2671，120℃,168hrs | No Corrosion | |
Low temperature flexibility | ASTMD 2671，-40℃，4hrs | ||
Size | Voltage (KV) | Conductor Section ( mm2) | Max Conductor O.D.(mm) | Remark |
≤10KV | ||||
Ф14 | 0.38-10 | ≤70 mm2 | 14mm | No sealant in the lock groove |
Ф18 | 0.38-10 | ≤150 mm2 | 18mm | No sealant in the lock groove |
Ф28 | 0.38-10 | 185-240 mm2 | 28mm | No sealant in the lock groove |
Ф38 | 0.38-10 | 300-800 mm2 | 40mm | No sealant in the lock groove |
≥35KV | ||||
Ф14 | 0.38-10 | ≤70 mm2 | 14mm | With sealant in the locking groove |
Ф18 | 0.38-10 | ≤150 mm2 | 18mm | With sealant in the locking groove |
Ф28 | 0.38-10 | 185-240 mm2 | 28mm | With sealant in the locking groove |
Ф38 | 0.38-10 | 300-800 mm2 | 40mm | With sealant in the locking groove |
Remark: Special sizes or colors are available on request.
We all know that product selection is one of the key steps to ensure the successful implementation of the project, especially for insulation protection products in the power industry, such as PE overhead line cover.

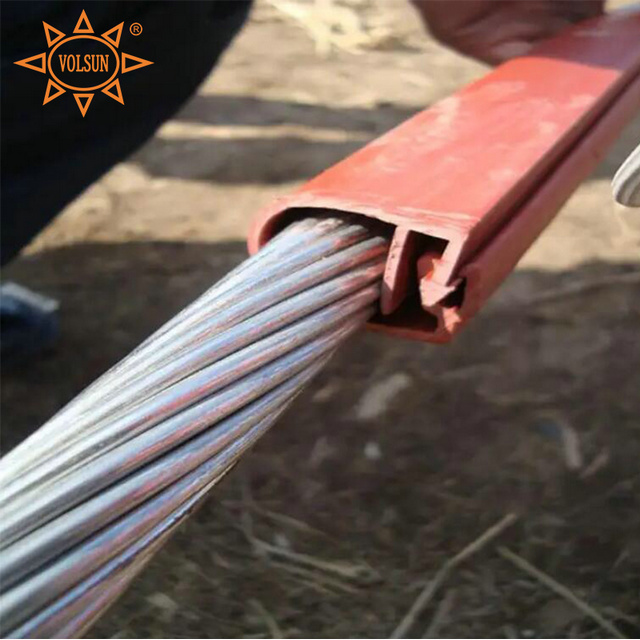

The most important point in selecting PE overhead power line cover is to measure and confirm the outer diameter of the bare conductor to ensure that the inner diameter of the PE overhead line cover matches the outer diameter of the bare conductor. The inner diameter of the insulation overhead line cover should be slightly larger than the conductor diameter to facilitate the installation of the conductor and future maintenance operations.
Contact us freely if any doubts!
