Shrink tubing is an essential component in various electrical and mechanical applications, providing protection, insulation, and strain relief for wires and cables. Selecting the appropriate shrink tubing can be a complex task due to the wide range of materials, sizes, and properties available. This comprehensive guide will help you understand the different types of shrink tubing and the factors to consider when making your selection. Among the popular options are cold shrink tubes and heat shrink tubes, each offering unique advantages for specific applications.
Shrink tubing, also known as shrinkable tubing, is a tube that contracts when exposed to heat or removed from a core, depending on the type. It is widely used to insulate wires, provide abrasion resistance, and protect against environmental factors such as moisture, dust, and chemicals. The two primary types of shrink tubing are heat shrink tubing and cold shrink tubing, each with distinct characteristics and applications.

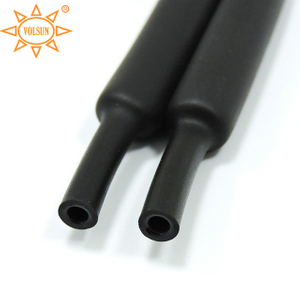

Heat shrink tubing shrinks when heat is applied, typically using a heat gun or oven. It is made from thermoplastic materials like polyolefin, PVC, or fluoropolymers, which have a memory of their original extruded size. When heated, the tubing returns to its original, smaller size, conforming tightly around the substrate.
Heat shrink tubing is ideal for applications requiring a tight seal and high mechanical strength. It offers excellent electrical insulation, strain relief, and protection against abrasion and environmental contaminants. Heat shrink tubing is commonly used in cable terminations, splices, and harnessing in industries such as automotive, aerospace, and telecommunications.
For more information on heat shrink tubing options, explore our selection of high-quality heat shrink tubes designed for various applications.
Cold shrink tubing is made from elastomeric materials like silicone rubber or EPDM that are pre-stretched and held in place by a removable plastic core. Upon removing the core, the tubing contracts to its original size, forming a tight seal without the need for heat. This makes cold shrink tubing an excellent choice for applications where heat guns are impractical or could damage sensitive components.
Cold shrink tubing provides reliable environmental sealing, electrical insulation, and mechanical protection. It is particularly useful in outdoor installations, such as telecom base stations and antenna connections, where moisture ingress can be a concern. The ease of installation and reusability make cold shrink tubing a preferred option for maintenance and repair operations.
Discover our range of silicone rubber cold shrink tubes that offer excellent performance in harsh environments.
Selecting the right shrink tubing involves evaluating several critical factors to ensure optimal performance and longevity. Consider the following aspects when making your decision:
The material of the shrink tubing determines its mechanical properties, environmental resistance, and suitability for specific applications. Common materials include:
Polyolefin: Offers flexibility, flame resistance, and good electrical insulation. Suitable for general-purpose applications.
PVC: Provides high tensile strength and resistance to abrasion, chemicals, and oils. Ideal for automotive and industrial uses.
Fluoropolymers (PTFE, FEP): Deliver excellent chemical resistance, high-temperature performance, and low friction. Used in harsh environments and high-performance applications.
Silicone Rubber: Exhibits excellent thermal stability, flexibility at low temperatures, and weather resistance. Commonly used in outdoor and high-temperature applications.
Shrink ratio refers to the degree to which the tubing will shrink from its expanded size when heat or removal of the core is applied. Common shrink ratios include 2:1, 3:1, and 4:1. A higher shrink ratio allows the tubing to accommodate larger differences between the maximum expanded diameter and the minimum recovered diameter, making it more versatile for covering irregular shapes or connectors.
Assess the environmental conditions the shrink tubing will be exposed to, including temperature extremes, moisture, UV exposure, chemicals, and physical stress. For outdoor or harsh environments, materials like silicone rubber cold shrink tubing provide superior performance due to their resistance to UV radiation, ozone, and temperature fluctuations.
Proper sizing is crucial for effective sealing and insulation. Measure the diameter of the underlying substrate and choose shrink tubing with an appropriate expanded and recovered diameter. Ensure that the tubing has enough clearance to fit over the largest part and will shrink tightly around the smallest part after recovery.
Select shrink tubing that can withstand the operating temperature range of your application. Materials like silicone rubber offer a wide temperature range, typically from -60°C to 200°C, making them suitable for high-temperature environments. Consider the heat required for installation in the case of heat shrink tubing to avoid damaging sensitive components.
Understanding the differences between heat shrink and cold shrink tubing is essential for making an informed choice. Here is a comparison of their key attributes:
| Attribute | Heat Shrink Tubing | Cold Shrink Tubing |
|---|---|---|
| Installation | Requires heat source (heat gun) | No heat required; remove core |
| Material | Thermoplastics (polyolefin, PVC) | Elastomers (silicone rubber, EPDM) |
| Flexibility | Rigid after shrinkage | Remains flexible after installation |
| Reusability | Not reusable | Removable and reusable |
| Applications | General-purpose, indoor | Outdoor, harsh environments |
For applications requiring flexibility, ease of installation, and performance in extreme conditions, silicone rubber cold shrink tubes are often the preferred choice. In contrast, heat shrink tubing is suitable for more controlled environments where heat application is feasible.
Shrink tubing is utilized across various industries and applications. Here are some examples highlighting the versatility of both heat shrink and cold shrink tubing:
In the telecommunications industry, protecting connections from moisture and environmental degradation is critical. Cold shrink tubes are ideal for sealing coaxial connectors and splices on antenna systems. Their ease of installation without heat makes them suitable for fieldwork where power sources may be limited.
Heat shrink tubing is extensively used in automotive wiring harnesses to provide insulation and strain relief. The tubing's ability to conform tightly to connectors and cables ensures reliable performance even under vibration and temperature variations experienced in vehicles.
For high-voltage applications, selecting the appropriate insulation is vital for safety and efficiency. Cold shrink tubes made from silicone rubber offer excellent dielectric properties and can withstand the thermal expansion and contraction that occurs in power systems.
In marine environments, components are exposed to saltwater, UV radiation, and corrosive elements. Cold shrink tubing provides superior sealing and resistance to these harsh conditions, extending the lifespan of electrical systems on ships and offshore platforms.
Budget is always a factor in material selection. While heat shrink tubing is generally more cost-effective upfront, the total cost of ownership should be considered. Cold shrink tubing may have a higher initial price, but savings can be realized through reduced installation time, lower labor costs, and decreased downtime due to its reliability and ease of use. For specific pricing details, you can refer to our cold shrink tube price listings.
Proper installation is critical to ensure that shrink tubing performs as expected. Here are some best practices to follow:
Surface Preparation: Clean the substrate to remove any dirt, grease, or moisture that could impede adhesion or cause corrosion.
Correct Sizing: Verify that the tubing's expanded and recovered diameters are appropriate for the application.
Uniform Heating: For heat shrink tubing, apply heat evenly using a heat gun, moving continuously to prevent overheating or scorching.
Removal of Core: For cold shrink tubing, carefully remove the core without overstretching or damaging the tubing.
Inspection: After installation, inspect the tubing for complete coverage, absence of voids or air pockets, and proper seal.
Choosing the right shrink tubing is imperative for the integrity and longevity of electrical and mechanical systems. By understanding the differences between heat shrink and cold shrink tubing, considering factors such as material composition, environmental conditions, and application requirements, you can make an informed decision that best suits your needs. Whether you opt for a heat shrink tube for general-purpose applications or a silicone rubber cold shrink tube for harsh environments, selecting quality products will ensure optimal performance and reliability.
