DBRS-125H(2X)(3X)
Volsun

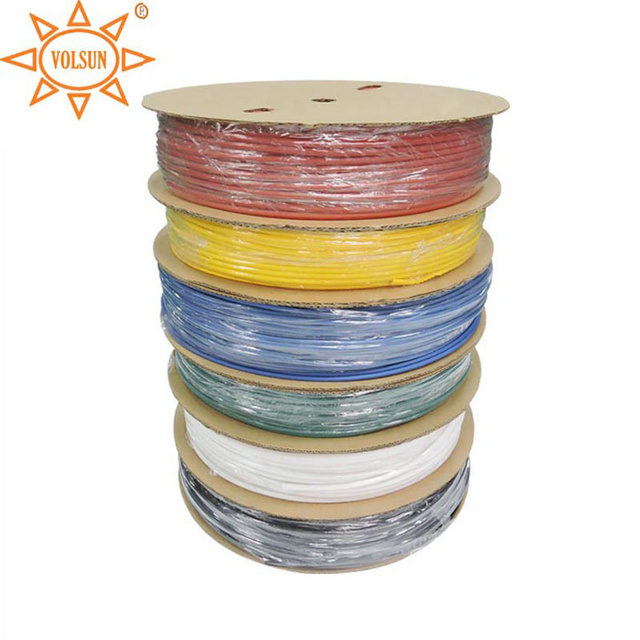

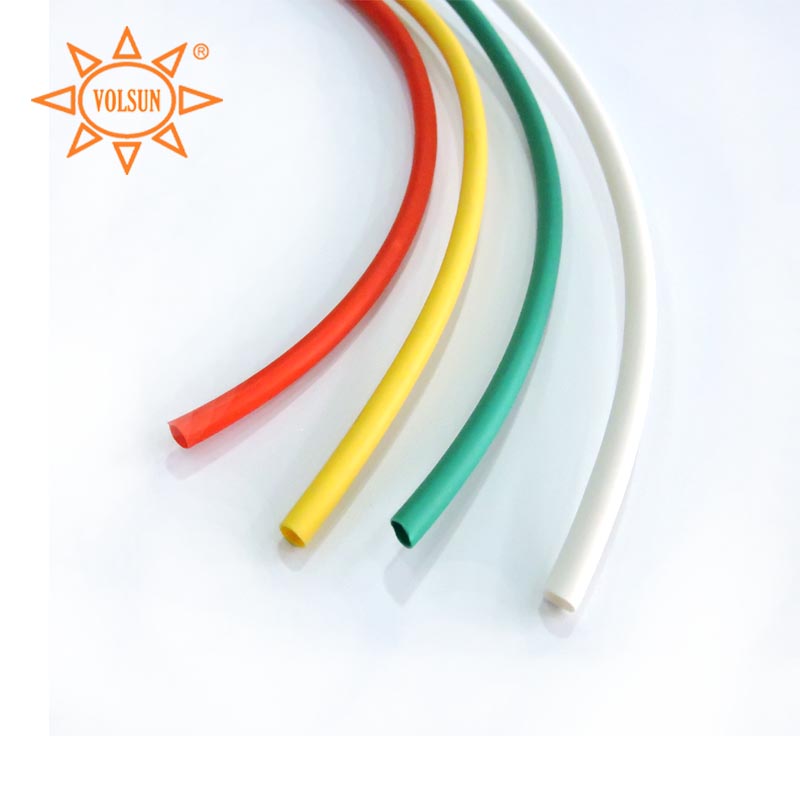

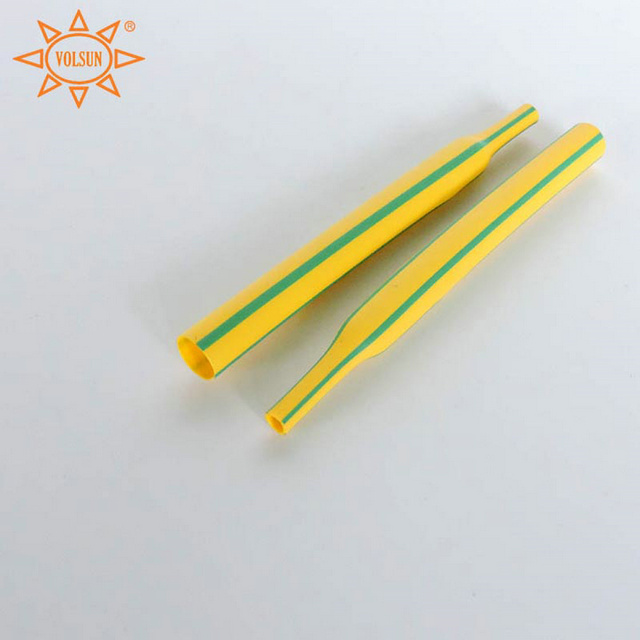

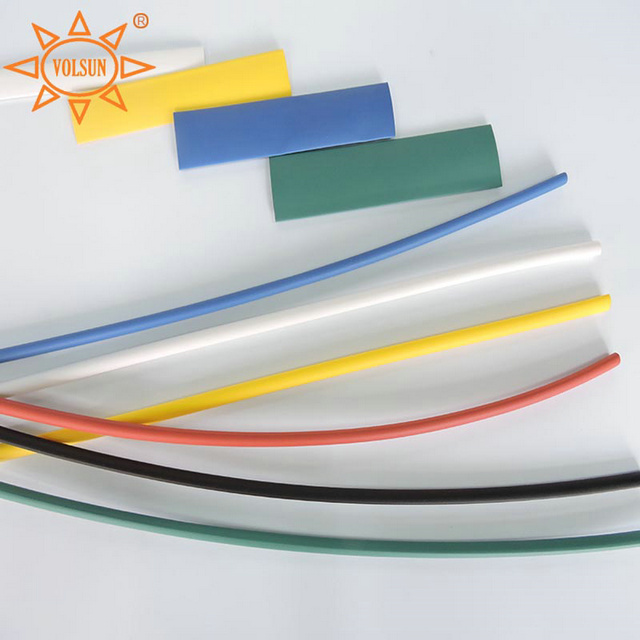

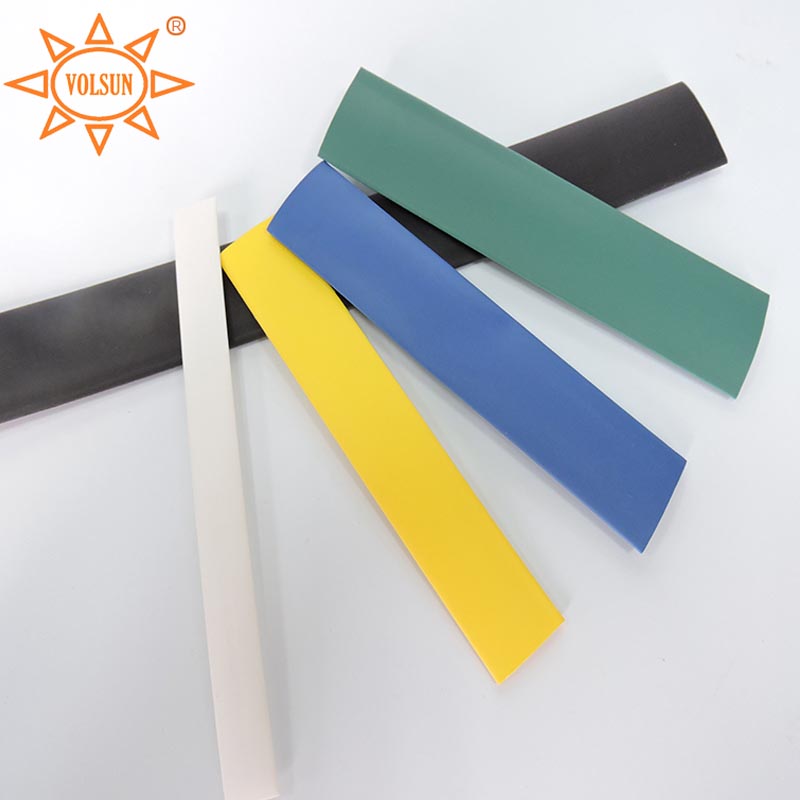

Single wall heat shrink tube, is made of radiation crosslinked polyolefin material, excellent physical, chemical and electrical properties, the main function is the electrical insulation of connecting parts, solder joint corrosion prevention, mechanical protection and wire harness protection, etc., widely used in electronics, communications, machinery and automobile manufacturing and other fields.
Execution standards: UL 224, CAN/CSA C22.2-NO1981.1-99
Heat shrink ratio: 2:1 3:1
Halogen-free, low smoke, non-toxic, soft, non-flame retardant, bright appearance
Shrinkage temperature: 84℃～125℃(Transparent type is 70℃～105℃)
Operating temperature:-55℃～125℃(Transparent type is -55℃～105℃)
Environmental standards: RoHS, IPC/JEDEC-J-STD-709

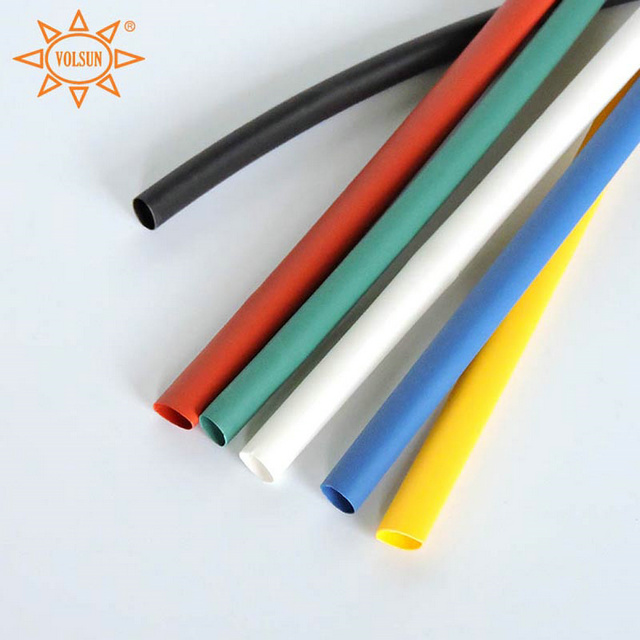

Standard color: Black, white, red, yellow, green, blue, other colors can be customized
Properties | Typical Data | Test Method |
Tensile Strength | ≥10.4MPa | ASTM D 2671 |
Elongation at Break | ≥200% | ASTM D 2671 |
Tensile strength after thermal aging | ≥7.3MPa | 158℃×168h |
Elongation at break after thermal aging | ≥100% | 158℃×168h |
Axial rate of change | -5%～+5% | ASTM D 2671 |
Flame retardancy | VW-1 | ASTM D 2671 C法 |
Withstand voltage (rated voltage 600V) | No breakdown 2500V，1min | UL 224 |
Breakdown strength | ≥15kV/mm | ASTM D 149 |
Volume resistivity | ≥1014Ω.cm | IEC 60093 |
Size(mm) | As Supplied D | After full recovered (mm) | Standard packing (M/Spool) | |
Internal diameter D | Wall thickness W | |||
φ2.5/1.30 | 3.0±0.2 | ≤1.30 | 0.45±0.10 | 400 |
φ3.0/1.50 | 3.5±0.2 | ≤1.50 | 0.45±0.10 | 400 |
φ4.0/2.00 φ4.5/2.30 | 4.5±0.2 | ≤2.00 | 0.45±0.10 | 400 |
5.0±0.2 | ≤2.30 | 0.45±0.10 | 200 | |
φ5.0/2.50 φ5.5/2.75 | 5.5±0.2 | ≤2.50 | 0.56±0.10 | 200 |
6.0±0.2 | ≤2.75 | 0.56±0.10 | 200 | |
φ6.0/3.00 φ7.0/3.50 | 6.5±0.2 | ≤3.00 | 0.56±0.10 | 200 |
7.5±0.3 | ≤3.50 | 0.56±0.10 | 100 | |
φ8.0/4.00 φ9.0/4.50 | 8.5±0.3 | ≤4.00 | 0.56±0.10 | 100 |
9.5±0.3 | ≤4.50 | 0.56±0.10 | 100 | |
φ10/5.00 φ11/5.50 | 10.5±0.3 | ≤5.00 | 0.56±0.10 | 100 |
11.5±0.3 | ≤5.50 | 0.56±0.10 | 100 | |
φ12/6.00 φ13/6.50 | 12.5±0.3 | ≤6.00 | 0.56±0.10 | 100 |
13.5±0.3 | ≤6.50 | 0.70±0.10 | 100 | |
φ14/7.00 φ15/7.50 | 14.5±0.3 | ≤7.00 | 0.70±0.10 | 100 |
15.5±0.4 | ≤7.50 | 0.70±0.10 | 100 | |
φ16/8.00 φ17/8.50 | 16.5±0.4 | ≤8.00 | 0.70±0.10 | 100 |
17.5±0.4 | ≤8.50 | 0.70±0.10 | 100 | |
φ18/9.00 φ20/10.0 | 19.0±0.5 | ≤9.00 | 0.70±0.10 | 100 |
22.0±0.5 | ≤10.0 | 0.80±0.15 | 100 | |
φ22/11.0 φ25/12.5 | 24.0±0.5 | ≤11.0 | 0.80±0.15 | 100 |
26.0±0.5 | ≤12.5 | 0.90±0.15 | 50 | |
φ28/14.0 φ30/15.0 | 29.0±0.5 | ≤14.0 | 0.90±0.15 | 50 |
31.5±1.0 | ≤15.0 | 1.00±0.15 | 50 | |
φ35/17.5 φ40/20.0 | 36.5±1.0 | ≤17.5 | 1.00±0.15 | 50 |
41.5±1.0 | ≤20.0 | 1.00±0.15 | 50 | |
Φ45/22.5 φ50/25.0 | ≥45.0 | ≤22.5 | 1.00±0.15 | 50 |
≥50.0 | ≤25.0 | 1.10±0.15 | 25 | |
φ60/30.0 φ70/35.0 | ≥60.0 | ≤30.0 | 1.20±0.15 | 25 |
≥70.0 | ≤35.0 | 1.30±0.20 | 25 | |
φ80/40.0 φ90/45.0 | ≥80.0 | ≤40.0 | 1.30±0.20 | 25 |
≥90.0 | ≤45.0 | 1.30±0.20 | 25 | |
φ100/50.0 φ120/60.0 | ≥100.0 | ≤50.0 | 1.30±0.20 | 25 |
≥120.0 | ≤60.0 | 1.30±0.20 | 25 | |
φ150/75.0 φ180/90.0 | ≥150.0 | ≤75.0 | 1.30±0.20 | 25 |
≥180.0 | ≤90.0 | 1.30±0.20 | 25 | |
φ210/105.0 φ230/115.0 | ≥210.0 | ≤105.0 | 1.30±0.30 | 25 |
≥230.0 | ≤115.0 | 1.30±0.30 | 25 | |
φ250/125.0 Φ300/150.0 | ≥250.0 | ≤125.0 | 1.30±0.30 | 25 |
≥300.0 | ≤150.0 | 1.30±0.30 | 25 | |
Size(mm) | As supplied D | After full recovered (mm) | Standard packing (M/ Spool) | ||
Internal diameter D | Wall thickness W | ||||
φ1.5/0.5 | ≥1.5 | ≤0.50 | 0.45±0.10 | 200 | |
Φ3.0/1.0 | ≥3.0 | ≤1.00 | 0.55±0.10 | 100 | |
Φ4.5/1.5 | ≥4.5 | ≤1.50 | 0.60±0.10 | 100 | |
Φ6.0/2.0 | ≥6.0 | ≤2.00 | 0.65±0.10 | 100 | |
Φ9.0/3.0 | ≥9.0 | ≤3.00 | 0.75±0.15 | 100 | |
Φ12/4 | ≥12.0 | ≤4.00 | 0.75±0.15 | 100 | |
Φ15/5 | ≥15.0 | ≤5.00 | 0.80±0.15 | 100 | |
Φ18/6 | ≥18.0 | ≤6.00 | 0.85±0.15 | 100 | |
Φ24/8 | ≥24.0 | ≤8.00 | 1.00±0.20 | 50 | |
Φ28/10 | ≥28.0 | ≤10.0 | 1.00±0.20 | 50 | |
Φ30/10 | ≥30.0 | ≤10.0 | 1.15±0.20 | 50 | |
Φ39/13 | ≥39.0 | ≤13.0 | 1.50±0.20 | 50/25 | |
Φ50/16 | ≥50.0 | ≤16.0 | 2.50±0.20 | 25 | |
Φ60/20 | ≥60.0 | ≤20.0 | 2.60±0.20 | 25 | |
Φ70/23 | ≥70.0 | ≤23.0 | 2.60±0.20 | 25 | |
Φ80/26 | ≥80.0 | ≤26.0 | 2.60±0.20 | 25 | |
Φ90/30 | ≥90.0 | ≤30.0 | 2.60±0.20 | 25 | |
Φ100/33 | ≥100.0 | ≤33.0 | 2.60±0.20 | 25 | |
Note: Special sizes & packing are avialble on request.
