TZRS-SIL200(1.7X)
VOLSUN

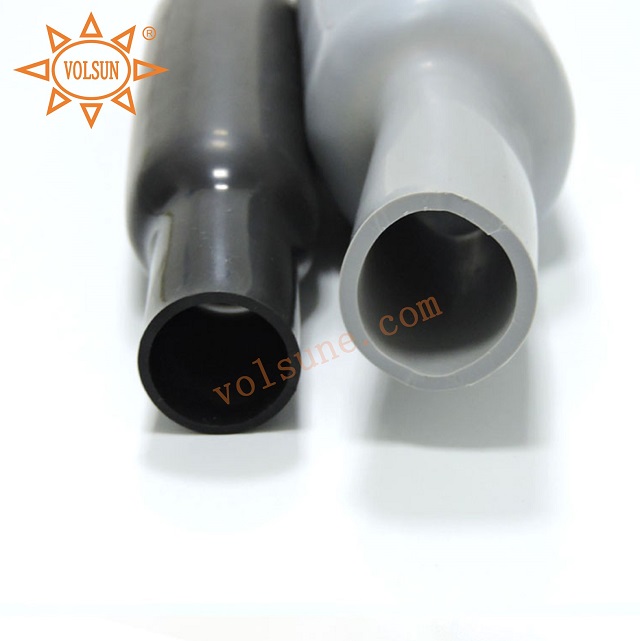

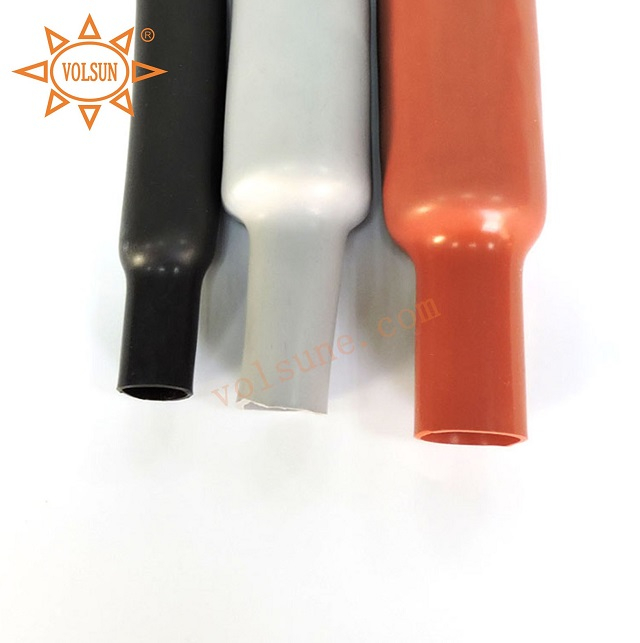

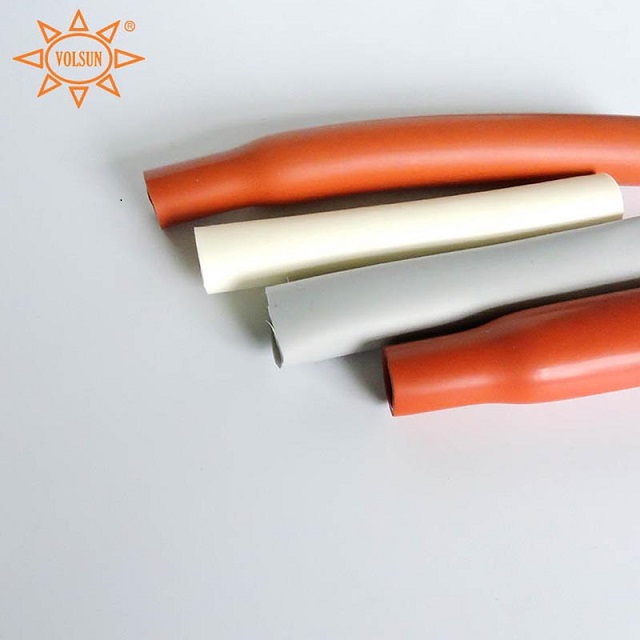

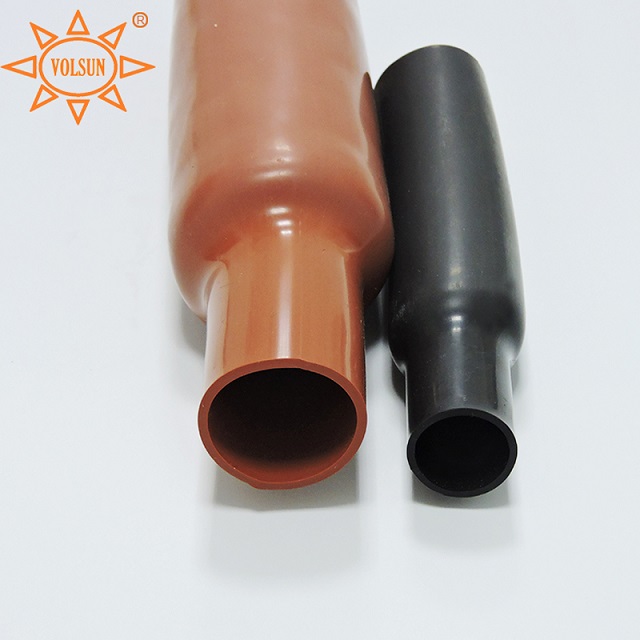

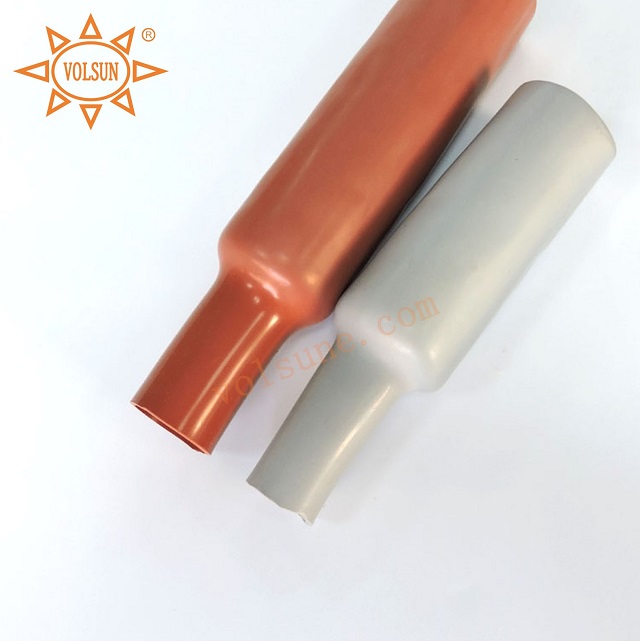

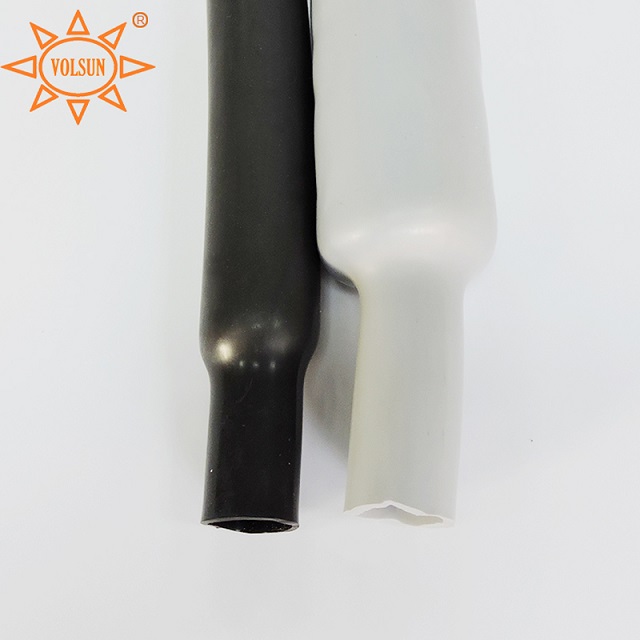

TZRS‑SIL200(1.7X) silicone rubber heat shrink tubing provides effective thermal insulation, mechanical protection and enhanced flame resistance for a wide range of electrical and industrial applications. Its material composition delivers:
Excellent resistance to acid, alkali and solvents, helping maintain performance in chemically harsh environments.
Corona and mould resistance, improving long‑term electrical reliability.
Flexible elasticity for easy installation and stable coverage.
A high level of insulation strength when fully recovered around cables or components.
This tubing is suitable for use in demanding systems such as military vehicles, high‑speed rail equipment, ship electrical systems, electric motors and more, where both electrical safety and environmental durability are required.
| Item | Specification |
|---|---|
| Product Model | TZRS‑SIL200(1.7X) |
| Material | Silicone Rubber + Radiated High‑Polymer Elastomers |
| Heat Shrink Ratio | 1.7:1 |
| Shrink Temperature Range | 90 °C – 170 °C |
| Continuous Operating Temperature | ‑50 °C – 200 °C |
| Tensile Strength | 4.0 MPa |
| Elongation at Break | 150 % |
| Tearing Strength | 7.0 kN/m |
| Dielectric Strength | 20 kV/mm |
| Volume Resistivity | ≥ 2 × 10¹⁴ Ω·cm |
| Flame Retardant Rating | VW‑1 (UL224) |
| Standard Colors | Black, Gray, Rust Red (customizable) |
Highly flame retardant: Rated VW‑1 according to UL224 test standard, offering improved fire safety for electrical assemblies.
Radiation‑modified silicone structure: Combines silicone rubber and elastomeric polymers for enhanced heat and mechanical resistance.
Wide temperature range: Operates in ‑50°C to +200°C environments, suitable for thermal cycling.
Good elasticity and softness: Flexible and easy to install while maintaining long‑term protective performance.
Chemical resistance: Resists acid and alkali corrosion, ozone and environmental ageing.
Corona and mould resistance: Supports electrical insulation integrity in harsh conditions.
Robust electrical insulation: High dielectric strength and volume resistivity help prevent leakage and improve safety.
Multiple sizes: Range of inner diameters available; larger sizes may be supplied in longer pieces for easy handling.
Custom options: Colors and packaging can be tailored for specific project requirements.
TZRS‑SIL200(1.7X) heat shrink tubing is ideal for protecting and insulating electrical connections, cables and components where flame retardancy and environmental resistance are required:
Cable terminal and separation joint protection
Insulation protection for electrical components in vehicles and railcars
Marine and shipboard electrical systems
Insulating motors, generators and industrial circuits
Wired harness and connector protection in harsh conditions
Performance Property | Typical data | Test standard |
Tensile Strength | 4.0MPa | GB/T 528 |
Elongation at Break | 150% | GB/T 528 |
Tearing strength | 7.0kN/m | GB/T 529 |
Volume resistivity | ≥2*1014Ω.cm | ASTM D 876 |
Dielectric strength | 20KV/mm | GB/T 1408 |
Flame retardant rating | VW-1 | UL 224 |
FST526066278 heat shrink tubing is available in multiple sizes. Standard supplied inner diameters and corresponding recovered outer sizes are shown below. Special sizes and packaging are available upon request.
Size | Supplied I.D. (mm) | Full recovered size(mm) | Standard packing (m/roll) | ||
Inner diameter | Wall thickness | ||||
Φ 0.8 | ≥0.8 | 0.5±0.15 | 0.5±0.1 | 0.7±0.15 | |
Φ 1.0 | ≥1.0 | 0.5±0.15 | 0.6±0.1 | 0.7±0.15 | |
Φ1.5 | ≥1.5 | 0.5±0.15 | 0.9±0.2 | 0.7±0.15 | |
Φ 2.0 | ≥2.0 | 0.5±0.15 | 1.2±0.2 | 0.7±0.15 | |
Φ 2.5 | ≥2.5 | 0.5±0.15 | 1.5±0.2 | 0.7±0.15 | |
Φ 3.0 | ≥3.0 | 0.5±0.15 | 1.8±0.2 | 0.8±0.15 | |
Φ 3.5 | ≥3.5 | 0.5±0.15 | 2.1±0.3 | 0.8±0.15 | |
Φ4.0 | ≥4.0 | 0.5±0.15 | 2.4±0.3 | 0.8±0.15 | |
Φ 4.5 | ≥4.5 | 0.5±0.15 | 2.7±0.3 | 0.8±0.15 | |
Φ 5.0 | ≥5.0 | 0.5±0.15 | 3.0±0.3 | 0.8±0.15 | |
Φ 5.5 | ≥5.5 | 0.5±0.15 | 3.3±0.3 | 0.8±0.15 | |
Φ 6.0 | ≥6.0 | 0.5±0.15 | 3.6±0.3 | 0.8±0.15 | |
Φ 6.5 | ≥6.5 | 0.5±0.15 | 3.9±0.3 | 0.8±0.15 | |
Φ 7.0 | ≥7.0 | 0.5±0.15 | 4.2±0.3 | 0.8±0.15 | |
Φ 7.5 | ≥7.5 | 0.5±0.15 | 4.5±0.3 | 0.8±0.15 | |
Φ8.0 | ≥8.0 | 0.6±0.15 | 4.7±0.4 | 1.0±0.2 | |
Φ 8.5 | ≥8.5 | 0.6±0.15 | 5.0±0.4 | 1.0±0.2 | |
Φ9.0 | ≥9.0 | 0.6±0.15 | 5.3±0.4 | 1.0±0.2 | |
Φ9.5 | ≥9.5 | 0.6±0.15 | 5.6±0.4 | 1.0±0.2 | |
Φ10 | ≥10.0 | 1.0±0.2 | 5.9±0.5 | 1.7±0.3 | |
Φ11 | ≥11.0 | 1.0±0.2 | 6.5±0.5 | 1.7±0.3 | |
Φ 7.0 | ≥7.0 | 1.0±0.2 | 7.1±0.5 | 1.7±0.3 | |
Φ 12 | ≥12.0 | 1.0±0.2 | 7.7±0.5 | 1.7±0.3 | |
Φ13 | ≥13.0 | 1.0±0.2 | 8.3±0.5 | 1.7±0.3 | |
Φ14 | ≥14.0 | 1.0±0.2 | 8.9±0.5 | 1.7±0.3 | |
Φ 15 | ≥15.0 | 1.0±0.2 | 9.5±0.5 | 1.7±0.3 | |
Φ 16 | ≥16.0 | 1.0±0.2 | 10.0±0.5 | 1.7±0.3 | |
Φ17 | ≥17.0 | 1.0±0.2 | 10.6±0.5 | 1.7±0.3 | |
Φ18 | ≥18.0 | 1.0±0.2 | 11.2±0.5 | 1.7±0.3 | |
Φ19 | ≥19.0 | 1.0±0.2 | 11.8±1.0 | 1.7±0.3 | |
Φ20 | ≥20.0 | 1.0±0.2 | 12.4±1.0 | 1.7±0.3 | |
Φ21 | ≥21.0 | 1.0±0.2 | 13.0±1.0 | 1.7±0.3 | |
Φ22 | ≥22.0 | 1.0±0.2 | 13.6±1.0 | 1.7±0.3 | |
Φ23 | ≥23.0 | 1.0±0.2 | 14.2±1.0 | 1.7±0.3 | |
Φ24 | ≥24.0 | 1.1±0.3 | 14.7±1.0 | 2.0±0.3 | |
Φ25 | ≥25.0 | 1.1±0.3 | 15.3±1.5 | 2.0±0.3 | |
Φ26 | ≥26.0 | 1.1±0.3 | 15.9±1.5 | 2.0±0.3 | |
Φ27 | ≥27.0 | 1.1±0.3 | 16.5±1.5 | 2.0±0.3 | |
Φ28 | ≥28.0 | 1.1±0.3 | 17.1±1.5 | 2.0±0.3 | |
Φ29 | ≥29.0 | 1.1±0.3 | 17.7±1.5 | 2.0±0.3 | |
Φ30 | ≥30.0 | 1.1±0.3 | 20.6±1.5 | 2.0±0.3 | |
Φ35 | ≥35 | 1.1±0.3 | 23.6±1.5 | 2.0±0.3 | |
Φ40 | ≥40 | 1.1±0.3 | 29.5±3 | 2.0±0.3 | |
Φ50 | ≥47 | 1.5±0.4 | 35.3±3 | 2.5±0.4 | |
Φ60 | ≥57 | 1.5±0.4 | 41.2±3 | 2.5±0.4 | |
Φ70 | ≥67 | 1.5±0.4 | 47±5 | 2.5±0.4 | |
Φ80 | ≥77 | 1.5±0.4 | 53±5 | 2.5±0.4 | |
Φ90 | ≥87 | 1.5±0.4 | 59±5 | 2.5±0.4 | |
Φ100 | ≥97 | 1.5±0.4 | 64.7±5 | 2.5±0.4 | |
Φ110 | ≥107 | 1.5±0.4 | 70.5±5 | 2.5±0.4 | |
Φ120 | ≥117 | 0.5±0.15 | 4.2±0.3 | 0.8±0.15 | |
Note: For non‑standard sizes or packaging length, please contact us.
The ID of maximum continuous length is φ25, and Φ25 or more is 1 meter/pcs.
Prepare surface: Clean the conductor or component surface to remove contaminants before heat shrinking.
Select size: Choose the correct tubing size based on the conductor or part diameter.
Apply heat: Use a heat gun or controlled heating source to evenly shrink the tubing over the target area within the shrink temperature range (90°C ~ 170°C).
Ensure full coverage: Confirm that the tubing has fully recovered and snugly encapsulates the protected area for reliable insulation.
Cooling: Allow to cool naturally before mechanical or electrical service.
Highly flame retardant silicone rubber heat shrink tubing is used to provide insulation, mechanical protection and flame safety for cable joints, electrical components and exposed conductors.
It operates continuously in the range of ‑50°C to +200°C, suitable for harsh operating conditions.
Yes. FST526066278 achieves a VW‑1 flame retardant rating per UL224, indicating high resistance to flame propagation.
With a shrink ratio of 1.7:1, the tubing reduces its diameter when heated to tightly fit over components.
Yes. Special sizes and non‑standard colors can be customized upon request.
It provides insulation, mechanical protection, acid/alkali resistance, corona resistance and anti‑aging performance in demanding environments.
