TZRS-VT200(2X)
VOLSUN

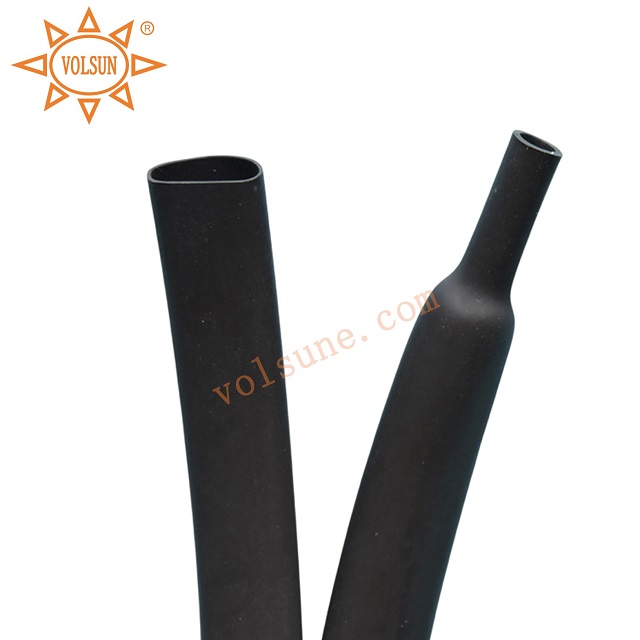

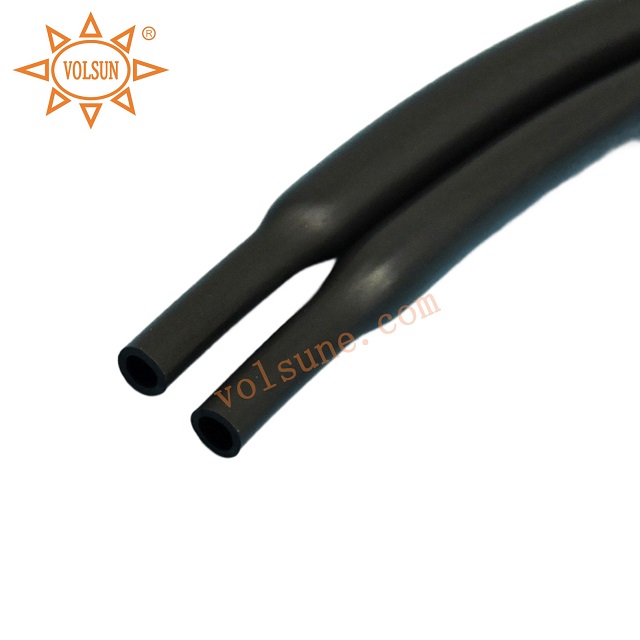

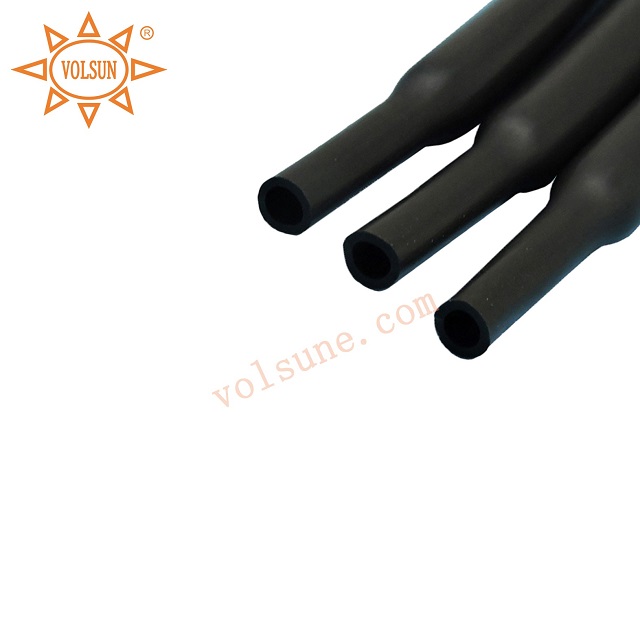

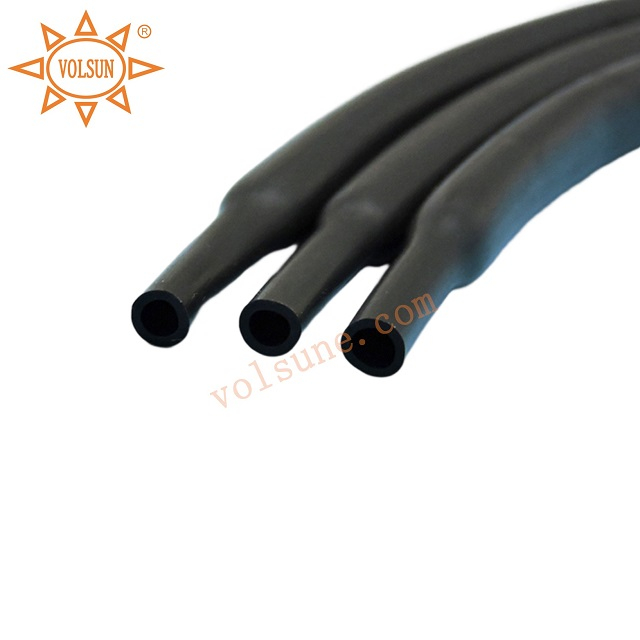

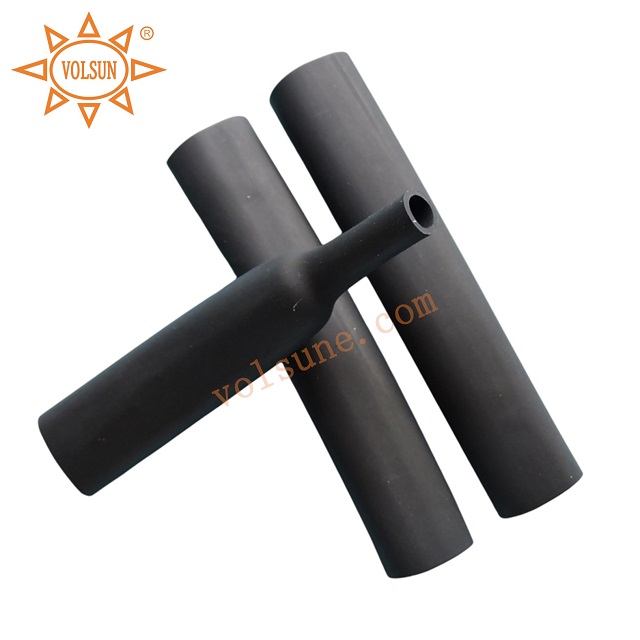

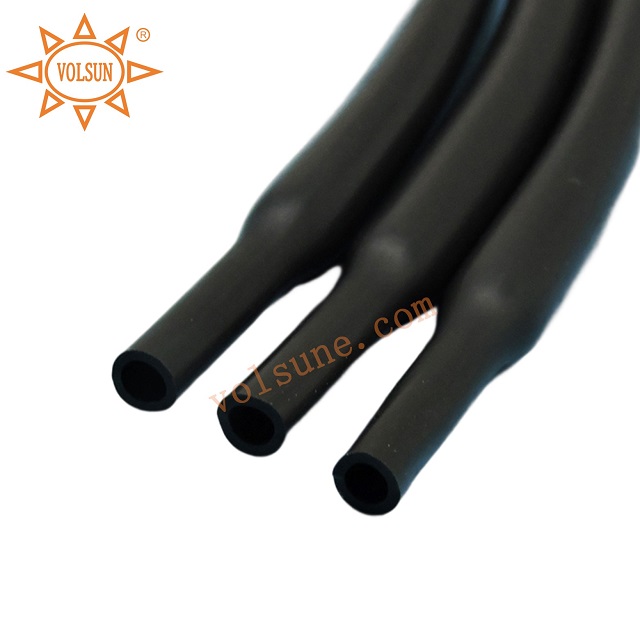

Volsun fluororubber (viton) heat shrink tube, made from a blend of fluororubber and polymer elastomer with radiation modification, with high-temperature resistance up to 200°C and excellent chemical resistance against diesel oil, aviation fuel, and high-temperature fluids, as well as superior abrasion and wear resistance. This viton heat shrink tubing offers outstanding electrical insulation, it's an ideal solution for military vehicles, high-speed trains, ship equipment, and power cable terminals.
Oil and solvent resistant
High flame retardant, soft and elastic
Shrinking temperature: 100℃ ~ 175℃
Operating temperature: -55℃ ~ 200℃
Heat shrink ratio: 2:1
Environmental standard: RoHS
Standard color: black
Properties | Typical Data | Test method |
Tensile Strength | ≥8.2MPa | ASTM D 638 |
Elongation at break | ≥250% | ASTM D 638 |
Elongation at break after heat aging | ≥200% | 250℃×168h |
Flammability | Self-extinguishing in 15 seconds | ASTM D 2671 |
Longitudinal shrinkage | ≤10% | ASTM D 2671 |
Heat shock | No cracks, no dripping | ASTM D 2671 |
Breakdown strength | ≥7.9kV/mm | ASTM D 2671 |
Volume resistivity | ≥109Ω.cm | ASTM D 876 |

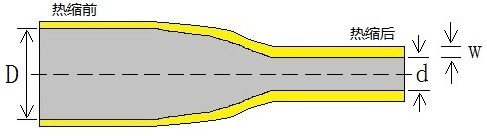

Size | Supplied ID(mm) | After fully recovered（mm） | Standard package | |
Inner diameter | Wall thickness | (M/Roll) | ||
Φ2.4 | ≥2.4 | ≤1.2 | 0.51±0.08 | 200 |
Φ3.2 | ≥3.2 | ≤1.6 | 0.76±0.13 | 100 |
Φ4.8 | ≥4.8 | ≤2.4 | 0.89±0.18 | 100 |
Φ6.4 | ≥6.4 | ≤3.2 | 0.89±0.18 | 50 |
Φ7.9 | ≥7.9 | ≤4.0 | 0.89±0.18 | 50 |
Φ9.5 | ≥9.5 | ≤4.8 | 0.89±0.18 | 50 |
Φ12.7 | ≥12.7 | ≤6.4 | 0.89±0.18 | 50 |
Φ15.9 | ≥15.9 | ≤8.0 | 1.00±0.21 | 30 |
Φ19.1 | ≥19.1 | ≤9.5 | 1.07±0.21 | 30 |
Φ25.4 | ≥25.4 | ≤12.7 | 1.25±0.30 | 30 |
Φ38.1 | ≥38.1 | ≤19.1 | 1.40±0.38 | 30 |
Φ50.8 | ≥50.8 | ≤25.4 | 1.65±0.43 | 25 |
Q1: What temperatures that the viton heat shrink tube can withstand ?
A: The viton heat shrink tube can withstand continuous exposure to high temperatures, up to 200°C or more.
Q2: Is the viton heat shrink tubing resistant to chemicals such as diesel oil and aviation fuel?
A: Yes, it has excellent resistance to a range of chemicals, including diesel oil, aviation fuel, and other high-temperature fluids, etc.
Q3: Where to use?
A: The fluororubber heat shrink tubing is usually used in military vehicles, high-speed trains, separation joints, and aerospace applications field.
Q4: What is the MOQ for Viton heat shrink tube?
A: For standard sizes that are in stock, there is no minimum order quantity requirement. However, for special customizations, please contact our sales team to confirm the MOQ.
Q5: What is the delivery time?
A: The delivery time is around 5 working days. For large quantities, please confirm to our sales team.
