Suzhou Volsun Electronics Technology Co., Ltd.
| Quantity: | |
|---|---|
TZRS-DR150(2X)
VOLSUN

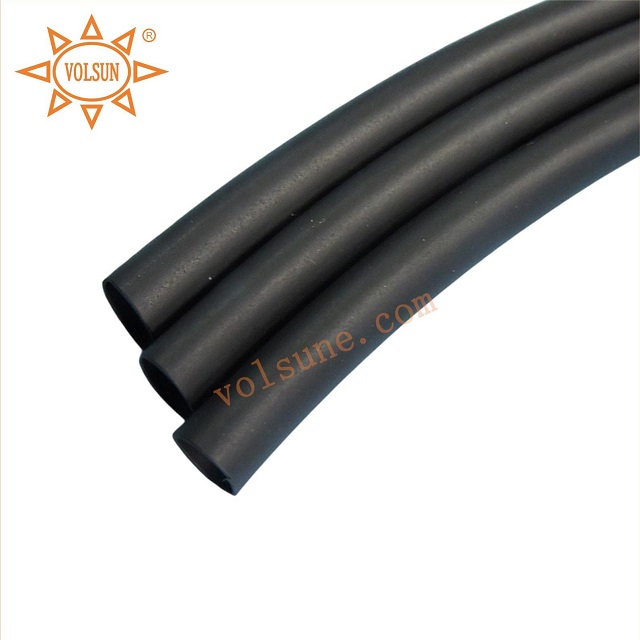

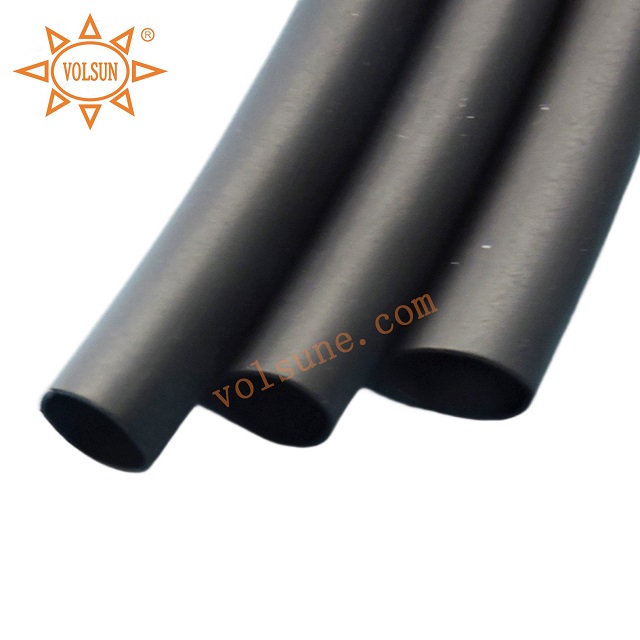

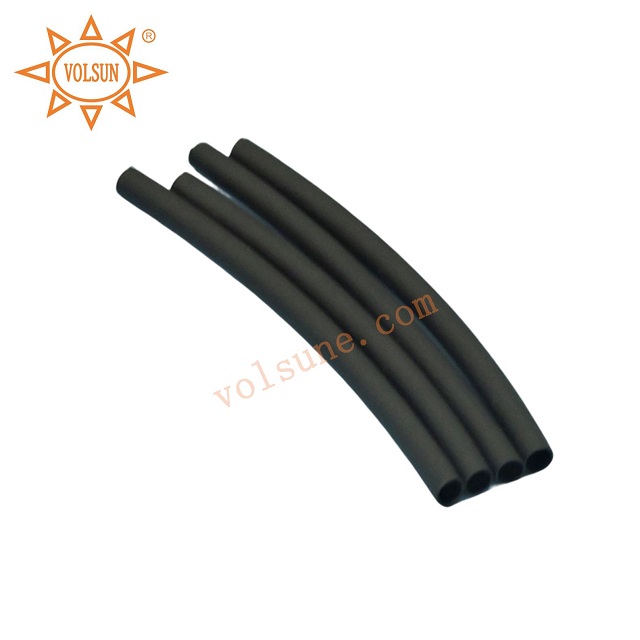

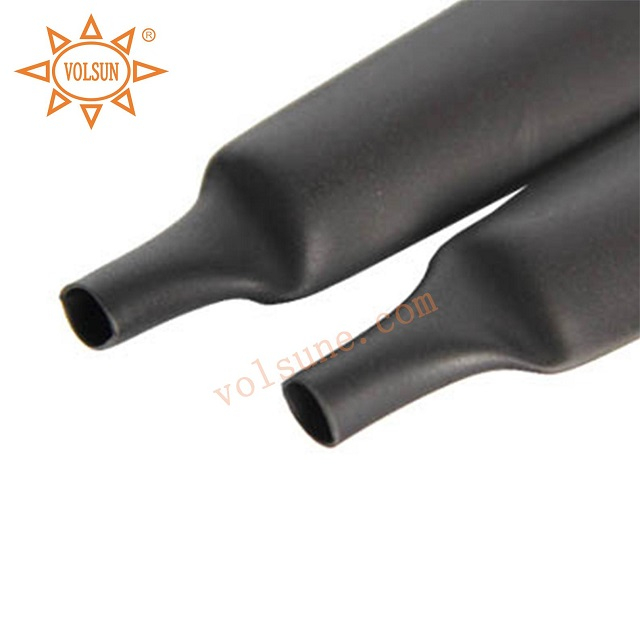

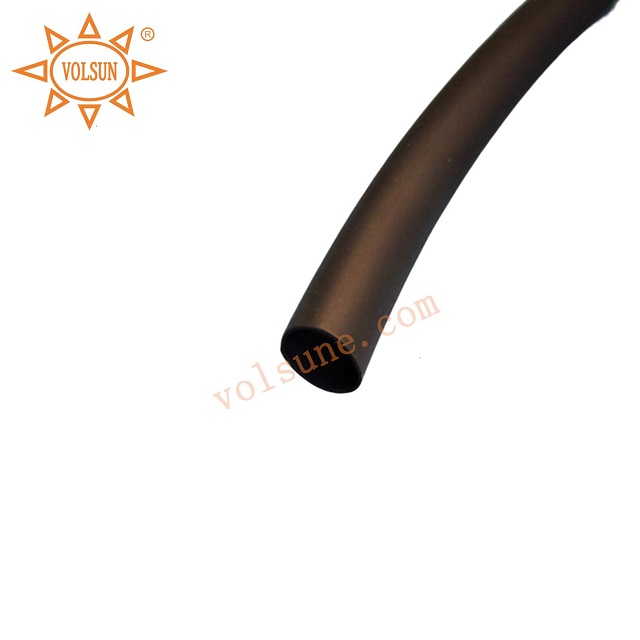

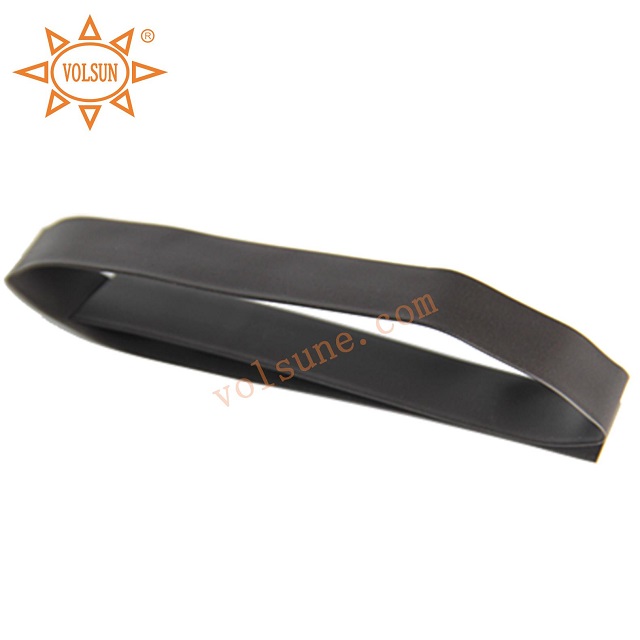

Volsun diesel resistant flexiable elastic heat shrink tube, is made of polymer elastomer radiation modification, can be used at high temperature for a long time, resistant to diesel, jet fuel, high temperature fluid. It can be used for the protection of military vehicles, high-speed rail cars, ship equipment or commercial cable terminals, separation joints, etc. This diesel resistant heat shrink tube is compliance with RoHS environmental standards.
Diesel resistance, long-term high and low temperature resistance, flame retardant
Shrinking temperature: 110℃ ~ 220℃
Operating temperature: -75℃ ~ 150℃
Shrink ratio: 2:1
RoHS Compliance
Standard color: Black
Item | Typical Data | Test Method |
Tensile strength | ≥11.7MPa | ASTM D 2671 |
Elongation at break | ≥400% | ASTM D 2671 |
Tensile strength after heat aging | ≥8MPa | 160℃×168h |
Elongation at break after heat aging | ≥200% | 160℃×168h |
Axial rate of change | -10%～+10% | ASTM D 2671 |
Breakdown strength | ≥11.9kV/mm | IEC 60243 |
Tensile strength after solvent aging | ≥10.3MPa | 24h（Diesel 70℃，Water 70℃， |
Elongation at break after solvent aging | ≥200% | Lubricating oil 100℃） |
Flame retardancy | Pass | ASTM D 2671 PROCEDURE B |
Heat shock | No cracks, no dripping | 215℃×4h |

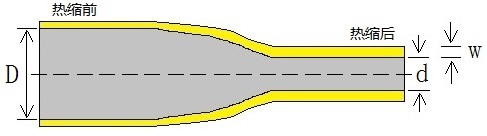

Size | Supplied ID(mm) | After fully recovery (mm) | Standard package (M/Roll) | ||
ID | Wall thickness | ||||
Φ1.6 | ≥1.6 | ≤0.8 | 0.40±0.10 | 200 | |
Φ3.2 | ≥3.2 | ≤1.6 | 0.76±0.15 | 100 | |
Φ4.8 | ≥4.8 | ≤2.4 | 0.84±0.15 | 100 | |
Φ6.4 | ≥6.4 | ≤3.2 | 0.89±0.15 | 100 | |
Φ7.9 | ≥7.9 | ≤4.0 | 0.84±0.15 | 100 | |
Φ9.5 | ≥9.5 | ≤4.8 | 1.02±0.20 | 50 | |
Φ12.7 | ≥12.7 | ≤6.4 | 1.22±0.20 | 50 | |
Φ15.9 | ≥15.9 | ≤8.0 | 1.32±0.25 | 30 | |
Φ19.0 | ≥19.0 | ≤9.5 | 1.45±0.28 | 30 | |
Φ22.0 | ≥22.0 | ≤11.0 | 1.55±0.25 | 30 | |
Φ25.4 | ≥25.4 | ≤12.7 | 1.78±0.28 | 30 | |
Φ30.0 | ≥30.0 | ≤15.0 | 1.80±0.25 | 30 | |
Φ38.1 | ≥38.1 | ≤19.0 | 2.41±0.41 | 30 | |
Φ50.8 | ≥50.8 | ≤25.4 | 2.79±0.41 | 20 | |
Note: Special sizes and packaging can be customized upon request.
