SBRS-110G(3X)(4X)
Volsun

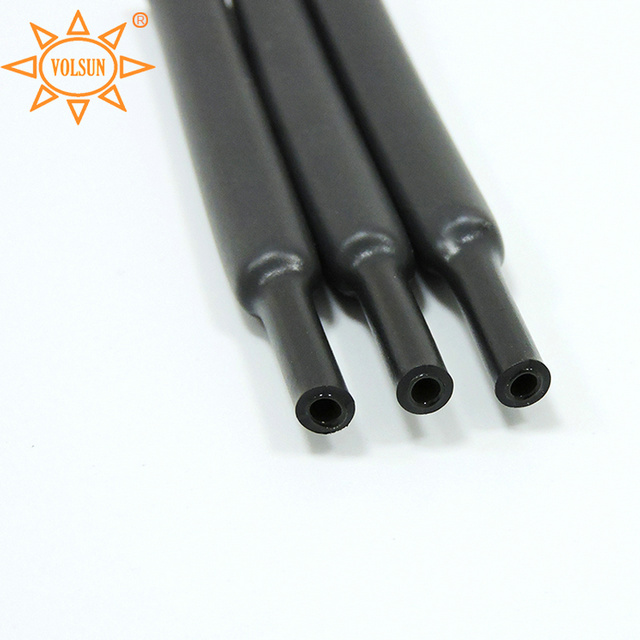

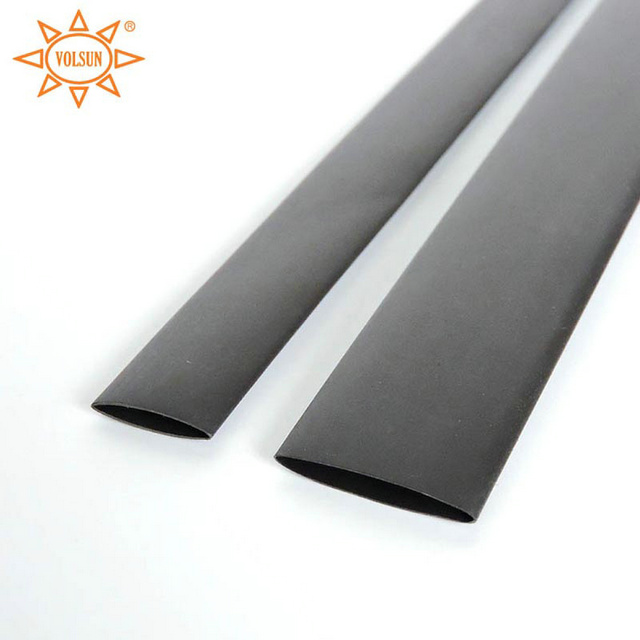

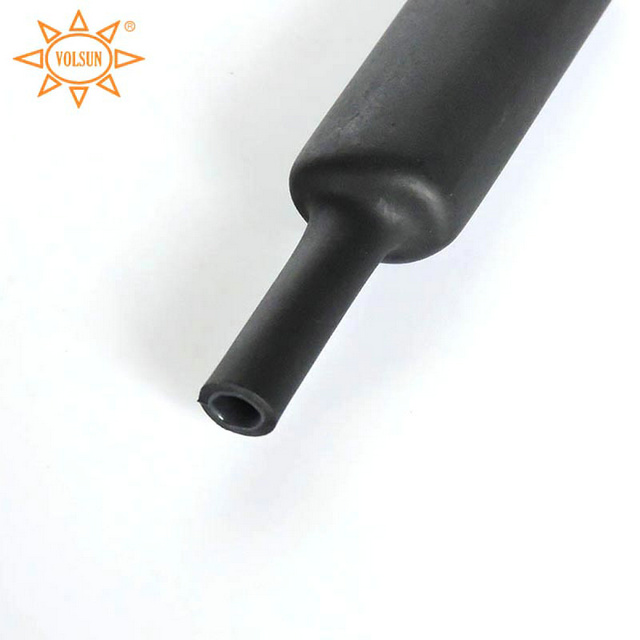

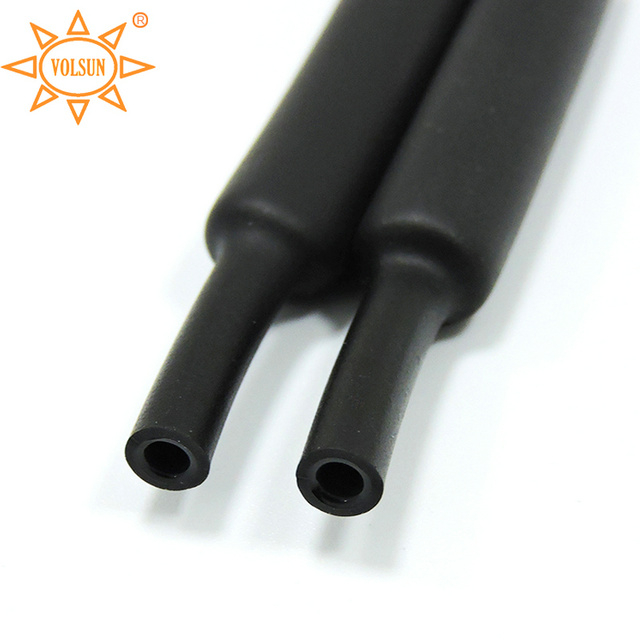

Composed of radiation crosslinked polyolefin material and hot melt adhesive double layer, outer polyolefin. Insulation, flame retardant, excellent physical and chemical electrical properties, the inner layer of hot melt adhesive can buffer mechanical strain and strong sealing. The main function is insulation, sealing, waterproof, anti-corrosion, anti-leakage, etc., widely used in all kinds of wire harness, wire and cable and metal pipe rod sealing insulation, waterproof and anti-corrosion fields.
Heat shrink ratio: 3:1, 4:1
Soft, non-flame retardant, environmental protection, UV resistance
Shrinkage temperature: 70℃ ~ 100℃
Operating temperature: -45℃ ~ 110℃ (transparent type: -45℃ ~ 105℃)
Environmental protection standard: RoHS

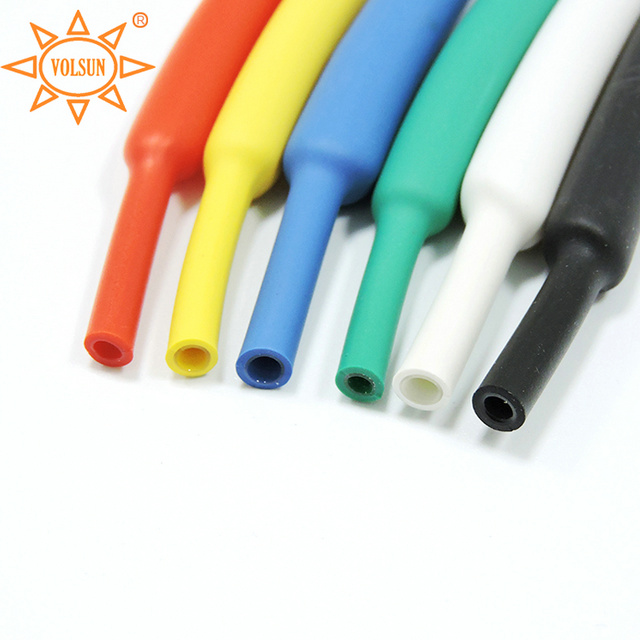

Standard color: black, white, red, yellow, green, blue, transparent, other colors can be customized
Item | Typical value | Test method |
Tensile Strength | ≥12MPa | ASTM D 2671 |
Elongation at Break | ≥300% | ASTM D 2671 |
Tensile strength after thermal aging | ≥7.3MPa | UL224 158℃×168h |
Elongation at break after thermal aging | ≥200% | UL224 158℃×168h |
Breakdown strength | ≥15kV/mm | IEC 243 |
Volume resistivity | ≥1014Ω.cm | IEC 93 |
Item | Typical value | Test method |
Softening point | 95℃ | ASTM E 28 |
Water absorption | ＜0.2% | ASTM D 570 |
Peel strength (adhesive to PE) | ≥120N/25mm | ASTM D 1000 |
Peel strength | ≥80N/25mm | ASTM D 1000 |

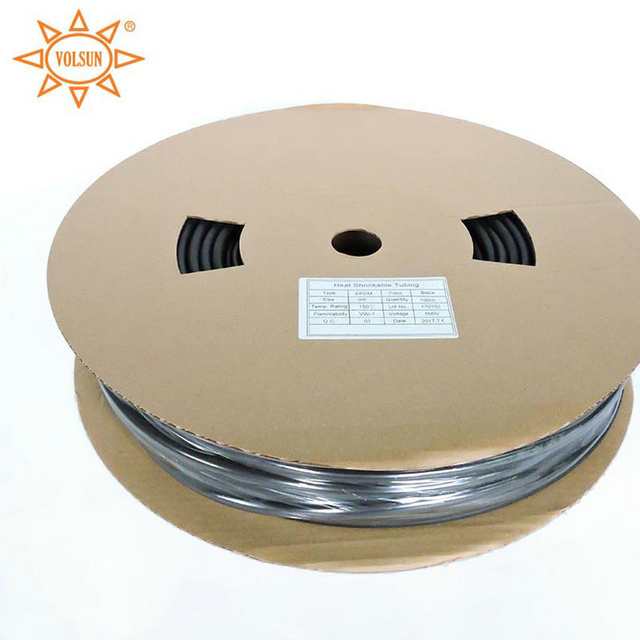

Size | Inner diameter D(mm) | Size after fully shrink(mm) | Standard Packaging | ||
ID d | Average total wall thickness w1 （Black/colored） | Adhesive layer wall thickness w2 （Black/colored） | (Meter/Roll, Mter/PCS) | ||
Φ1.6 | ≥1.6 | ≤0.60 | 0.65±0.15 | 0.30±0.10 | 200/1.22 |
Φ2.4 | ≥2.4 | ≤1.00 | 0.70±0.15 | 0.35±0.10 | 200/1.22 |
Φ3.2 | ≥3.2 | ≤1.30 | 0.90±0.30 | 0.40±0.20 | 200/1.22 |
Φ4.8 | ≥4.8 | ≤1.70 | ≥0.75 / 1.05±0.30 | 0.30±0.10 / 0.40±0.20 | 100/1.22 |
Φ6.4 | ≥6.0 | ≤2.50 | ≥0.75 / 1.25±0.30 | 0.40±0.10 / 0.45±0.20 | 100/1.22 |
Φ7.9 | ≥7.9 | ≤2.80 | ≥0.95 / 1.30±0.30 | 0.40±0.10 / 0.45±0.20 | 100/1.22 |
Φ9.5 | ≥9.0 | ≤3.20 | ≥0.95 / 1.45±0.30 | 0.40±0.10 / 0.50±0.20 | 50/1.22 |
Φ12.7 | ≥12.0 | ≤4.60 | ≥1.10 / 1.70±0.30 | 0.50±0.10 / 0.50±0.20 | 25/1.22 |
Φ15.0 | ≥15.0 | ≤5.60 | ≥1.20 / 1.80±0.30 | 0.50±0.10 / 0.55±0.30 | 25/1.22 |
Φ19.1 | ≥19.0 | ≤6.80 | 1.95±0.30 | 0.50±0.10 / 0.60±0.30 | 25/1.22 |
Φ22.0 | ≥22.0 | ≤7.50 | 1.95±0.30 | 0.60±0.30 | 25/1.22 |
Φ25.4 | ≥24.0 | ≤9.50 | 2.05±0.40 | 0.60±0.10 / 0.60±0.30 | 25/1.22 |
Φ30.0 | ≥30.0 | ≤12.0 | 2.20±0.40 | 0.60±0.10 / 0.65±0.30 | 25/1.22 |
Φ39.0 | ≥39.0 | ≤15.0 | 2.50±0.40 | 0.75±0.30 | 25/1.22 |
Φ50.0 | ≥50.0 | ≤19.0 | 2.80±0.40 | 0.90±0.30 | 25/1.22 |
Φ60.0 | ≥60.0 | ≤23.0 | 2.80±0.40 | 1.00±0.30 | 25/1.22 |
Φ70.0 | ≥70.0 | ≤24.0 | 2.80±0.40 | 1.05±0.40 | 25/1.22 |
Φ80.0 | ≥80.0 | ≤27.0 | 2.90±0.50 | 1.05±0.40 | 25/1.22 |
Φ90.0 | ≥90.0 | ≤33.0 | 2.90±0.50 | 1.05±0.40 | 25/1.22 |
Φ100.0 | ≥100 | ≤34.0 | 3.10±0.50 | 1.00±0.40 | 25/1.22 |
Φ120.0 | ≥120 | ≤42.0 | 3.55±0.50 | 1.20±0.40 | 25/1.22 |
Φ125.0 | ≥125 | ≤42.0 | 3.65±0.50 | 1.20±0.40 | 25/1.22 |
Φ130.0 | ≥130 | ≤44.0 | 3.65±0.50 | 1.20±0.40 | 25/1.22 |
Size | Inner diameter D(mm) | Size after fully shrink(mm) | Standard Packaging | ||
ID d | Average total wall thickness w1 （Black/colored） | Adhesive layer wall thickness w2（Black/colored） | (Meter/Roll, Meter/PCS) | ||
Φ4.0 | ≥4.0 | ≤1.30 | 1.05±0.3 | 0.40±0.3 | 200 |
Φ6.0 | ≥6.0 | ≤1.80 | 1.15±0.3 | 0.40±0.3 | 100 |
Φ8.0 | ≥8.0 | ≤2.30 | 1.55±0.3 | 0.50±0.3 | 100 |
Φ12.0 | ≥12.0 | ≤3.30 | 1.75±0.3 | 0.50±0.3 | 50/1.22 |
Φ16.0 | ≥16.0 | ≤4.30 | 2.00±0.3 | 0.60±0.3 | 25/1.22 |
Φ20.0 | ≥20.0 | ≤5.30 | 2.30±0.4 | 0.60±0.3 | 25/1.22 |
Φ24.0 | ≥24.0 | ≤6.40 | 2.60±0.4 | 0.60±0.3 | 25/1.22 |
Φ32.0 | ≥32.0 | ≤8.50 | 3.00±0.5 | 0.70±0.3 | 25/1.22 |
Φ52.0 | ≥52.0 | ≤14.0 | 3.35±0.5 | 0.70±0.3 | 25/1.22 |
Note: Special sizes & packing are available on request.
