What Is The Difference between Heat Shrink Tubing And Cold Shrink Tubing

During the rapid advancements in electrical infrastructure and technologies, the need for robust and efficient cable management solutions has always been paramount. Both heat shrink tubing and cold shrink tubing emerged as pivotal innovations in this realm. Understanding their differences can help professionals choose the best solution for their specific applications.

Heat shrink tubing and cold shrink tubing are both used to insulate, protect, and seal cables and connections, but they differ significantly in their application methods, material properties, and usage scenarios.

Application Methods

One of the most striking differences between heat shrink and cold shrink tubing lies in how they are applied.

Heat Shrink Tubing:

Installation Process: Heat shrink tubing requires a heat source, typically a heat gun, to shrink the tubing around the cable. The tubing, made of thermoplastic material, contracts when exposed to heat, forming a tight fit.

Requirements: This method necessitates access to electricity and specialized equipment, which may not always be feasible in remote or confined locations.

Time and Skill: A certain level of skill and caution is required to evenly and adequately heat the tubing without causing damage to the cable or the tubing itself.

Cold Shrink Tubing:

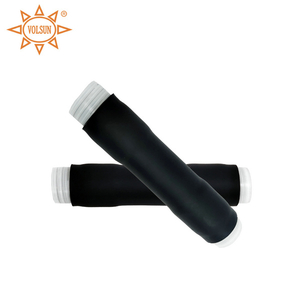

Installation Process: Cold shrink tubing, on the other hand, is pre-stretched and held in an expanded state by an inner core. The core is removed when the tubing is in place, allowing it to contract and form a seal around the cable.

Requirements: No additional tools or heat sources are needed, making it exceptionally convenient for diverse environments, especially where accessing a power source might be challenging.

Time and Skill: Installation is generally quicker and simpler, requiring less skill and reducing the risk of installation errors.

Material Properties

The material properties of heat shrink and cold shrink tubing also differentiate their functional characteristics.

Heat Shrink Tubing:

Material Composition: Typically made from polyolefin or PVC, heat shrink tubing offers good electrical insulation and resistance to chemicals and abrasion.

Flexibility and Durability: The material tends to be stiffer once shrunk, which can offer a more rigid protective layer for the cable.

Shrink Ratio: Heat shrink tubing is available in various shrink ratios (e.g., 2:1, 3:1, 4:1), indicating how much the tubing will reduce in size relative to its original diameter.

Cold Shrink Tubing:

Material Composition: Cold shrink tubing is usually made from silicone rubber or EPDM (ethylene propylene diene monomer) rubber, providing excellent flexibility and environmental resistance.

Flexibility and Durability: The material remains elastic and pliable after shrinking, which can be beneficial for applications requiring movement or vibration.

Waterproofing and Sealing: Its exceptional elastic memory ensures a consistent and secure seal, which is highly effective at keeping out moisture and contaminants.

Usage Scenarios

Both types of tubing are used across a variety of industries, but each has scenarios where it particularly excels.

Heat Shrink Tubing:

Telecommunications and Electronics: Often used in telecommunications equipment, circuit boards, and wire harnesses due to its excellent insulation properties.

Aerospace and Military: Valued in these sectors for its reliability and performance under extreme conditions.

Cold Shrink Tubing:

Outdoor and Industrial Applications: Preferred for outdoor electrical installations and industrial machinery where exposure to harsh weather conditions and chemicals is common.

Utility and Electrical Sector: Widely used for insulating power cables and connectors in utility services because of its ease of application and reliability in waterproofing.

Safety Considerations

Heat Shrink Tubing:

Heat Application Risks: The use of heat introduces potential risks, including burns, fire hazards, and damage to sensitive components if not managed carefully.

Environmental Constraints: Not ideal in environments with flammable materials or where heat cannot be safely applied.

Cold Shrink Tubing:

Reduced Risk: Eliminates the hazards associated with using open flames or heat sources, making it safer to use in a wider range of environments, including hazardous locations.

Installation Hazards: Virtually no risk during installation, further simplifying the process and enhancing safety protocols.

Conclusion

Choosing between heat shrink tubing and cold shrink tubing depends on the specific requirements of your project. While heat shrink tubing is an excellent choice for applications requiring rigid protection and is versatile enough for many environments, cold shrink tubing offers unparalleled ease of installation, safety, and performance in harsh conditions.
