Halogen-free Environmentally Friendly Heat Shrinkable Cable Identification Tube for Wire Harness

Halogen-free Environmentally Friendly Heat Shrinkable Cable Identification Tube for Wire Harness

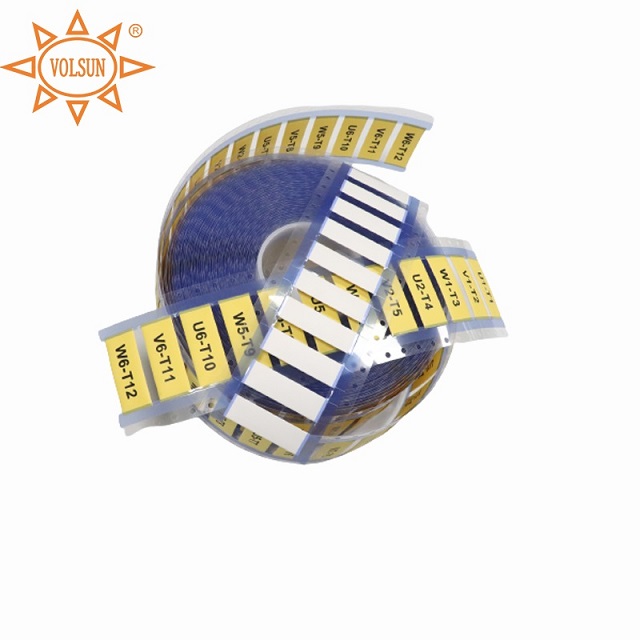

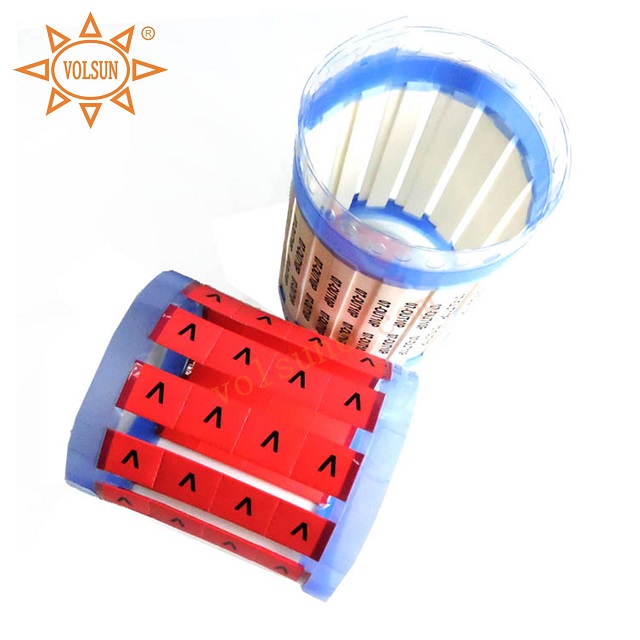

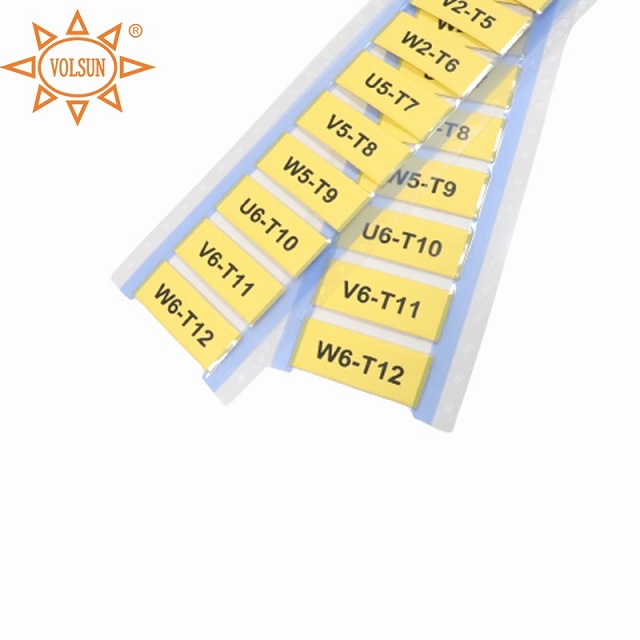

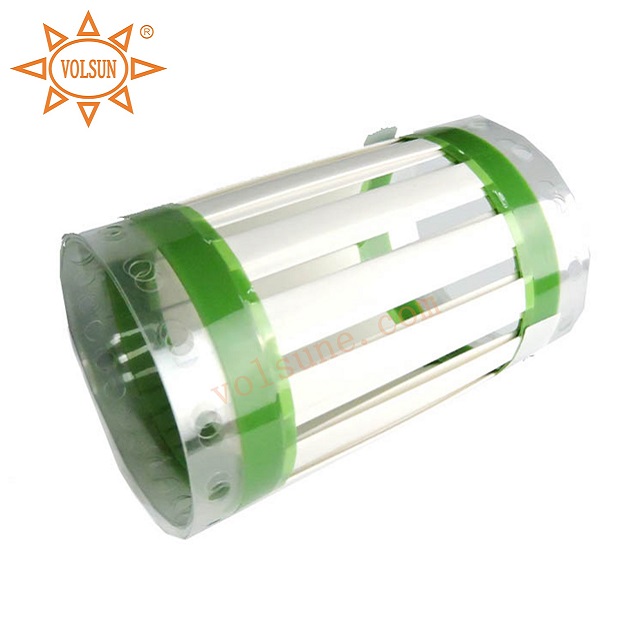

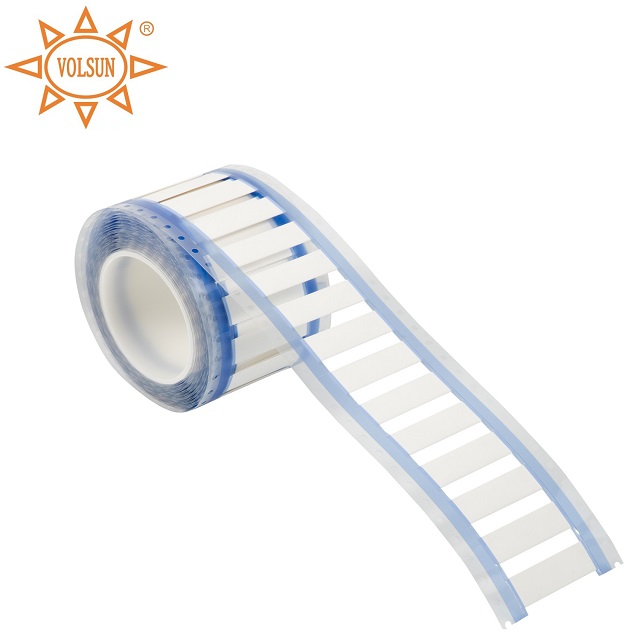

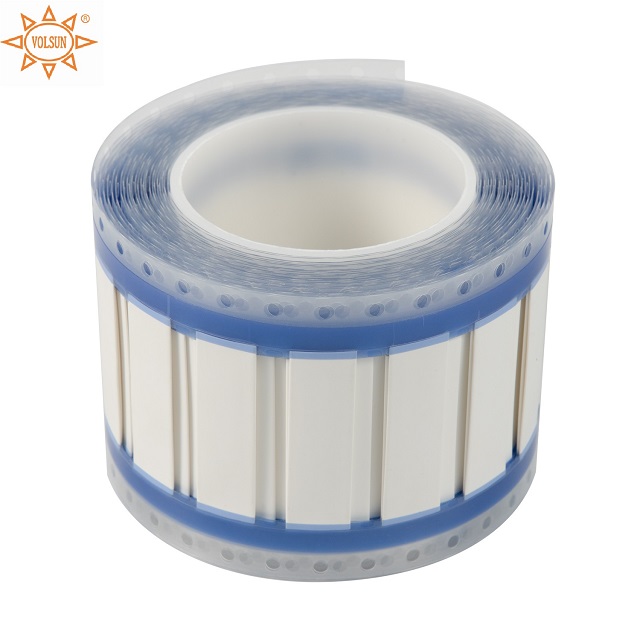

Volsun cable identification heat shrinkable tube is high flame retardant and rated temperature 125℃. We also produce oil resistant heat shrink cable mark sleeve as required. We provide printing service for cable identification heat shrinkable tube based on your needs. Special colors are also available on request.

Quantity:
Availability:





Inquire Add to Basket

Model:
MS-VLU
Brand:
VOLSUN

Description

Volsun cable identification heat shrinkable tubes are designed for special requirements of cable marking for rail transit such as high-speed rail, subway and EMU, it is made of cross-linked environmentally friendly polyolefin heat shrink material. Meet the requirements of ASTM D 2671B, meet the German DIN 5510, British BS 6853 standard. There are two types of fit type and continuous type and two shrinkage ratios of 2:1 and 3:1 for users to choose. The product printing has excellent abrasion resistance and wear resistance, and even if it encounters the erosion of cleaning agents or military fuel before and after heat shrink, the color code fastness still meets the requirements of the U.S. military standard SAE-AS 81531 and MIL-STD-202F/215J to maintain the permanent identification effect.

Halogen-free Heat Shrink Identification Tube Cable Marker Heat Shrink Sleeve Cable Identification Heat shrink Tube Environmentally Friendly Identification Heat Shrink Sleeve Halogen-free Cable Marker Heat Shrinkable Tube Heat Shrink Cable Identification Tubes Cable Identification Tube for Wire Harness

Related Products

Halogen-free Environmentally Friendly Printable PE Cable Identification Tags for Cable Harness

Volsun Electrical Insulation Non-flame Retardant Silicone Rubber Self-fusing Tape

Waterseal Insulated Mastic Adhesive Tape Butyl Rubber Waterproof Mastic Tape

High Temperature Resistant Diesel Resistant Viton Heat Shrink Tube for Vehicles

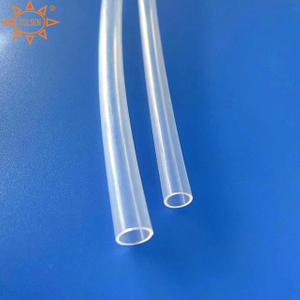

Wear Resistant & Corrosion Resistant FEP Heat Shrink Tubing FEP Heat Shrinkable Sleeve for Motor

Related News

content is empty!

Specifications			Typical data	Test standard
Item	unit	status	Typical data	Test standard
Tensile strength	Mpa	Before aged	≥10.3	ISO 37 158℃，168h
Tensile strength	Mpa	After aged	≥6.9
Elongation at break	%	Before aged	≥200
Elongation at break	%	After aged	≥100
Thermal shock	-	Before aged	No cracks, no sticky flow, no dripping	twine specified shaft diameter，225℃,4h
Withstand voltage	V	Before aged	2500V，No breakdown in 60 seconds	UL 224
Breakdown strength	NV/m	Before aged	≥19.7	IEC 60243 158℃,168h
Breakdown strength	NV/m	After aged	≥15.8	IEC 60243 158℃,168h
Volume resistivity	Ω.cm	Before aged	≥10¹⁴	IEC 60093
Water absorption	%	Before aged	≤1.0	ASTM D 570
Bare copper corrosion	-	Before aged	No corrosion	23℃,Rh 95±5%,24h 175℃,16h
Low bending flexibility	-	Before aged	No cracks	twine specified shaft diameter，-55℃,1h
Flame retardancy	-	Before aged	S3	DIN 5510-2
Smoke diffusion level	-	Before aged	SR2	DIN 5510-2
Drip grade	-	Before aged	ST2	DIN 5510-2
Color code scratch-resistant	-	Before aged	Eraser 20 times, clearly identifiable	SAE-AS81531
The color code is solvent resistant	-	Before aged	Soak for 1 minute 10 times, repeat 3 times, clearly identifiable	MLT-STD-202

Specifications			Typical data	Test standard
Item	unit	status	Typical data	Test standard
Tensile strength	Mpa	Before aged	≥10.3	ISO 37 158℃，168h
Tensile strength	Mpa	After aged	≥6.9
Elongation at break	%	Before aged	≥200
Elongation at break	%	After aged	≥100
Thermal shock	-	Before aged	No cracks, no sticky flow, no dripping	twine specified shaft diameter，225℃,4h
Withstand voltage	V	Before aged	2500V，No breakdown in 60 seconds	UL 224
Breakdown strength	NV/m	Before aged	≥19.7	IEC 60243 158℃,168h
Breakdown strength	NV/m	After aged	≥15.8	IEC 60243 158℃,168h
Volume resistivity	Ω.cm	Before aged	≥10¹⁴	IEC 60093
Water absorption	%	Before aged	≤1.0	ASTM D 570
Bare copper corrosion	-	Before aged	No corrosion	23℃,Rh 95±5%,24h 175℃,16h
Low bending flexibility	-	Before aged	No cracks	twine specified shaft diameter，-55℃,1h
Flame retardancy	-	Before aged	S3	DIN 5510-2
Smoke diffusion level	-	Before aged	SR2	DIN 5510-2
Drip grade	-	Before aged	ST2	DIN 5510-2
Color code scratch-resistant	-	Before aged	Eraser 20 times, clearly identifiable	SAE-AS81531
The color code is solvent resistant	-	Before aged	Soak for 1 minute 10 times, repeat 3 times, clearly identifiable	MLT-STD-202

Code for order	Before shrink size（mm）					After shrink size（mm）
	ID1	Flattened width G		Double layer wall thickness H		ID2	Single layer wall thickness H
MS-VLU-2X-1.6-	2.00±0.20		3.7±0.3		0.48±0.10	≤0.79		0.45±0.06
MS-VLU-2X-2.4-	2.79±0.20		5.0±0.3		0.48±0.10	≤1.18		0.49±0.06
MS-VLU-2X-3.2-	3.64±0.23		6.3±0.4		0.48±0.10	≤1.59		0.51±0.06
MS-VLU-2X-4.8-	5.26±0.25		8.9±0.4		0.49±0.10	≤2.36		0.54±0.06
MS-VLU-2X-6.4-	6.92±0.28		11.5±0.4		0.50±0.10	≤3.18		0.56±0.06
MS-VLU-2X-9.5-	10.2±0.32		16.7±0.5		0.51±0.11	≤4.75		0.59±0.06
MS-VLU-2X-12.7-	13.5±0.36		21.8±0.6		0.52±0.11	≤6.35		0.60±0.07
MS-VLU-2X-19-	20.1±0.40		32.2±0.6		0.53±0.11	≤9.53		0.62±0.07
MS-VLU-2X-25-	26.7±0.45		42.5±0.7		0.55±0.12	≤12.7		0.63±0.07
MS-VLU-2X-38-	39.8±0.51		63.2±0.8		0.57±0.12	≤19.1		0.64±0.07
MS-VLU-2X-51-	53.0±0.56		83.9±0.9		0.58±0.13	≤25.4		0.64±0.08
MS-VLU-2X-76-	79.4±0.56		125.3±1.0		0.59±0.13	≤38.1		0.64±0.09

Code for order	Before shrink size（mm）					After shrink size（mm）
	ID1	Flattened width G		Double layer wall thickness H		ID2	Single layer wall thickness H
MS-VLU-3X-1.6-	2.00±0.20		3.7±0.3		0.47±0.10	≤0.53		0.52±0.06
MS-VLU-3X-2.4-	2.79±0.20		5.0±0.3		0.47±0.10	≤0.79		0.57±0.06
MS-VLU-3X-3.2-	3.64±0.23		6.3±0.4		0.48±0.10	≤1.06		0.61±0.06
MS-VLU-3X-4.8-	5.26±0.25		8.9±0.4		0.49±0.10	≤1.59		0.67±0.06
MS-VLU-3X-6.4-	6.92±0.28		11.5±0.4		0.50±0.10	≤2.36		0.71±0.06
MS-VLU-3X-9.5-	10.2±0.32		16.7±0.5		0.52±0.11	≤3.18		0.77±0.06
MS-VLU-3X-12.7-	13.5±0.36		21.8±0.6		0.53±0.11	≤4.75		0.80±0.07
MS-VLU-3X-19-	20.1±0.40		32.2±0.6		0.55±0.11	≤6.35		0.84±0.07
MS-VLU-3X-25-	26.7±0.45		42.5±0.7		0.56±0.12	≤8.47		0.86±0.07
MS-VLU-3X-38-	39.8±0.51		63.2±0.8		0.57±0.12	≤12.9		0.89±0.07
MS-VLU-3X-51-	53.0±0.56		83.9±0.9		0.57±0.13	≤17.2		0.90±0.08
MS-VLU-3X-76-	79.4±0.56		125.3±1.0		0.59±0.13	≤25.8		0.92±0.09

Code for order	Before shrink size（mm）					After shrink size（mm）
	ID1	Flattened width G		Double layer wall thickness H		ID2	Single layer wall thickness H
MS-VLU-2X-1.6-	2.00±0.20		3.7±0.3		0.48±0.10	≤0.79		0.45±0.06
MS-VLU-2X-2.4-	2.79±0.20		5.0±0.3		0.48±0.10	≤1.18		0.49±0.06
MS-VLU-2X-3.2-	3.64±0.23		6.3±0.4		0.48±0.10	≤1.59		0.51±0.06
MS-VLU-2X-4.8-	5.26±0.25		8.9±0.4		0.49±0.10	≤2.36		0.54±0.06
MS-VLU-2X-6.4-	6.92±0.28		11.5±0.4		0.50±0.10	≤3.18		0.56±0.06
MS-VLU-2X-9.5-	10.2±0.32		16.7±0.5		0.51±0.11	≤4.75		0.59±0.06
MS-VLU-2X-12.7-	13.5±0.36		21.8±0.6		0.52±0.11	≤6.35		0.60±0.07
MS-VLU-2X-19-	20.1±0.40		32.2±0.6		0.53±0.11	≤9.53		0.62±0.07
MS-VLU-2X-25-	26.7±0.45		42.5±0.7		0.55±0.12	≤12.7		0.63±0.07
MS-VLU-2X-38-	39.8±0.51		63.2±0.8		0.57±0.12	≤19.1		0.64±0.07
MS-VLU-2X-51-	53.0±0.56		83.9±0.9		0.58±0.13	≤25.4		0.64±0.08
MS-VLU-2X-76-	79.4±0.56		125.3±1.0		0.59±0.13	≤38.1		0.64±0.09

Halogen-free Environmentally Friendly Heat Shrinkable Cable Identification Tube for Wire Harness

Description

Description

Features

Features

Technical performance

Technical performance

2:1 Dimensions

3:1 Dimensions

2:1 Dimensions

3:1 Dimensions

Packing Reference (Customization packing available)

Packing Reference (Customization packing available)

Related Products

Related News

Subscribe To Our Newsletter

QUICK LINKS

PRODUCTS

CONTACT INFO

Item	Size	VLA（PCS/ROLL）		VLA(C)
		210 carton	146 carton	Simple packing 450 paper plate		hardcover 203 plastic plate
		2X/3X		2X	3X	2X	3X
1	Φ1.6	2500	250	150	150	25	30
2	Φ2.4	2500	250	150	150	25	30
3	Φ3.2	2000	250	150	150	25	30
4	Φ4.8	2000	250	150	150	25	30
5	Φ6.4	1500	250	150	150	25	30
6	Φ9.5	1000	250	150	150	25	30
7	Φ12.7	500	250	150	150	25	30
8	Φ19.0	500	250	150	150	25	30
9	Φ25.0	500	250	100	100	25	30
10	Φ38.0	250	250	100	100	25	30
11	Φ51.0	250	250	100	100	25	30
12	Φ76.0	250	250	100	100	-	-
