Is Heat Shrink Tubing an Insulator?

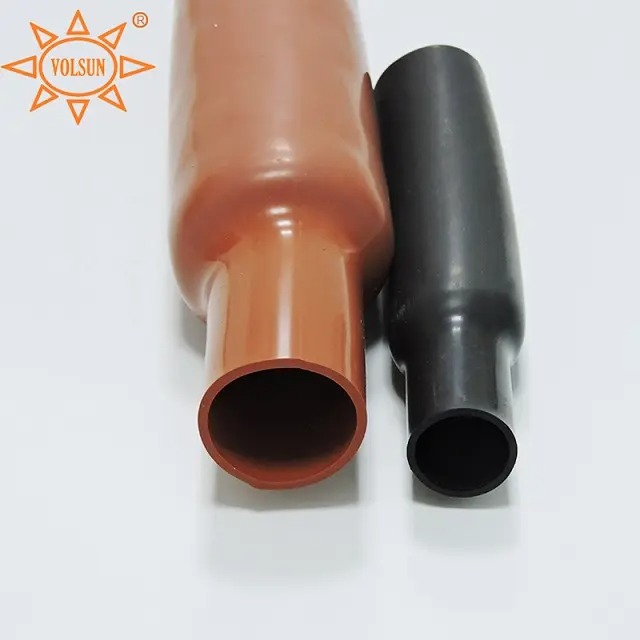

A heat shrink tube is a versatile thermoplastic tubing designed to shrink in diameter when exposed to heat, forming a tight seal over the components it covers. This process not only protects wires and cables but also provides mechanical support, strain relief, and moisture resistance. But one of its most essential and frequently asked characteristics is whether it acts as an insulator—especially in electrical and electronic applications.

Manufactured from materials such as polyolefin, PVC, PTFE, or fluoropolymer, heat shrink tubing is available in various shrink ratios (e.g., 2:1, 3:1, 4:1) to accommodate different diameter sizes before and after heating. The inner layer of some shrink tubing also contains a heat-activated adhesive for enhanced sealing capabilities. This makes it highly applicable in environments requiring high electrical reliability and resistance to environmental stress.

When heated—usually with a heat gun or specialized oven—the tubing contracts to fit snugly over wires, joints, terminals, and connectors. During this transformation, the tube adapts to the underlying shape and forms a durable, protective shell. But beyond its mechanical properties, what truly makes heat shrink tubing indispensable in electrical work is its excellent insulating capability.

Is Heat Shrink Tubing Really an Electrical Insulator?

The short answer is: Yes, heat shrink tubing is an insulator. But the longer explanation delves into why and how it achieves this function.

Heat shrink tubing insulates electrical components by forming a non-conductive barrier around them. Most types of shrink tubing are made from materials that have high dielectric strength, which means they can resist electric fields without breaking down. For example, polyolefin—a commonly used material in shrink tubing—can have dielectric strengths ranging from 15 kV/mm to 25 kV/mm, depending on the thickness and formulation.

By covering exposed wires or connections, heat shrink tubing helps prevent electrical shorts, reduces the risk of arcing, and safeguards users from accidental contact with live wires. It is especially crucial in environments where wires may come in contact with moisture, dust, or other conductive contaminants.

Moreover, heat shrink tubing doesn't just stop current flow—it also withstands a wide range of temperatures, chemicals, and UV radiation, making it a comprehensive solution for insulation in both indoor and outdoor settings.

Comparison Table: Heat Shrink Tubing vs. Other Insulation Methods

As the table illustrates, heat shrink tubing outperforms many other insulation methods in several key areas, especially when long-term reliability and safety are critical. It's not just about covering wires—it's about protecting systems and lives.

Types of Heat Shrink Tubing and Their Insulation Properties

There are many different types of heat shrink tubes, each with varying insulating capabilities based on the material composition and application scenario.

• Polyolefin Heat Shrink Tubing: Offers excellent electrical insulation, flexibility, and resistance to chemicals and UV. It’s the most widely used and reliable form for general-purpose electrical insulation.

• PVC Heat Shrink Tubing: Often used for color coding and insulation. While cost-effective, it may not withstand high temperatures as well as polyolefin.

• PTFE or FEP Tubing: These high-performance fluoropolymer tubes offer exceptional heat resistance (up to 260°C) and chemical inertness but are typically more expensive and used in highly specialized environments.

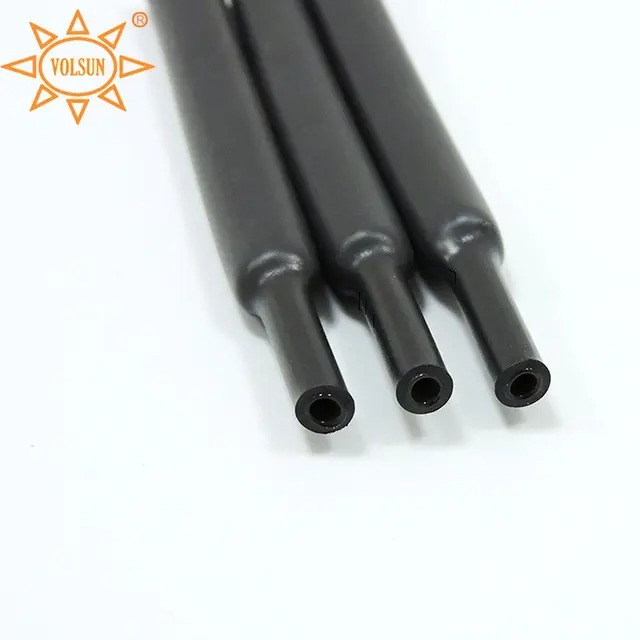

• Adhesive-Lined (Dual-Wall) Tubing: Ideal for sealing against water and contaminants. The adhesive adds another layer of insulation and bonding, making it particularly useful for outdoor and marine applications.

Understanding these variations is crucial when choosing the right insulating heat shrink tubing for a specific task. In applications like aerospace, automotive, telecommunications, and renewable energy, the wrong insulation could lead to catastrophic failures. Always verify the voltage rating, shrink ratio, and operating temperature before use.

How to Properly Use Heat Shrink Tubing for Maximum Insulation?

Using heat shrink tubing correctly is essential to achieve its full insulating potential. Here's a step-by-step guide to ensure maximum protection:

1. Measure and Cut: Select a heat shrink tube with a shrink ratio suitable for your wire or cable. Cut it about 20–30% longer than the area to be covered to account for shrinkage.

2. Position It Correctly: Slide the tubing over the section that needs insulation before connecting terminals or applying solder.

3. Apply Heat Evenly: Use a heat gun (not a lighter or open flame) to distribute heat evenly. Begin in the center and move outwards to prevent air bubbles and ensure a tight seal.

4. Check the Seal: After cooling, inspect the tubing. It should fit tightly with no gaps or cracks. Adhesive-lined tubing should show evidence of melted glue for waterproofing.

When properly applied, heat shrink tubing creates a seamless, insulating jacket that can last for decades—even in harsh conditions. Poor application, on the other hand, can lead to insufficient insulation or early failure.

FAQs About Heat Shrink Tubing as an Insulator

Q1: Can I use heat shrink tubing in high-voltage applications?
A1: Yes, but you must choose tubing specifically rated for high voltage. Look for dielectric strength ratings on the product datasheet.

Q2: Is all heat shrink tubing waterproof?
A2: Not necessarily. Only dual-wall tubing with adhesive lining offers complete moisture sealing.

Q3: How thick should the tubing be for good insulation?
A3: Thicker tubing generally offers better insulation, but the choice should also depend on voltage requirements and flexibility needs.

Q4: Can heat shrink tubing be reused?
A4: No. Once shrunk, the tube cannot be reshaped or reused.

Q5: Does heat shrink tubing resist chemicals and oils?
A5: Most polyolefin and fluoropolymer-based tubes offer excellent chemical resistance, but always check the specifications before use.

Conclusion

Heat shrink tubing is more than just an insulator. It’s a multifunctional component that provides electrical insulation, mechanical protection, moisture sealing, and environmental resistance. When installed correctly, it acts as a reliable barrier against electric shocks, short circuits, and corrosion—all while maintaining a professional, tidy appearance for wiring assemblies.

Whether you're wiring a household outlet or building an aerospace control panel, choosing the right heat shrink tube can significantly influence the durability and safety of your project. So yes, heat shrink tubing is an insulator—and an indispensable one in the world of modern electronics and electrical systems.
