FST6030SI
VOLSUN
The VOLSUN VS-RD Series Carbon Fiber Conductive Brush Shaft Grounding Ring is designed to prevent electrical corrosion in motors and associated equipment by providing a low-resistance pathway for shaft currents. Composed of conductive fibers and durable metal, it directs harmful currents away from sensitive motor bearings, protecting them from damage. This is particularly crucial in high-speed motor applications, where shaft currents can cause bearing wear, vibration, and even motor failure.
Manufactured to high standards, the VS-RD Series is durable and resistant to extreme temperatures (up to 210°C). It undergoes rigorous testing, including fiber pull-off force and salt spray resistance, ensuring long-term reliability. Customizable to fit various shaft diameters, this grounding ring is an essential solution for high-performance equipment, providing reliable protection and ensuring smooth, efficient operation.

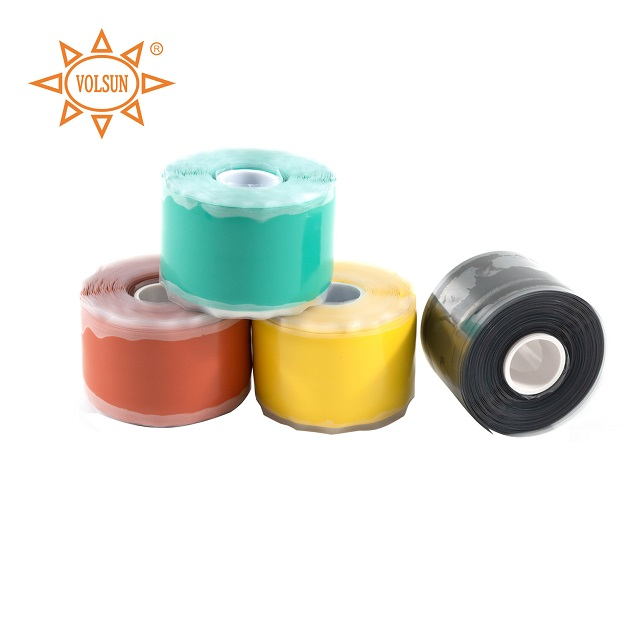

● Self-Fusing Technology: Bonds to itself without adhesives, ensuring a secure, tight seal that remains intact over time.
● Durability: Resistant to extreme temperatures, UV radiation, oils, solvents, and acids, making it perfect for use in harsh environments.
● Electrical Insulation: Provides reliable electrical insulation, preventing short circuits and electrical failures in high-voltage applications.
● UV Resistance: Built to resist UV exposure, making it ideal for outdoor installations.
● Versatility: Suitable for a variety of applications, including cable joints, connectors, and electrical terminations, as well as emergency repairs for hoses and pipes.
● Ease of Application: The tape requires no adhesive, is easy to install, and creates a waterproof, airtight seal upon stretching.
Item | Typical Data | Test Standard |
Tensile Strength | ≥3.5MPa | GB/T 528-2009 |
Elongation at break | ≥200% | GB/T 528-2009 |
Self-adhesive | >3.5N/cm | ASTM D2148 |
Flame Retardancy | V-0 | UL94 |
Dielectric strength | ≥22kV/mm | GB/T1408.1-2006 |
Volume resistivity | ≥1.3×1014Ω·m | GB/T 31838.3-2019 |
Size | Width(mm) | Thickness(mm) | Package(M/Roll) |
20*0.8 | 20±2.0 | 0.8±0.08 | 5/ customized |
25*0.5 | 25±2.0 | 0.5±0.08 | 5/ customized |
25*0.8 | 25±2.0 | 0.8±0.08 | 5/ customized |
25*1.0 | 25*1.0 | 1.0±0.08 | 5/ customized |
30*1.5 | 30±2.0 | 1.5±0.08 | 5/ customized |
50*0.5 | 50±2.0 | 0.5±0.08 | 5/ customized |
50*0.8 | 50±2.0 | 0.8±0.08 | 5/ customized |
50*1.0 | 50±2.0 | 1.0±0.08 | 5/ customized |
80*0.8 | 80±2.0 | 0.8±0.08 | 5/ customized |
100*0.5 | 100±2.0 | 0.5±0.08 | 5/ customized |
100*0.8 | 100±2.0 | 0.8±0.08 | 5/ customized |
● Electrical Insulation: Ideal for insulating cables, busbars, and electrical connections in substations, power plants, and other electrical systems.
● Cable Termination: Provides a secure, waterproof seal for cable ends, preventing moisture intrusion and corrosion.
● Connector Protection: Protects electrical connectors from environmental exposure, ensuring long-term operational reliability.
● Outdoor Applications: Perfect for outdoor electrical installations, where UV resistance and durability are required.
Q1:What is the maximum temperature that the tape can withstand?
The tape is designed to operate effectively over a wide temperature range and is suitable for a variety of environmental conditions.
Q2:Does the tape require adhesive when applied?
No, the tape is self-melting and will bond to itself after stretching, without the need for adhesive.
Q3:Is the tape suitable for outdoor use?
Yes, the tape is UV resistant and resists degradation caused by UV exposure, making it suitable for outdoor use.
Q4:Can the tape be used in high voltage applications?
Yes, the tape provides reliable electrical insulation to prevent short circuits and electrical failures.
Q5:How should the tape be applied?
Stretch the tape over the desired area; the tape will self-melt to form a seamless, adhesive-free seal.
Why Choose Volsun?
Our Silicone Rubber Self Fusing Tape is engineered to meet the rigorous demands of both industrial and outdoor applications, offering superior protection against electrical faults, moisture, and extreme environmental conditions. Each roll is manufactured in compliance with international standards, including UL94 V0 flame retardancy and high dielectric strength. We provide customizable options for sizes, lengths, and packaging to meet specific application needs. With our ISO9001 certification and stringent quality control processes, we ensure that every product meets the highest standards of performance and reliability. By choosing VOLSUN, you are choosing a trusted partner dedicated to providing high-performance products and exceptional service, backed by years of industry expertise.
