Suzhou Volsun Electronics Technology Co., Ltd.
| Quantity: | |
|---|---|
MPRS-1KV
VOLSUN

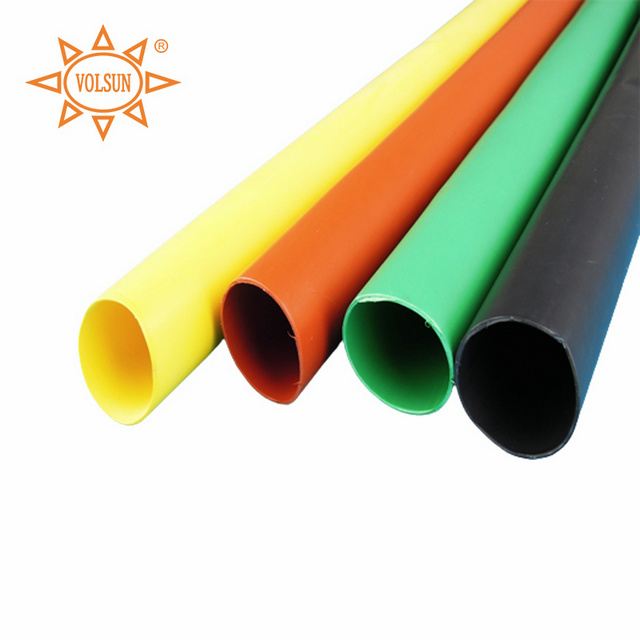

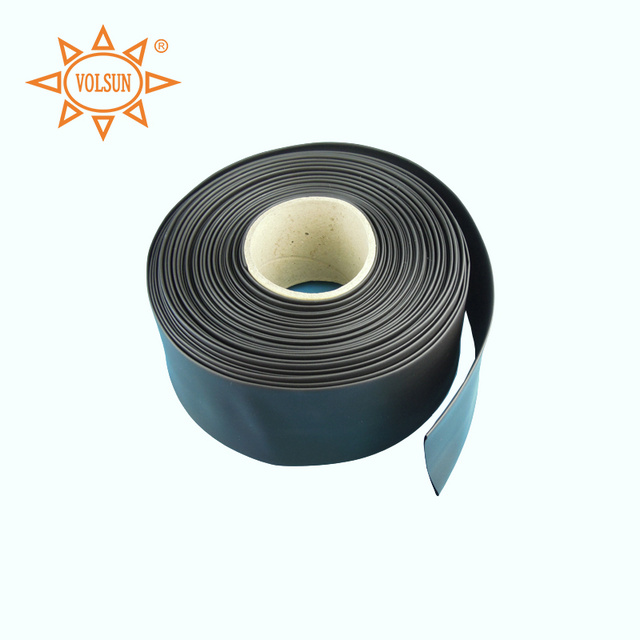

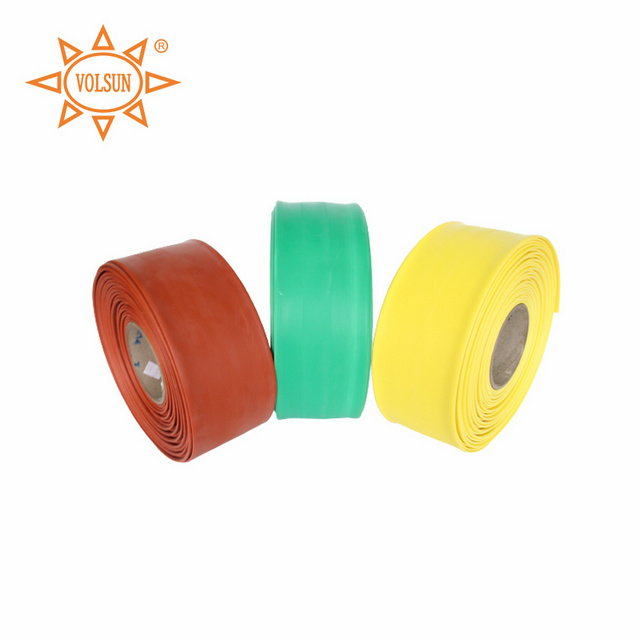

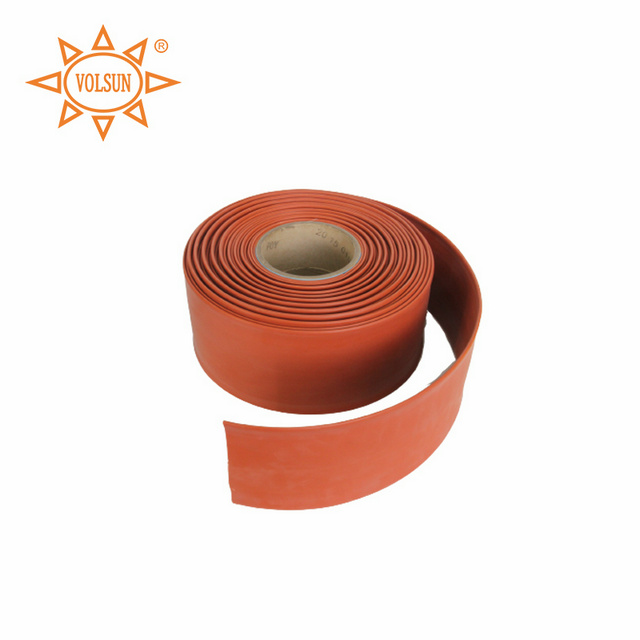

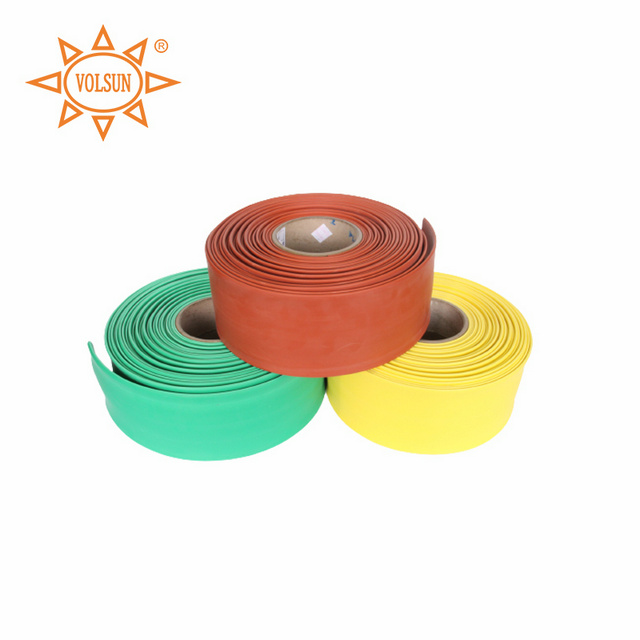

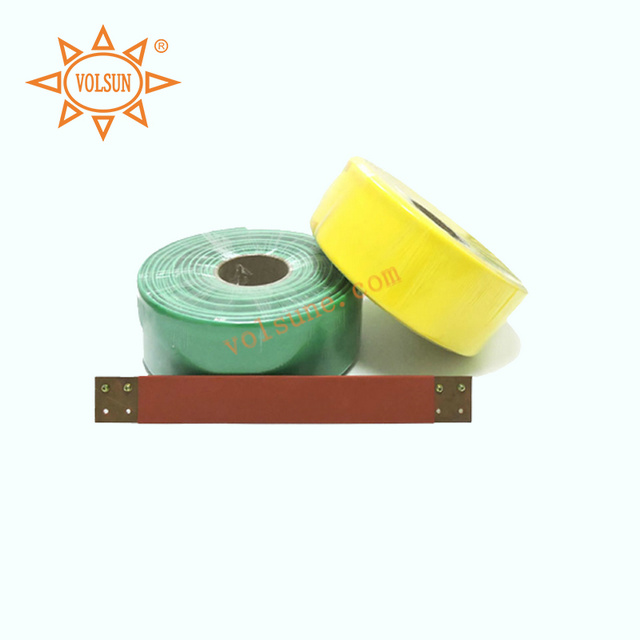

Low voltage busbar heat shrink tubes are made from polyolefin material with radiation crosslinking, this heat shrink tubing exhibits exceptional physical, chemical, and electrical properties. Primarily designed to provide electrical insulation for connectors, it also offers insulation protection for busbars in diverse scenarios, aiding in minimizing phase spacing. Its extensive utilization encompasses various low-voltage switchgear, busbar slots, and electrical insulation applications.
Shrink ratio: 2:1
Shrinking temperature: 70℃ ~ 120℃
Operating temperature: -55℃ ~ 125℃
Environmental standard: RoHS
Implementation standard: DL/T 1059-2007
Low smoke, soft, high strength, resistance to electric carbon marks
Standard color: Black, red, yellow, green, blue, other colors can be customized on request
Item | Typical data | Test standard |
Tensile Strength | ≥8.0MPa | ASTM D 2671 |
Elongation at Break | ≥300% | ASTM D 2671 |
Tensile strength after thermal aging | ≥6.9MPa | 130℃×168h |
Elongation at break after thermal aging | ≥100% | 130℃×168h |
Axial rate of change | -8%～+8% | ASTM D 2671 |
Thermal shock | No cracks | 250℃×4h |
Breakdown strength | ≥20kV/mm | ASTM D 149 |
Volume resistivity | ≥1014Ω.cm | IEC 60093 |
Size(mm) | Supplied ID (mm) | Full recovered size(mm) | Standard packing (M/Roll) | |
Inside diameter | Wall thickness | |||
Φ30.0/15.0 | ≥30 | ≤15.0 | ≥0.85 | 50 |
Φ35.0/18.0 | ≥35 | ≤17.5 | ≥0.85 | 50 |
Φ40.0/20.0 | ≥40 | ≤20.0 | ≥0.85 | 50 |
Φ45.0/23.0 | ≥45 | ≤23.0 | 0.85 | 25 |
Φ50.0/25.0 | ≥50 | ≤25.0 | ≥0.85 | 25 |
Φ60.0/30.0 | ≥60 | ≤30.0 | ≥1.00 | 25 |
Φ70.0/35.0 | ≥70 | ≤35.0 | ≥1.00 | 25 |
Φ80.0/40.0 | ≥80 | ≤40.0 | ≥1.00 | 25 |
Φ90.0/45.0 | ≥90 | ≤45.0 | ≥1.00 | 25 |
Φ100/50.0 | ≥100 | ≤50.0 | ≥1.00 | 25 |
Φ120/60.0 | ≥120 | ≤60.0 | ≥1.00 | 25 |
Φ150/75.0 | ≥150 | ≤75.0 | ≥1.00 | 25 |
Φ180/90.0 | ≥180 | ≤90.0 | ≥1.00 | 25 |
Φ210/105.0 | ≥210 | ≤105.0 | ≥1.00 | 25 |
Φ230/115.0 | ≥230 | ≤115.0 | ≥1.00 | 25 |
Φ250/125.0 | ≥250 | ≤125.0 | ≥1.00 | 25 |
Φ300/150.0 | ≥300 | ≤150.0 | ≥1.00 | 25 |
Remark: Special sizes & packing are available on request.
FAQ 1:
Q: Is the 1kV busbar heat shrink tubing compatible with a wide range of low-voltage electrical equipment?
A: Yes, the 1kV busbar heat shrink tubing is widely compatible with various low-voltage electrical equipment. Its insulation and protective properties make it suitable for use in different types of low-voltage switchgear, busbar slots, and other low-voltage electrical applications.
FAQ 2:
Q: What is the quality assurance of your 1KV busbar heat shrink tube?
A: We have achieved certifications such as IATF 16949, ISO 9001, and other quality standards. Our heat shrink tube series have been approved by RoHS, REACH, and other testing report by SGS.
FAQ 3:
Q: What is the delivery time for 1kv busbar heat shrink tubing?
A: For regular sizes & colors, the delivery time usually is 3~5 working days around.
FAQ 4:
Q: Can the low voltage busbar heat shrink tubing be customized to fit my unique application?
A: Yes, we accept customizable size, color, packing, etc. based on your special requirements.
