Wind Turbines Motor Bearing Protection: Slashing O&M Costs with Shaft Grounding Brushes

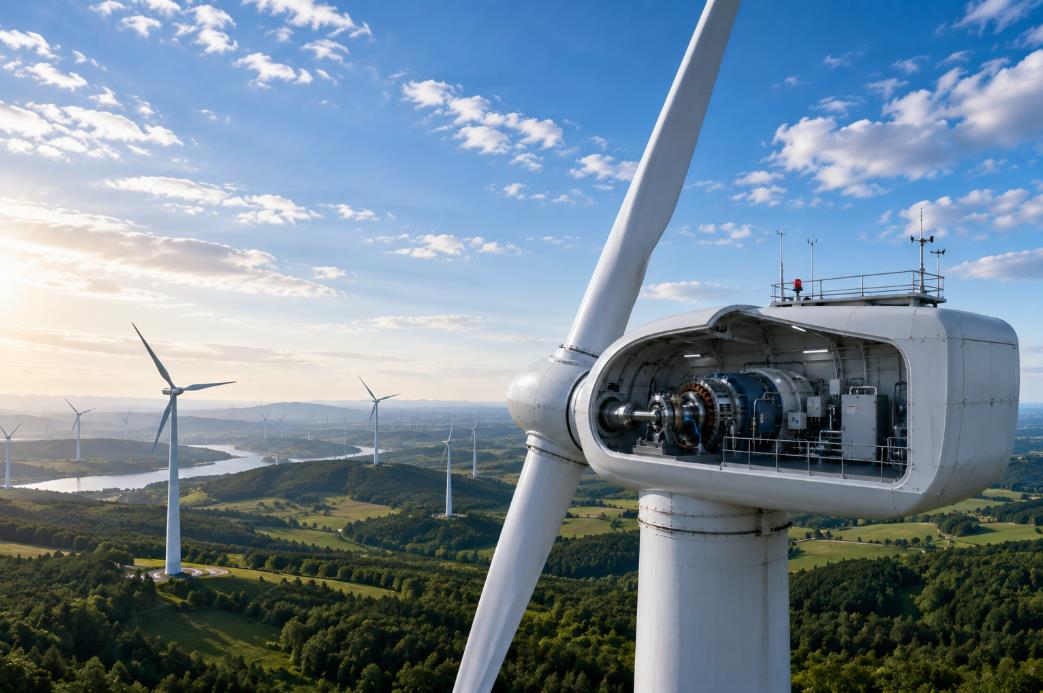

In wind energy, uptime is the only metric that matters. As turbines scale toward 15MW and 20MW capacities, the stakes for mechanical reliability skyrocket. For offshore installations, a single bearing replacement can cost hundreds of thousands of dollars in vessel fees. The primary culprit is often high-frequency shaft currents generated by modern power converters.

The Scale of the Problem

Large Permanent Magnet Synchronous Generators (PMSG) have shaft diameters exceeding 200mm. These systems face high-frequency circulating currents and lightning-induced surges. Traditional carbon brushes often fail due to brittle materials, inconsistent contact, and conductive dust that causes internal shorts.

The TDB Advantage: High-Capacity Grounding

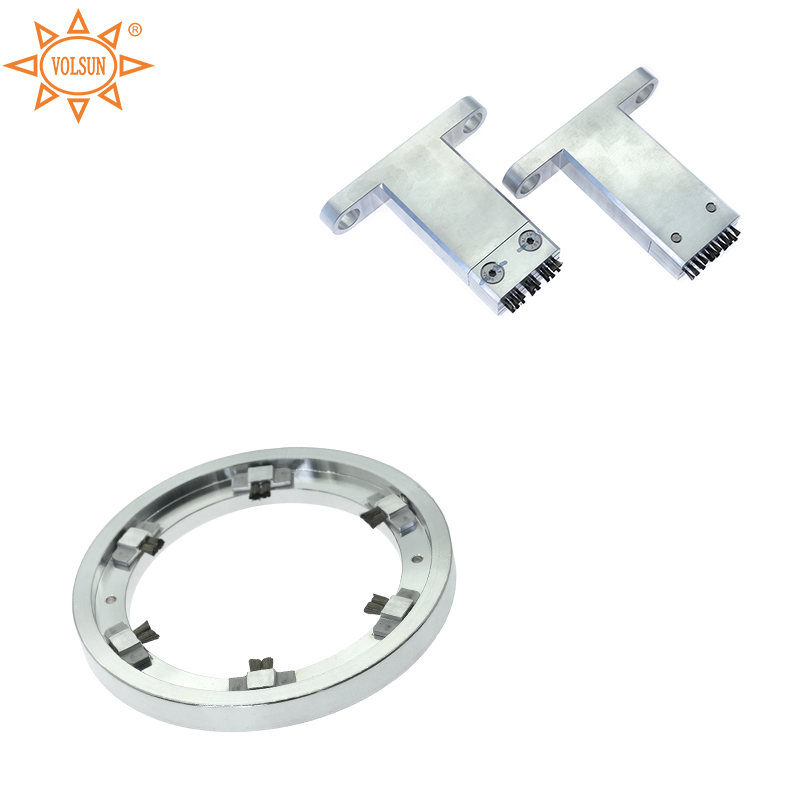

Volsun’s TDB Series Shaft Grounding Brushes are engineered for the massive electrical throughput of utility-scale turbines. Instead of a solid carbon block, the TDB utilizes multi-contact fiber technology, ensuring thousands of individual contact points remain engaged with the shaft, even under high vibration.

Engineered for the Harsh Marine Environment Offshore farms are the ultimate test. Volsun’s TDB series is built for resilience:

• Corrosion Resistance: Aluminum-magnesium housings and treated fibers show no functional degradation after rigorous salt spray testing.

• Customizable Capacity: We adjust fiber bundle density (up to 48K) to match specific current diversion needs.

• Maintenance-Free: Designed for a 15-year service life, removing the need for frequent offshore site visits.

Why Fiber Outperforms Carbon

Volsun’s Metal-Coated Carbon Fibers are inherently flexible and do not "bounce" during low-speed, high-torque rotations. Furthermore, the static contact resistance of <1Ω ensures even the smallest voltage potentials are neutralized before they penetrate the bearing's oil film.

By switching to Volsun TDB shaft grounding brushes, operators invest in a 15-year maintenance-free window. Preventing one unscheduled bearing replacement pays for the system thousands of times over.

FAQ

Q1. Why do wind turbine bearings fail prematurely?

High-frequency shaft currents and lightning surges cause EDM pitting. A Volsun TDB brush provides a safe, low-resistance ground path to prevent this.

Q2. What is the best grounding for large shafts (>200mm)?

Fiber-based brushes like the Volsun TDB shaft grounding rings are superior to carbon blocks because they maintain constant contact points and offer much lower wear rates.

Q3. Are Volsun grounding brushes offshore-ready?

Yes. They feature salt-spray resistant aluminum-magnesium housings and specialized fibers that withstand the humidity and corrosiveness of marine environments.

Q4. What is the maintenance interval for Volsun TDB shaft grounding brushes?

They are designed to be maintenance-free for up to 15 years, matching the typical mechanical overhaul cycle of the generator itself.

Q5. How does Volsun handle high-current surges in wind turbines?

We offer customizable fiber densities (e.g., 36K or 48K bundles) and multi-point contact arrays to handle both steady-state shaft currents and transient surges.
