Learn how shaft grounding rings protect pump motors from electrical damage, reduce downtime, and extend equipment lifespan in VFD-driven systems.
Modern pump systems are widely used in industries such as water treatment, oil & gas, and manufacturing.

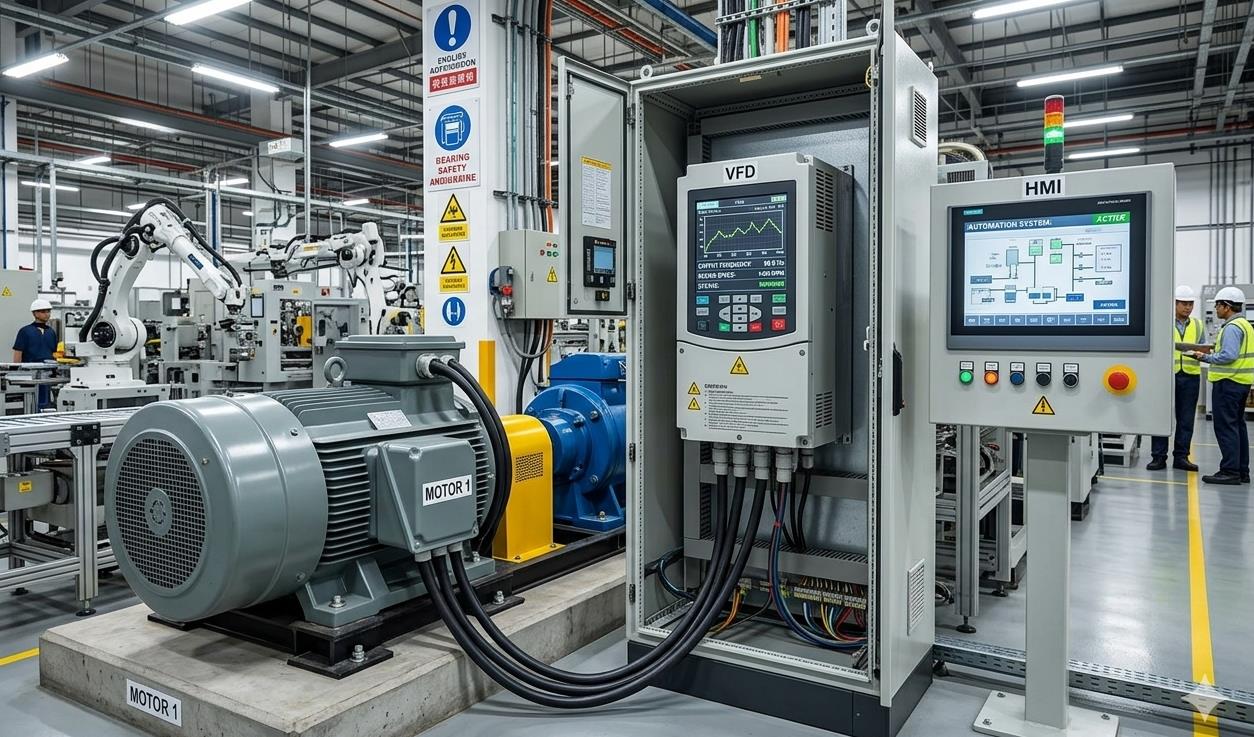

To improve efficiency, many pumps now rely on variable frequency drives (VFDs). While VFDs reduce energy consumption, they also introduce new electrical challenges.
One of the most overlooked issues is shaft voltage and bearing current.
VFD-driven motors generate high-frequency voltage components that create shaft currents through capacitive coupling.
In pump systems that run continuously, this leads to:
Repeated electrical discharge inside bearings
Gradual surface damage
Lubrication breakdown
Unexpected shutdowns
Because pumps often operate in 24/7 conditions, even minor damage accumulates quickly.
In pump applications, the impact of bearing failure goes beyond repair costs:
Production interruptions
System pressure loss
Increased labor and maintenance frequency
In critical environments such as water supply or industrial processing, downtime can lead to significant operational losses.
Traditional approaches, such as grounding brushes or coated components, often struggle in pump environments:
Wear and instability over time
Reduced effectiveness in oil or wet conditions
Higher maintenance requirements
These limitations make them unsuitable for long-term, continuous operation.

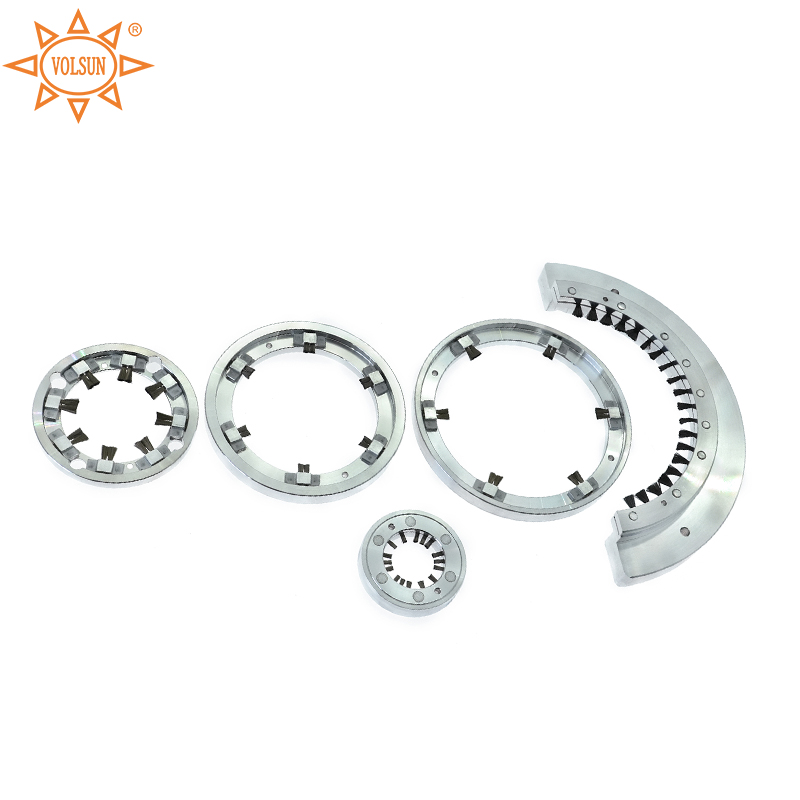

The shaft grounding ring offers a more stable and long-lasting solution.
Installed near the motor bearing, it creates a controlled path for electrical discharge, preventing current from passing through the bearing.
Its key features include:
Low and stable resistance (≤10Ω dynamic)
Strong fiber contact with the shaft
Long service life with minimal performance degradation
One often overlooked advantage is low drag torque.
Volsun’s optimized structure minimizes friction between the fiber and shaft, reducing additional load on the motor.
This contributes to:
Improved energy efficiency
Reduced operational losses
After installing the shaft grounding ring, the pump motor operates with significantly improved stability. Electrical discharge damage inside the bearings is effectively eliminated, which directly reduces wear and extends bearing service life.

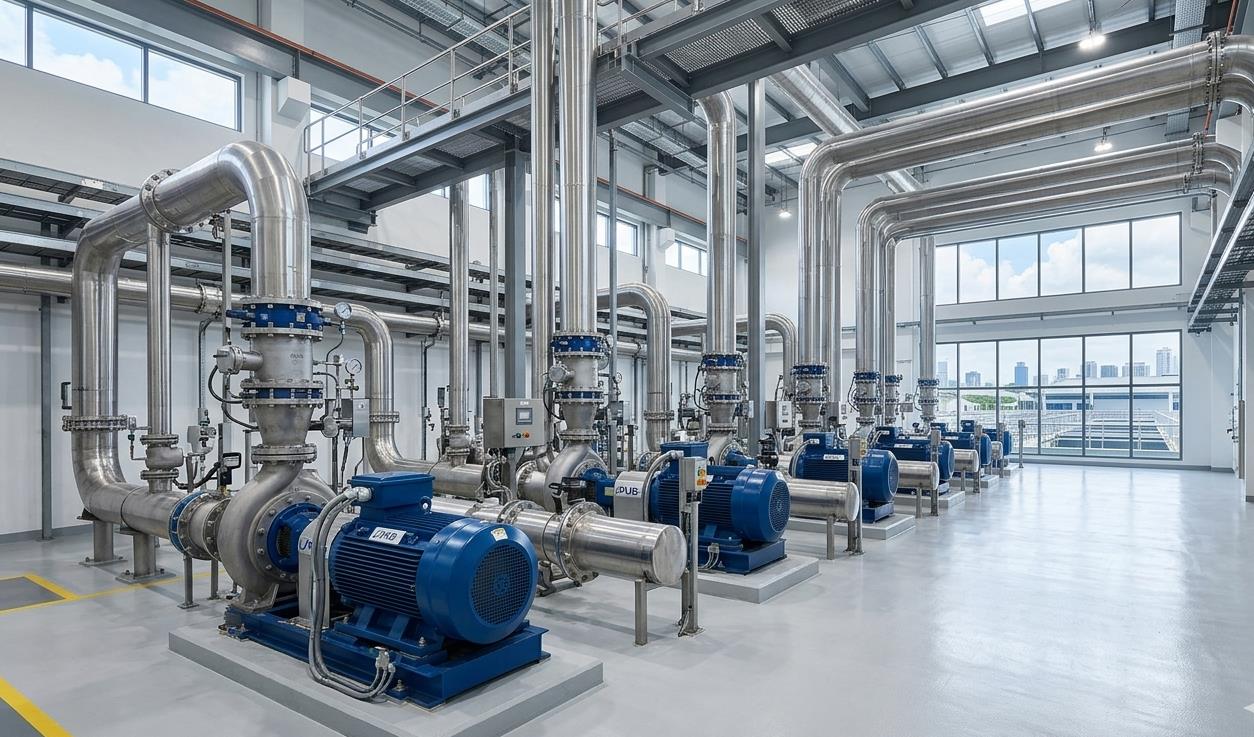

In continuous-duty environments such as water treatment plants and industrial circulation systems, this improvement becomes even more evident. Maintenance intervals are extended, unplanned shutdowns are minimized, and overall system uptime is increased.
For operators, this translates into lower maintenance costs, reduced spare parts consumption, and more predictable system performance. Over time, the shaft grounding ring proves to be a cost-effective solution for ensuring long-term reliability in VFD-driven pump applications.
This solution is widely applicable to:
Water treatment systems
Industrial circulation pumps
Oil & gas transfer systems
HVAC pumping systems
As pump systems become more dependent on VFD technology, electrical protection becomes essential.
A reliable shaft grounding solution not only protects bearings but also ensures stable and efficient system operation over time.
1. Why do pump motors often suffer from bearing damage?
Many pump systems use VFDs to control speed. These drives generate high-frequency voltages that can create shaft currents, which may pass through bearings and cause electrical damage.
2. What are the signs of electrical damage in pump bearings?
Common signs include unusual noise, increased vibration, reduced efficiency, and premature bearing failure. These issues often appear gradually but worsen over time.
3. Why are VFD-driven pumps more vulnerable?
VFDs introduce switching frequencies that create capacitive coupling inside the motor. This makes shaft voltage and current more likely compared to traditional power systems.
4. What is the impact of bearing failure in pump systems?
In pump applications, bearing failure can lead to system shutdown, fluid flow interruption, and increased maintenance costs, especially in continuous operation environments.
5. Are traditional grounding methods sufficient for pumps?
Traditional solutions such as brushes or coatings may wear out or lose effectiveness, especially in wet or oil-based environments. This makes them less reliable for long-term use.
6. How does a shaft grounding ring protect pump motors?
It provides a controlled, low-resistance path for shaft current, allowing it to safely flow to ground instead of passing through the bearing.
7. What makes Volsun’s shaft grounding ring suitable for pump systems?
Volsun uses metallized carbon fibers that maintain stable contact with the shaft, ensuring consistent performance even during continuous operation.
8. Does the shaft grounding ring increase energy consumption?
No. The product is designed with low drag torque, meaning it has minimal impact on motor efficiency and can even help reduce unnecessary energy loss.
9. How often does the shaft grounding ring need maintenance?
Under normal conditions, it is designed to be maintenance-free throughout the motor’s service life, reducing the need for frequent inspections or replacements.
10. What types of pumps can benefit from this solution?
This solution is suitable for a wide range of pump systems, including water treatment, industrial processing, HVAC circulation, and oil & gas applications.
