How to Prevent Bearing Fluting in VFD Motors with Shaft Grounding Rings？

Quick Answer

Bearing fluting is a distinctive pattern of evenly spaced grooves that appears on the raceway of motor bearings. It is commonly caused by electrical discharge from shaft voltage in VFD-driven motors. Repeated electrical sparks inside the bearing gradually damage the surface, leading to vibration, noise, and premature failure.

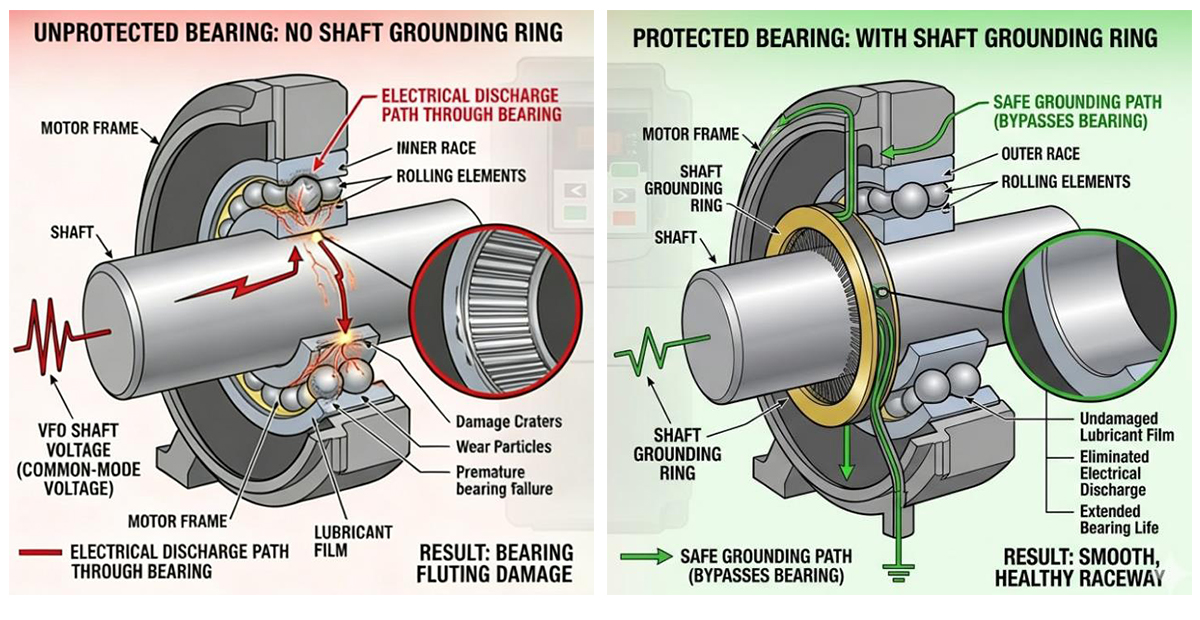

Comparison of electrical discharge paths in VFD-driven motors. A shaft grounding ring redirects harmful stray currents (Green Path) to the motor frame, preventing the electrical discharge (Red Path) that causes bearing fluting and premature failure.

Recognizing the Signs of Electrical Bearing Damage

When a motor bearing fails, engineers often inspect the internal components to determine the cause. One of the most recognizable damage patterns is bearing fluting. Instead of a smooth raceway surface, the bearing shows a series of evenly spaced grooves that resemble a washboard pattern. This type of damage is rarely caused by mechanical wear alone. In many cases, it indicates electrical discharge damage.

Why Fluting Occurs in VFD Motors

Motors powered by Variable Frequency Drives operate under electrical conditions that differ from traditional grid-powered motors. VFDs regulate motor speed using high-frequency switching. This switching produces electrical effects such as common-mode voltage and shaft voltage. As the shaft rotates, voltage builds up between the shaft and the motor frame.

Once the voltage exceeds the insulation strength of the lubricant film inside the bearing, the electricity discharges through the bearing components.

From Electrical Sparks to Surface Damage

Each discharge creates a tiny spark that locally melts a small portion of the metal surface. Although a single spark causes almost no visible damage, repeated discharges gradually form microscopic craters. As the rolling elements pass over these areas repeatedly, the damage becomes organized into regular patterns along the raceway. Eventually, the bearing develops the characteristic fluting grooves.

These grooves create operational problems such as:

• Increased vibration

• Audible bearing noise

• Reduced bearing lifespan

• Unstable motor operation

Once fluting develops, the bearing deterioration accelerates quickly.

Why Bearing Replacement Alone Fails

Many maintenance teams replace the damaged bearing and expect the problem to disappear. Unfortunately, if the underlying electrical conditions remain unchanged, the new bearing will experience the same electrical discharge. As a result, fluting often reappears after a relatively short operating period.

Preventing Fluting with Shaft Grounding Ring

A shaft grounding ring prevents fluting by eliminating the discharge path through the bearing. The shaft grounding ring provides a low-resistance path between the rotating shaft and the motor frame. Stray electrical current flows through this path instead of through the bearing. With the electrical current safely redirected, the conditions that create fluting are removed.

FAQ

1.Is fluting always caused by electrical current?
Most fluting in VFD motors is linked to electrical discharge, though mechanical vibration can sometimes create similar patterns.

2.How can engineers confirm electrical bearing damage?
Inspection of the raceway surface and measurement of shaft voltage are common diagnostic methods.

3.How can fluting be prevented?
Installing a shaft grounding ring or other grounding solution can prevent electrical discharge through the bearing.
