How Busbar Heat Shrink Tubing Protects Medium And Low Voltage Power Systems

In medium and low voltage switchgear, busbars are like the "arteries" of the power system, carrying the core responsibility of power transmission. However, exposed busbars face multiple risks, including short circuits, leakage, and corrosion. Effective insulation and protection has become a key industry concern. Busbar heat shrink tubing is precisely designed to address this issue – a simple yet effective process that provides comprehensive busbar protection, enhancing the safety and reliability of switchgear.

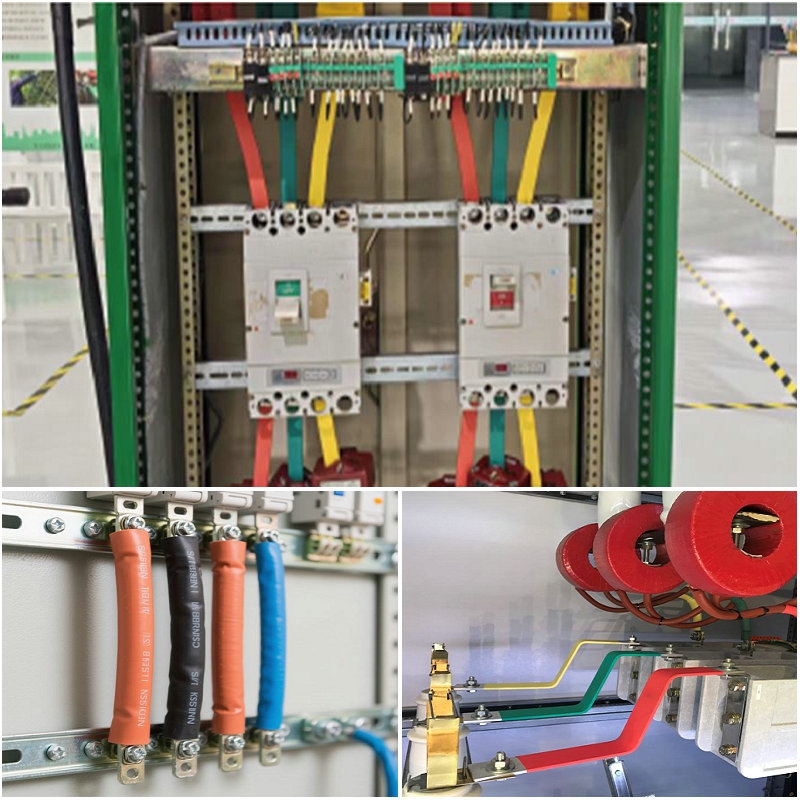

Busbar heat shrink tubing is a specialized tubing made of materials such as polyolefins and exhibits heat-shrink properties. When unheated, it is a flexible tube. When heated, it shrinks evenly and tightly wraps around the busbar surface, forming a tough insulating layer. This design not only accommodates busbars of varying sizes and shapes (such as rectangular, round, or irregular), but also fills gaps at busbar joints, eliminating blind spots.

How does busbar heat shrink tubing provide insulation and protection?

• Physical Protection: Tightly wraps to resist external forces.

After heating and shrinking, busbar heat shrink tubing adheres tightly to the busbar surface, forming a protective layer with high mechanical strength, wear resistance, and scratch resistance. This layer effectively prevents short circuits caused by tool collisions, animal bites, or dropped foreign objects, making it particularly suitable for switchgear environments with compact space and frequent operation.

• Electrical Insulation: Blocks arcing and leakage.

In medium and low voltage switchgear, the close spacing between busbars can easily cause arcing and creepage. The high dielectric strength of heat shrink tubing (typically reaching 10-20 kV/mm) significantly improves insulation levels, suppresses arc propagation, and reduces the occurrence of phase-to-phase short circuits or ground faults. For example, in 400V low-voltage switchgear or 10kV medium-voltage switchgear, heat shrink tubing only 2-3 mm thickness can meet insulation requirements.

• Environmental Adaptability: Moisture-resistant, corrosion-resistant, and aging-resistant.

Switchgear may be exposed to humid, dusty, or chemically corrosive environments. Heat shrink tubing offers excellent sealing and weather resistance, protecting busbars from corrosion caused by moisture, salt spray, and acids and alkalis, extending their lifespan. Its UV resistance (suitable for outdoor cabinets) and flame retardancy (compliant with UL94 V-0 standards) further enhance safety.

Why choose busbar heat shrink tubing?

Compared to traditional insulation methods, busbar heat shrink tubing offers three major advantages:

• Easy installation: No specialized equipment is required; installation is completed simply by heating, saving time and labor costs.

• Flexible adaptability: Customizable colors (such as yellow, green, and red for phase coding), thickness, and shrink ratio are available to meet individual needs.

• Long-lasting protection: Long service life and minimal maintenance.

Despite its apparent simplicity, busbar heat shrink tubing is a cost-effective choice for insulation protection in medium and low-voltage switchgear. It not only reduces safety risks but also improves the reliability of power equipment through standardized application.
