What Are The Key Advantages of Silicone Rubber Fiberglass Sleeve?

Views: 0     Author: Site Editor     Publish Time: 2025-07-04      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

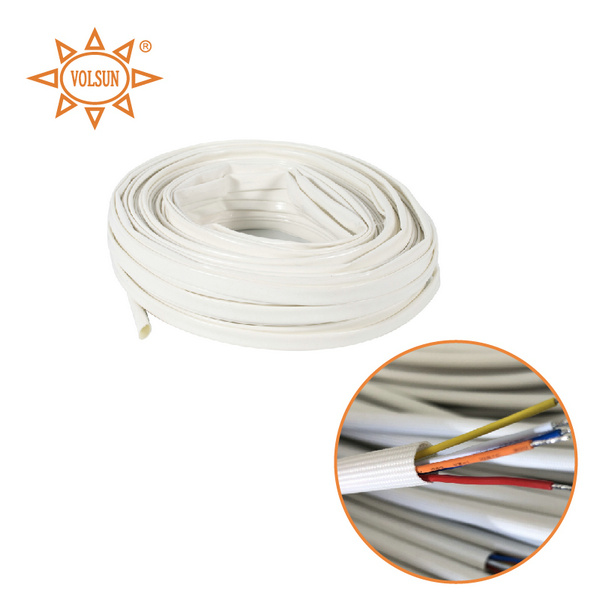

fiberglass sleeve3

Volsun NS-GF200RUB-D silicone rubber fiberglass sleeve, with its excellent performance and reliability, has become an ideal choice for industrial circuit insulation protection. It adopts the composite process of alkali-free glass fiber and silicone rubber to provide stable and reliable protection for key circuit systems under high temperature, high frequency voltage and complex environment.


The core performance of NS-GF200RUB-D silicone rubber fiberglass sleeve is as follows:


Excellent temperature and weather resistance: The fiberglass sleeve can work stably in a wide temperature range of -40℃ to 200℃. Even in the extremely cold environment of -40℃, it can maintain flexibility and facilitate installation and wiring; at a high temperature of 200℃, it will not melt, meeting the protection needs of extreme temperature scenes such as engine compartments and high-speed rail traction converters.


High dielectric strength: NS-GF200RUB-D fiberglass sleeve provides multiple withstand voltage specifications from 1500V to 7000V, which can effectively isolate high-voltage circuits and prevent short circuits. Its flame retardant grade reaches HB (UL94), and it will extinguish itself when it encounters fire and will not spread, meeting the fire safety standards of automotive electronics and military equipment.


Good flexibility and durability: The tear strength of this fiberglass sleeve is ≥50N/mm (Φ4.0 and above), and it has strong resistance to external scratches and can adapt to pulling and bending during installation. Its coating has excellent hydrolysis resistance, and it has no displacement or adhesion when exposed to a humid environment for a long time, ensuring long-term stability of insulation performance.


NS-GF200RUB-D silicone rubber glass fiber sleeve has a wide range of application scenarios, mainly suitable for the following fields:


New energy vehicle industry: used for battery harness insulation, motor controller line protection, etc., resistant to 200℃ high temperature, and high dielectric strength, can effectively ensure the safety of the three-electric (motor, electronic control, battery) system of new energy vehicles.


Railway transportation industry: used for traction converter cable coating, signal cable protection, etc., resistant to vibration fatigue, resistant to high and low temperature alternation, and can adapt to the complex environment of high-speed train operation.


Military and aerospace industry: used for aviation harness insulation, satellite equipment line protection, etc., in line with the environmental adaptability requirements of military products, resistant to radiation and extreme temperature differences, to ensure that the equipment operates under harsh working conditions.


Industrial Automation: Used for servo motor line protection, PLC control cabinet wiring, etc. It is flexible and easy to bend, adapting to the precision wiring requirements inside compact equipment, reducing the difficulty of installation.


Free samples can be provided if need. Welcome to contact us for more details.
