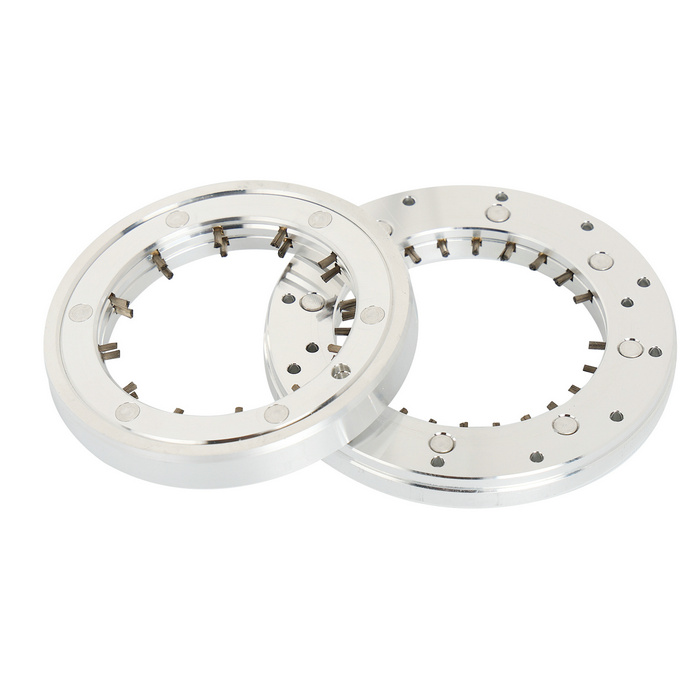

How Shaft Grounding Rings Protect Your Electric Motor Bearings

A shaft grounding ring gives a safe path for shaft voltage. This helps protect your motor bearings from failing too soon. Motors with VFDs often get extra electrical current. This extra current can hurt the bearings. Over 40% of motor problems happen because bearings fail from these currents. Shaft grounding rings move harmful electricity away. This lowers wear and vibration. Your motor lasts longer and needs fewer fixes. Using shaft grounding devices is a smart way to protect your motor.

Tip: Buying shaft grounding rings helps bearings last longer and keeps your machines working well.

Key Takeaways

• Shaft grounding rings help protect motor bearings. They give stray electrical currents a safe way to travel. This lowers wear and helps motors last longer.

• Stray currents can cause electrical erosion. This can damage bearings a lot. It can lead to expensive repairs and lost time.

• Shaft grounding rings are very important for motors with variable frequency drives (VFDs). VFDs make bearing failure more likely.

• It is important to check and maintain shaft grounding rings often. This makes sure they work well. It helps stop surprise motor problems.

• Picking the right shaft grounding ring is important. Installing it the right way can save money on repairs. It also makes motors work better and more reliably.

Preventing Bearing Failure

Why Bearings Fail in Electric Motors

Electric motor bearings can fail for many reasons. Some common causes are:

• Improper installation and setup

• Not enough lubrication or dirty grease

• Electrical erosion

• Vibration

• Not enough load

Electrical erosion is a big problem. When the motor runs, stray electrical currents can go through the bearings. These currents make tiny sparks inside the bearing. Over time, these sparks damage the bearing surface. This damage is called electrical discharge machining, or EDM. At first, you might not hear anything wrong. But the damage keeps getting worse. If you do not fix it, repairs will cost a lot and your machine may stop working.

A shaft grounding ring helps protect the bearings. It gives the electricity a safe path to follow. This stops voltage from building up on the shaft. The ring moves harmful currents away from the bearings. This gives better protection and helps the motor last longer.

Note: The NEMA Standard MG1-2009 says shaft voltages can send bad currents through motor bearings. These currents can cause pitting and scoring. Shaft grounding rings stop this kind of damage and need no extra care.

Risks with VFDs and Shaft Currents

Variable frequency drives, or VFDs, help control how fast a motor spins. But they also make bearing failure more likely. VFDs use fast voltage changes and high-frequency signals. These signals create voltages inside the motor. The voltages build up on the shaft and rotor. When the voltage gets high, it jumps through the bearings. This jump causes EDM damage.

Motors with VFDs have a higher chance of bearing failure. Studies show about 41% of motor failures come from bearing currents caused by VFDs. You need to fix this problem to keep your machines working well.

Shaft grounding devices, like shaft grounding rings, help solve this issue. These rings have special fibers that touch the shaft. They give stray currents a safe way out. The rings move electricity away from the bearings. This stops voltage from building up and prevents damage before it starts.

Real-world examples show the benefits. For example, a paper mill in the Midwest put AEGIS shaft grounding rings on their motors. After that, they spent less money on repairs and had less downtime. The motors worked for over two years without needing new bearings. Checks showed shaft voltage stayed under 5 volts. This means the rings did a good job moving harmful currents away.

Here is a simple table showing how shaft grounding rings help motors last longer and work better:

When you use shaft grounding devices, you help stop bearing failure. You save money, avoid downtime, and keep your machines running well.

How Shaft Grounding Rings Work

Conductive Microfiber Design

The shaft grounding ring works because of its special design. It has thousands of tiny conductive microfibers. These microfibers touch the motor shaft. They make a safe path for stray currents. This path lets electricity move from the shaft to the motor frame. The design uses ionization to help electrons move faster. This helps the ring get rid of high-frequency currents from VFDs.

Here is a table that explains how the conductive microfiber shaft ring design works:

• The shaft grounding ring sends shaft current away from the bearings. It gives a safe path from the shaft to the frame.

• It uses ionization to help electrons move faster.

• The design helps get rid of high-frequency currents from VFDs.

The microfiber design gives many places for current to leave. Each spot helps move bad currents away from the bearings. This means better bearing protection and less chance of electrical damage.

Dissipating Voltage Arcs

When a motor uses a VFD, voltage can build up on the shaft. If the voltage gets too high, it can jump across the bearing. This jump is called a voltage arc. Voltage arcs can make pits and marks on the bearing. This can cause the bearing to fail.

Shaft grounding rings stop this before it happens. The ring gives the voltage a safe way to leave the shaft. It sends the voltage to the motor frame and then to the ground. This keeps voltage from building up and stops arcs from forming.

• AEGIS Shaft Grounding Rings stop electrical bearing damage. They give a low-resistance path from the shaft to the frame.

• They get rid of shaft voltage before it can cause arcing.

• The Aegis Shaft Grounding Rings send bad voltages away from the bearings.

• This sends the voltage to ground through the motor frame. This protects the bearings from damage.

You will have less downtime and fewer repairs with shaft grounding rings. Your bearings last longer. Your motor stays reliable.

Diverting Harmful Currents

Shaft grounding devices help keep your motor safe. They move harmful currents away from the bearings. This stops electrical damage and helps keep bearings from failing. The shaft grounding ring makes a direct path for current to go to ground. You do not have to worry about current going through the bearings.

You may wonder how shaft grounding rings compare to other devices like carbon brushes. Both give a path for shaft current. But the microfiber design in shaft grounding rings has some clear benefits.

The microfiber design of shaft grounding rings gives a path for shaft current, like carbon brush designs. But it can have problems with wear and maintenance. It can also hurt insulation in electric drive systems.

Some advanced shaft grounding devices, like Bearing Protection Kits (BPK), use silver graphite brushes. These brushes have even lower resistance than carbon-fiber rings. They last longer and are easier to install and take care of. In tests, BPKs showed much lower shaft voltage than carbon fiber rings. This means they protect better against shaft currents.

Still, shaft grounding rings are a popular choice. They are easy to put in and need little care. You can trust them to keep your bearings safe and lower the risk of costly downtime.

Choosing Shaft Grounding Devices

Types of Shaft Grounding Rings

There are different shaft grounding rings you can pick for your motor. Each kind works best for certain jobs and ways to put them in. Here is a table that shows the main types and what they do:

Split rings are good if your motor is still hooked up to other machines. Solid rings are better when you fix or set up a new motor. Press fit rings need skilled workers and special tools.

If your motor is strong or uses high power, pick AEGIS shaft grounding rings. These rings protect motors with variable frequency drives. They help stop bearing problems. For big motors, the AEGIS PRO Series gives strong protection for generators and turbines.

Application and Installation Tips

You want your shaft grounding rings to work right. Here are some tips to help:

• Do not use old rings again. Put in new ones if they are broken.

• Check your work with a tester to make sure it works.

• Do not use glue that does not let electricity pass. It stops the ring from working.

• For motors over 100 HP, keep one bearing apart and put the ring on the other side.

• Pick kits with good materials like silver graphite or carbon fiber.

• Keep the spot clean. Dirt, rust, or grease can make the ring not work well.

• Make sure your motor is grounded so you do not have problems.

Tip: Retrofit kits let you add shaft grounding rings to motors you already have. They help stop new problems but cannot fix old damage.

Maintenance and Testing

Check your shaft grounding rings often to keep them working. Add looking at them to your regular checks. Watch for dirt or grease. These things can block the ring and make it not work.

Test the ring after you put it in. Use a special probe with tiny fibers to check shaft voltage while the motor runs. A portable oscilloscope with at least 100 MHz gives good results. You can also check with vibration tests and heat cameras for a full check.

• Look at grounding rings often.

• Watch for dirt or grease.

• Check shaft voltage when you start up or after fixing.

Using shaft grounding rings costs less than buying new bearings if they break. The rings help you spend less on repairs and keep your motor running longer. They also protect bearings better and help your motor last.

You can keep your motor bearings safe with a shaft grounding ring. This device stops electrical discharge from hurting the bearings. It also helps you spend less on repairs. You should choose the right grounding ring for your motor. Make sure you put it on carefully. Check the ring often to help your motor last longer. Regular checks help you avoid sudden breakdowns.

First, find any stray currents in your motor. Pick a good shaft grounding ring for your needs. Put the device on the motor the right way. Watch how it works after you install it. Test shaft voltage often to make sure it is safe. Keep the area around the ring clean. These steps help your motor last longer and save you money.

FAQ

What is a shaft grounding ring?

A shaft grounding ring is a device that touches your motor shaft. It gives stray electrical currents a safe path to ground. This helps protect your motor bearings from electrical damage.

How do I know if my motor needs a shaft grounding ring?

If your motor uses a variable frequency drive (VFD), you should use a shaft grounding ring. You may also need one if you see early bearing failure or hear unusual noises.

Can I install a shaft grounding ring myself?

You can install many shaft grounding rings with basic tools. Always follow the instructions from the manufacturer. For large motors, you may need help from a trained technician.

How often should I check my shaft grounding ring?

• Check your shaft grounding ring during regular motor maintenance.

• Look for dirt, grease, or wear.

• Test shaft voltage if you notice problems.

Do shaft grounding rings need maintenance?

Shaft grounding rings need little care. You should keep them clean and check for wear. Replace them if you see damage or if they stop working well.
