Why Solar PV Connectors Fail Prematurely and How Cold Shrink Tubes Help Prevent It

As solar power systems continue to expand across residential, commercial, and utility-scale applications, reliability has become a key concern for system owners and operators. While solar panels often receive the most attention, many unexpected failures actually originate from a smaller but equally important component—the photovoltaic connector.

MC4 and similar PV connectors are designed for outdoor use, but harsh environmental conditions can still affect their long-term performance. Moisture, UV exposure, salt spray, dust, and temperature fluctuations can gradually weaken sealing performance and increase the risk of electrical failures.

Understanding the common causes of connector failure is the first step toward improving the reliability and lifespan of solar installations.

Moisture Ingress Remains a Major Threat

Water is one of the most common causes of connector-related issues in solar systems. Even small amounts of moisture entering a connector assembly can lead to insulation degradation, increased contact resistance, and corrosion.

Solar installations located in regions with heavy rainfall, high humidity, or frequent condensation are particularly vulnerable.

Salt Spray Accelerates Corrosion

For coastal solar farms, salt-laden air presents an additional challenge. Salt particles can settle on connector surfaces and gradually accelerate corrosion of metallic components.

Projects located near oceans, ports, or offshore facilities often require enhanced environmental protection beyond standard connector sealing.

UV Radiation Causes Material Aging

Solar connectors operate under continuous sunlight exposure throughout their service life. Prolonged ultraviolet radiation can gradually age certain polymer materials, causing cracking, hardening, or loss of elasticity.

Dust and Sand Can Compromise Sealing

Solar farms in desert and semi-arid regions face a different challenge. Wind-blown dust and sand can accumulate around connection points and gradually affect sealing interfaces. Fine particles may enter small gaps and contribute to wear over time.

How Cold Shrink Tubes Provide Additional Protection

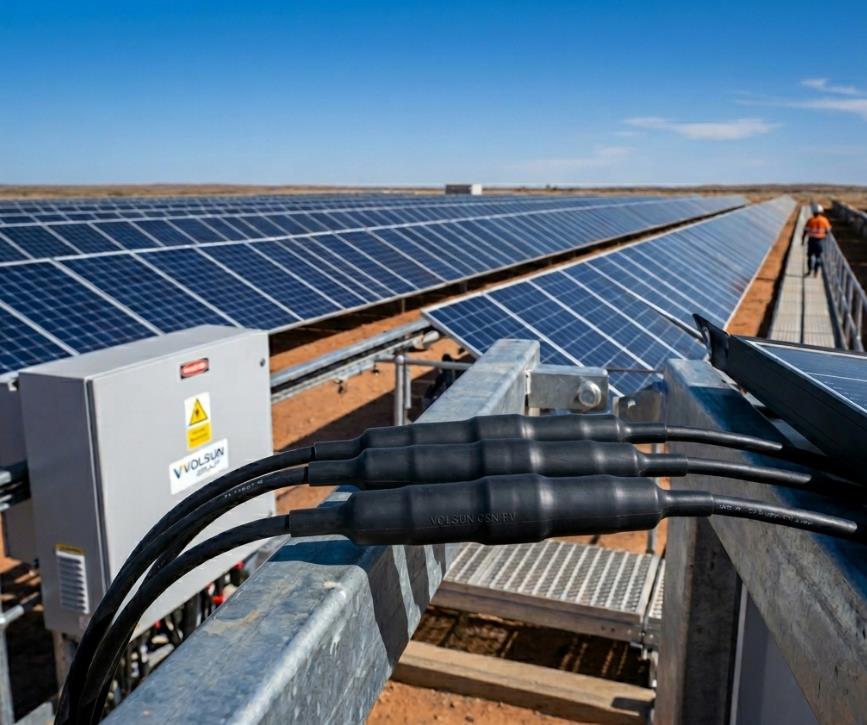

To improve connector reliability, many solar engineers and EPC contractors use silicone cold shrink tubes as an additional environmental sealing layer.

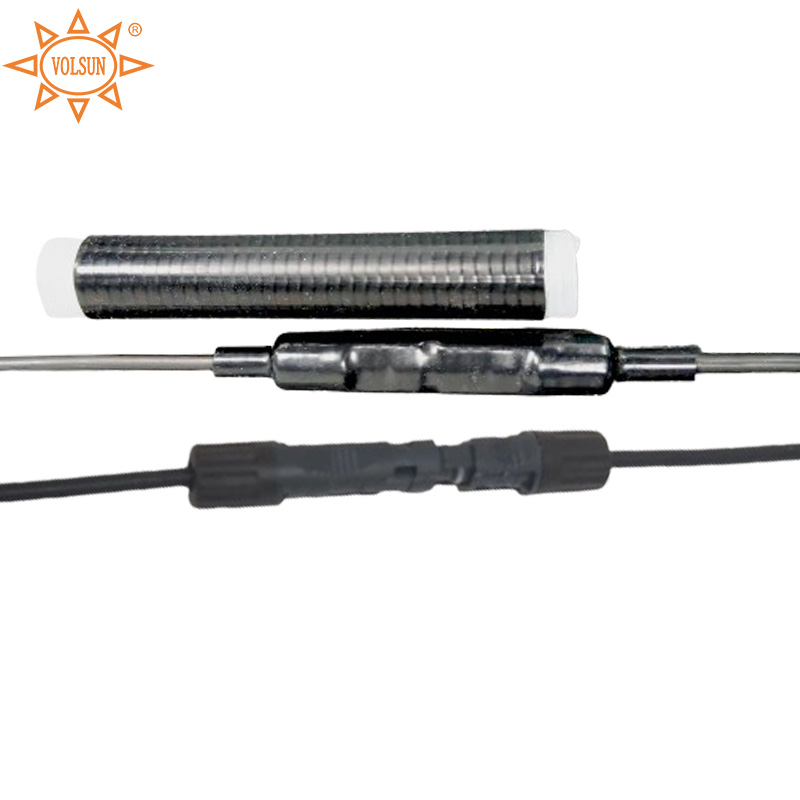

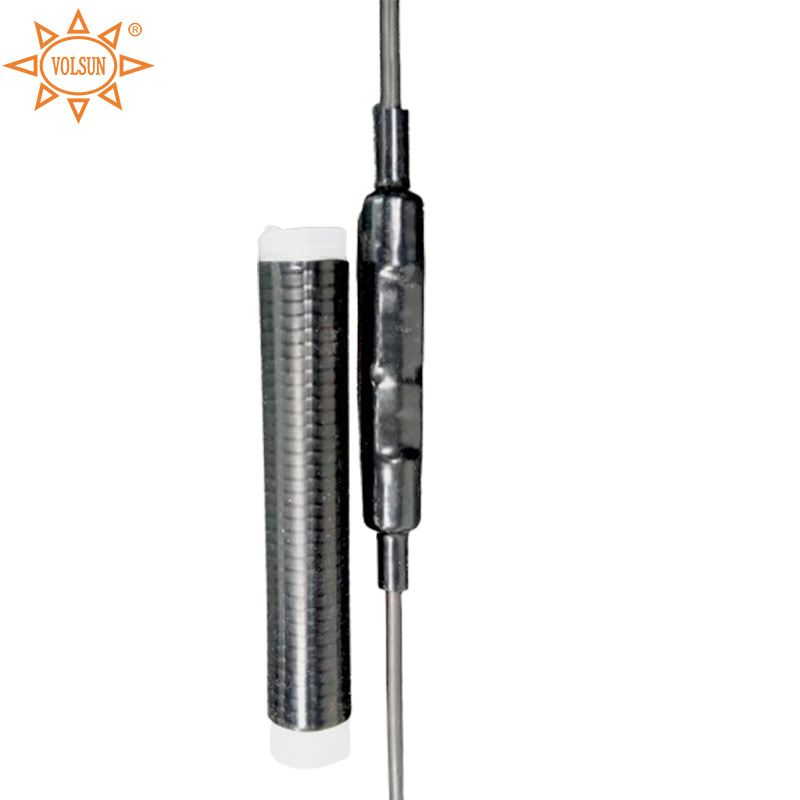

Unlike heat shrink tubing, cold shrink products require no heat source during installation. The pre-expanded tube is positioned over the connector assembly and automatically contracts after the support core is removed. This creates uniform radial pressure around the connection area.

• Resistance to Harsh Outdoor Conditions

Silicone materials offer excellent resistance to UV radiation, ozone, weathering, and salt spray exposure, making them suitable for long-term outdoor applications.

• Simplified Installation

No heat gun, torch, or electrical equipment is required, reducing installation complexity and improving consistency in the field.

• Long-Term Flexibility

Silicone rubber maintains elasticity across a wide temperature range, helping preserve sealing performance throughout the life of the solar system.

While photovoltaic connectors are designed for outdoor operation, harsh environmental conditions can still impact their long-term reliability. Moisture, salt spray, UV exposure, dust, and thermal cycling all contribute to connector degradation over time.

By adding an extra layer of protection with silicone cold shrink tubes, solar project owners can improve sealing performance, reduce maintenance risks, and enhance the overall reliability of their PV systems.
