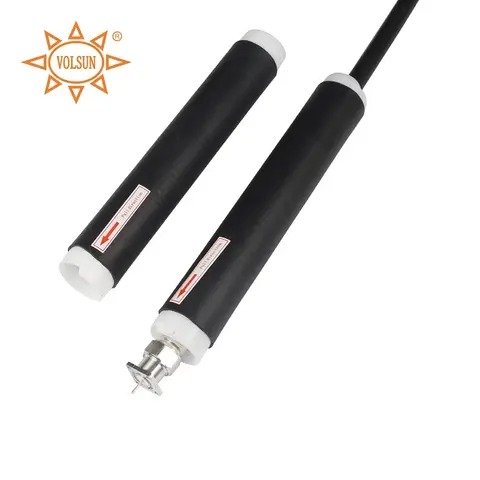

Cold shrink tubes are cutting-edge insulating products designed primarily for cable protection, electrical insulation, moisture sealing, and environmental shielding. Unlike heat shrink tubing that requires a heat source to activate, cold shrink tubes are pre-expanded elastomeric sleeves that shrink onto the substrate once the removable inner core is extracted. This unique shrink-on-demand characteristic makes them ideal for applications in challenging or hazardous environments where heat application is either inconvenient or dangerous.
Cold shrink tubing is made of high-performance silicone rubber or EPDM (ethylene propylene diene monomer), both offering excellent UV resistance, weatherability, and thermal stability. Because of its passive shrink feature, cold shrink tubing is extensively used in telecom, power distribution, and industrial cable assembly sectors.
Heat shrink tubes are made of thermoplastic materials like polyolefin that contract when exposed to high temperatures. This traditional tubing method has been a reliable solution for cable insulation, protection, strain relief, and bundling in various industries such as automotive, aerospace, and electronics.
When a heat shrink tube is placed over a cable joint or connector, applying heat—usually from a heat gun—activates the tubing, causing it to shrink uniformly around the underlying surface. It creates a tight, sealed, and protective layer that prevents physical damage and provides excellent insulation.
Though heat shrink tubing is popular for its versatility, it does require special tools and precautions for proper installation. Improper heat application can lead to uneven shrinkage, burns, or even component damage.
Understanding the core differences between cold shrink and heat shrink tubing is essential for choosing the right product for your specific application. Here’s a side-by-side comparison that breaks down the technical, environmental, and operational distinctions.
| Feature | Cold Shrink Tube | Heat Shrink Tube |
|---|---|---|
| Activation Method | No heat required; shrinks when inner core is removed | Requires external heat source to shrink |
| Material | Silicone or EPDM rubber | Polyolefin or other thermoplastics |
| Flexibility | Remains flexible after installation | Becomes rigid upon cooling |
| Installation Environment | Safe for hazardous/explosive zones | Requires controlled conditions |
| Reusability | Non-reusable | Generally non-reusable |
| UV/Weather Resistance | Excellent | Varies with material type |
Cold shrink tubes outperform heat shrink in specific environmental applications, particularly where safety, weatherability, and quick installation are priorities. Meanwhile, heat shrink tubing is often favored in electronics or confined assemblies where precision and rigidity matter.

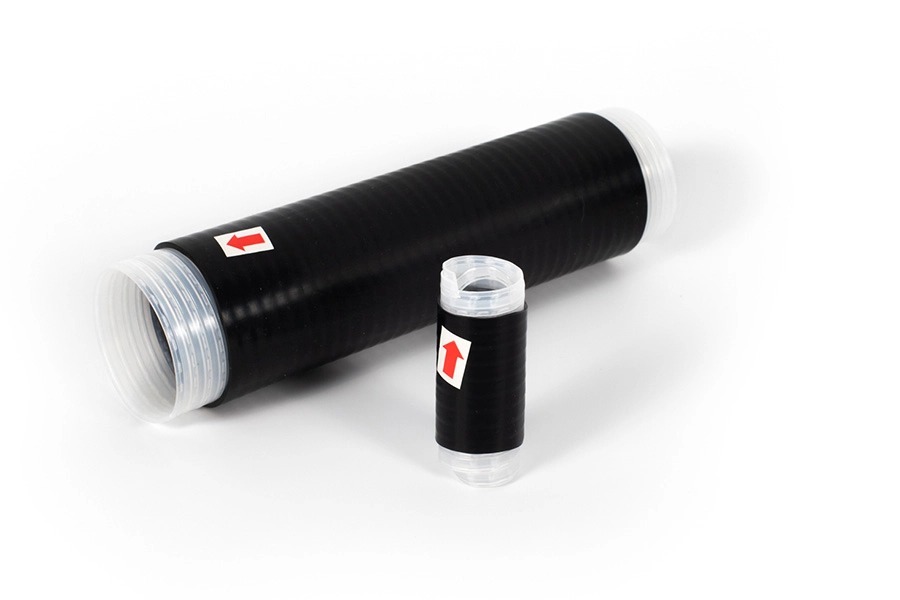

One of the most practical differences lies in the installation. Cold shrink tubing does not require any heat; the user simply pulls out the plastic spiral core, allowing the tube to collapse onto the component. This can be done in less than a minute and is suitable even for field work under challenging weather conditions.
In contrast, heat shrink tubing requires more preparation. The cable or joint must be clean and dry. A heat gun or blowtorch is then used to uniformly apply heat, which may be time-consuming and less feasible in field conditions or explosive environments. Additionally, an uneven application can lead to poor fit or damage.
In terms of labor efficiency and field suitability, cold shrink tubing takes the lead. Its tool-free and flame-free installation not only reduces potential hazards but also cuts down on training and deployment time.
Cold shrink tubes are specifically engineered for long-term reliability in harsh conditions. Their high-performance elastomeric materials are naturally resistant to ozone, UV radiation, and salt spray, making them ideal for outdoor and marine environments. Moreover, they can maintain elasticity and sealing performance across a wide range of temperatures, typically from -40°C to 90°C.
Heat shrink tubing, while versatile, may lose some of its protective qualities under UV exposure or in extreme cold unless treated with specific additives or coatings. Also, once it shrinks and becomes rigid, it might crack under thermal cycling or vibration, which could be a limitation in dynamic installations.
Thus, for applications requiring superior environmental resistance and flexibility, cold shrink tubes are the more dependable choice.
Telecommunication towers: Used for sealing and protecting RF coaxial cable joints.
Underground cable splicing: Offers moisture-proof insulation without heat application.
Renewable energy installations: Ideal for solar and wind power systems exposed to variable climates.
Railway and transportation: Effective in high-vibration environments.
Electronics and PCB: Widely used for wire bundling, strain relief, and color coding.
Automotive wiring harnesses: Provides a compact and neat insulation method.
Aerospace systems: Suitable for static electrical assemblies requiring high dielectric strength.
No. Once a cold shrink tube is installed and shrinks around a component, it cannot be reused. The shrink process is one-time and irreversible.
Yes, cold shrink tubes are suitable for both indoor and outdoor uses. Their flexibility, sealing ability, and ease of installation make them ideal for a wide variety of environments.
Heat shrink tubing is generally more affordable in terms of material cost. However, when considering installation time, labor, and safety equipment, cold shrink tubing can offer better long-term value, especially for large-scale field applications.
Yes. Because of its conforming nature and tight seal even under irregular surfaces, cold shrink tubing tends to offer superior waterproofing compared to some heat shrink options, particularly in fluctuating environmental conditions.
Both cold shrink and heat shrink tubes are effective insulation solutions, but their suitability depends heavily on the application environment, safety requirements, and operational constraints. If you're dealing with high-risk, outdoor, or field installations where heat tools are impractical or dangerous, cold shrink tube is undoubtedly the smarter choice.
On the other hand, if you're working in a controlled environment with small-scale electronic components or need precision insulation, heat shrink tubing remains a viable and cost-effective solution.
Ultimately, understanding the nuances between these two technologies ensures better performance, safer installations, and long-term protection for your electrical systems.
