Shrink tubes are essential components in various electrical and mechanical applications, providing insulation, protection, and environmental sealing. Selecting the appropriate size shrink tube is crucial for ensuring optimal performance and longevity of the application. Understanding how to determine the correct size can be challenging due to the variety of factors involved. This article delves into the comprehensive process of selecting the right size shrink tube, considering aspects such as material type, shrink ratios, and application requirements. Among the different types, the cold shrink tube has gained significant attention for its ease of installation and reliable performance.
Shrink tubes are polymer-based tubes that shrink radially when exposed to specific conditions, such as heat or mechanical release. They are widely used for insulation, strain relief, and environmental protection of cables and connectors. The two primary types are heat shrink tubes and cold shrink tubes. Heat shrink tubes require heat application to initiate the shrinking process, whereas cold shrink tubes rely on the release of an internal core to contract around the object.
Materials commonly used include polyolefin, fluoropolymers, and silicone rubber. The silicone rubber cold shrink tube is renowned for its excellent thermal stability, flexibility, and resistance to environmental factors, making it suitable for harsh conditions.
Shrink tubes are utilized in various industries, including telecommunications, automotive, aerospace, and marine sectors. They serve multiple functions such as insulating electrical connections, sealing against moisture ingress, providing mechanical protection, and bundling cables. The versatility of shrink tubes makes them indispensable in both industrial and consumer applications.
Selecting the correct size shrink tube is pivotal to ensure that it fits snugly over the component and provides the intended protection. An undersized tube may not fit over the component, while an oversized tube may not shrink sufficiently to form a secure seal. Incorrect sizing can lead to inadequate insulation, exposure to environmental elements, mechanical failure, and potential safety hazards.
For instance, in electrical applications, improper sizing can result in poor electrical insulation, leading to short circuits or electrical fires. In mechanical applications, it can compromise the integrity of the seal, allowing moisture or contaminants to penetrate, which may cause corrosion or degradation of components.
Accurate measurement is the first step in selecting the appropriate shrink tube size. The key measurements include the maximum diameter of the component before shrinkage and the minimum diameter after shrinkage. To measure the component:
Use a caliper or measuring tape to determine the largest diameter of the component.
Consider any irregularities or connectors that may increase the diameter.
Determine the length of the area that needs coverage, adding extra length to accommodate for shrinkage and to ensure complete coverage.
Once these measurements are obtained, you can select a shrink tube with an expanded diameter that accommodates the largest measurement and a recovered diameter that provides a snug fit on the smallest measurement.
Shrink ratio is a critical factor in sizing. It represents the degree to which the tube will shrink from its expanded state to its recovered state. Common shrink ratios include 2:1, 3:1, and 4:1. A higher shrink ratio allows the tube to accommodate a greater range of diameters, which is especially useful for components with varying diameters or irregular shapes.
For example, a 3:1 shrink ratio means the tube will shrink to one-third of its original diameter. If the largest diameter of your component is 9mm, you would select a shrink tube with an expanded diameter of at least 9mm and a recovered diameter small enough to fit tightly around the smallest diameter.
Choosing the appropriate shrink ratio depends on the application and the range of diameters involved. A higher shrink ratio provides greater flexibility and can accommodate irregular shapes, but may result in thicker walls after shrinking, which could be a concern in tight spaces. Conversely, a lower shrink ratio results in a thinner wall and is suitable for components with consistent diameters.
Consider the following when selecting the shrink ratio:
Component Variability: For components with significant diameter differences, a higher shrink ratio is advisable.
Space Constraints: In applications where space is limited, a lower shrink ratio with thinner walls may be preferable.
Environmental Factors: Thicker walls provide better insulation and protection against harsh environments.
The material of the shrink tube impacts its performance characteristics, including temperature resistance, flexibility, chemical resistance, and durability. Polyolefin is the most common material, offering a balance of flexibility and resistance to environmental factors. For applications requiring higher temperature resistance or flexibility, silicone rubber cold shrink tubes are ideal.
The silicone rubber cold shrink tube provides excellent resistance to UV radiation, ozone, and extreme temperatures, making it suitable for outdoor applications and harsh environments. Its inherent flexibility allows it to maintain a tight seal even as the component expands or contracts due to temperature changes.
Silicone rubber cold shrink tubes offer several benefits over traditional materials:
Ease of Installation: They do not require heat, reducing the risk of damage to sensitive components.
Environmental Resistance: High resistance to UV light, ozone, and corrosive substances.
Temperature Flexibility: Remain flexible over a wide temperature range, maintaining a secure seal.
Durability: Excellent longevity, reducing the need for maintenance or replacement.
Understanding the differences between cold shrink and heat shrink tubes is essential in making the right selection. Heat shrink tubes require a heat source for installation, which may not be practical in all situations. They are suitable for applications where heat application is safe and feasible.

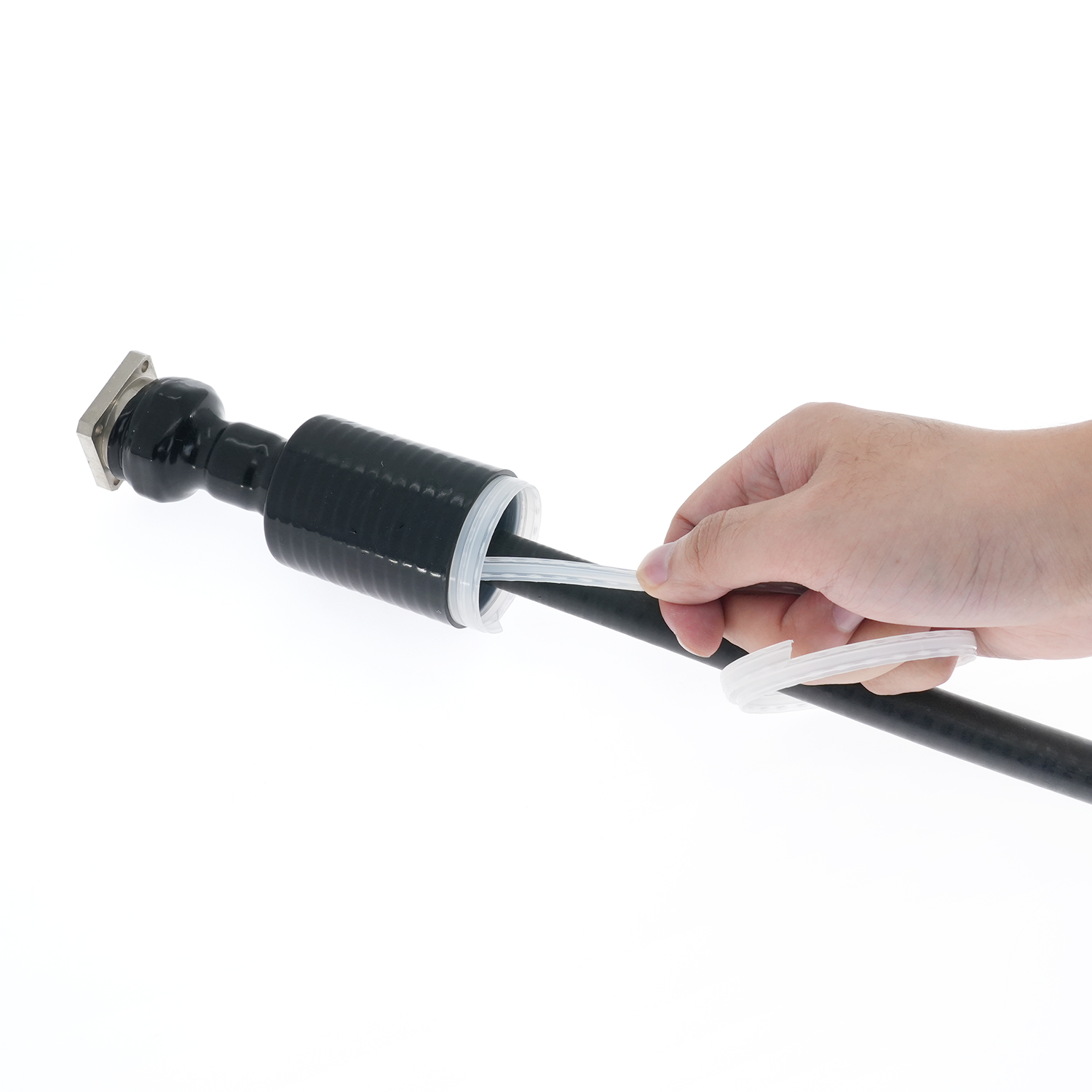

Cold shrink tubes, on the other hand, are pre-expanded and held in place by an internal core that is removed during installation. This makes them ideal for environments where heat cannot be applied or where components are sensitive to heat. Cold shrink tubes provide consistent pressure and sealing without the need for special tools or equipment.
For more information on heat shrink tube options and their applications, it is important to assess the specific requirements of your project.
Heat shrink tubes also have their own set of advantages:
Variety of Materials: Available in a wide range of materials for different applications.
Customized Sizes: Can be selected with specific expanded and recovered diameters for precise fits.
Cost-Effective: Generally more economical, especially for large-scale applications.
Pricing is an important factor when selecting shrink tubes. The cost of cold shrink tubes may be higher than heat shrink tubes due to the materials and manufacturing processes involved. However, the benefits, such as ease of installation and reliability, often justify the investment.
Factors influencing the cold shrink tube price include:
Material Quality: Premium materials like silicone rubber offer superior performance but at a higher cost.
Size and Shrink Ratio: Larger sizes and higher shrink ratios may increase the price.
Quantity: Bulk purchases often reduce the unit price.
Manufacturer and Supplier: Reputable suppliers provide quality assurance and support, which may reflect in the price.
Conducting a cost-benefit analysis helps in determining whether the advantages of cold shrink tubes align with budget constraints and project requirements.
To illustrate the importance of proper sizing and selection, consider the following examples:
A telecommunications company needed to protect outdoor coaxial connectors from environmental degradation. They opted for silicone rubber cold shrink tubes due to their UV resistance and ease of installation without heat. By selecting the correct size based on the connector dimensions and utilizing a suitable shrink ratio, they achieved a reliable seal, reducing maintenance costs and downtime.
An automotive manufacturer required insulation for wiring harnesses within engine compartments, exposed to high temperatures and chemicals. Heat shrink tubes made from specialized materials were selected. Proper sizing ensured a snug fit over connectors and cables, providing long-term reliability in harsh conditions.
According to industry reports, improper sizing accounts for over 20% of shrink tube failures, leading to increased production costs and safety risks. Companies that implement thorough sizing protocols see a reduction in installation errors by up to 30%, highlighting the importance of accurate measurements and selection.
Industry experts emphasize the following best practices:
Accurate Measurement: Invest time in precise measurements, considering all dimensions and potential variations.
Material Compatibility: Choose materials that are compatible with the environmental conditions and the components involved.
Consultation with Suppliers: Engage with reputable suppliers who can provide technical support and guidance.
Testing and Validation: Perform tests to validate the performance of the shrink tubes in simulated conditions before full-scale implementation.
Selecting the appropriate size shrink tube is a critical step that influences the effectiveness and reliability of the application. By understanding the types of shrink tubes, considering shrink ratios, accurately measuring components, and selecting suitable materials like cold shrink tubes, professionals can ensure optimal performance. The investment in proper sizing and high-quality materials often results in long-term benefits, including reduced maintenance costs, enhanced safety, and improved system integrity.
Incorporating expert recommendations and adhering to best practices facilitates successful implementation across various industries. As technology advances, staying informed about the latest developments in shrink tube materials and applications is essential for maintaining a competitive edge and ensuring safety and efficiency in all projects.
