When it comes to thermal management in electronics, few components are as essential yet overlooked as thermal interface materials (TIMs). Among these, thermal pads play a crucial role. If you've ever opened up a computer or a graphics card, chances are you've encountered a soft, rubbery pad between the chip and the heat sink. These are thermal pads, and they help to transfer heat away from sensitive components. But not all thermal pads are created equal. Two major types dominate the market: silicone thermal pads and non-silicone thermal pads. But what’s the real difference between them? Let’s dive into this technical comparison.

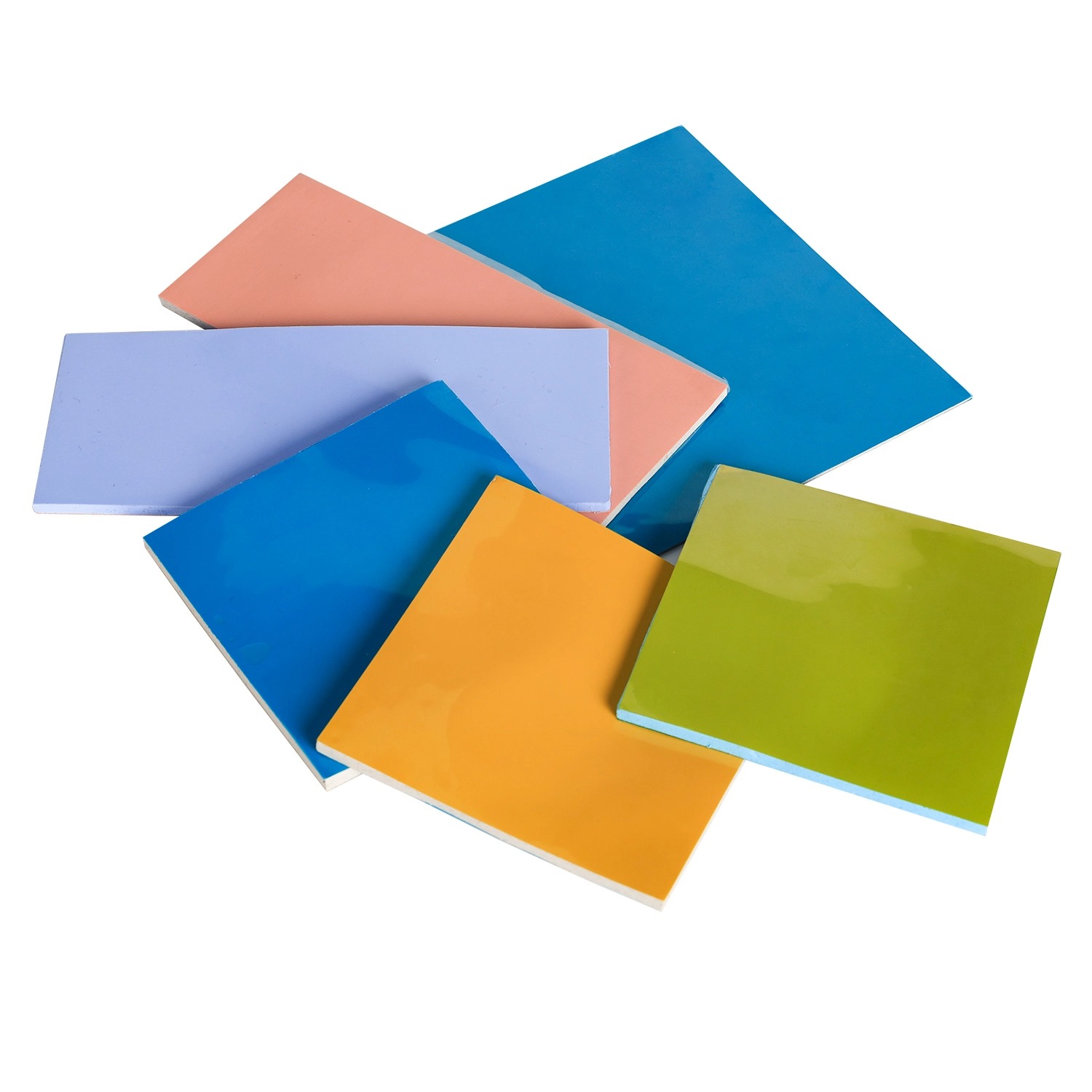

Silicone thermal pads are composed primarily of silicone elastomers infused with thermally conductive materials such as ceramic fillers (e.g., alumina, boron nitride). The silicone base gives these pads their soft, rubber-like flexibility, allowing them to conform easily to uneven surfaces. This is critical in closing air gaps between surfaces, which can otherwise act as thermal insulators.
Silicone pads are known for:
Excellent temperature resistance: Typically functional between -50°C to +200°C.
Durability and longevity: Silicone does not dry out or degrade easily.
Flexibility: They accommodate uneven surfaces better.
Low compression set: Retains shape under continuous pressure.
These properties make them ideal for environments where thermal stability, electrical insulation, and durability are required.
Non-silicone thermal pads are made from alternative polymers such as polyurethane, acrylic, or epoxy resins, also embedded with thermally conductive fillers. They are designed for applications where silicone contamination must be avoided—for instance, in optics or certain automotive electronics where outgassing can be a serious concern.
Lower outgassing: Ideal for sensitive environments.
Silicone-free formulation: No risk of material migration.
Moderate temperature tolerance: Usually up to 150°C.
Good dielectric properties: Suitable for high-voltage electronics.
Although they lack some of the high-temperature capabilities of silicone pads, they compensate by offering a cleaner, safer alternative for specific use-cases.
To clearly understand the differences, let’s compare them side-by-side:
| Feature | Silicone Thermal Pad | Non-Silicone Thermal Pad |
|---|---|---|
| Base Material | Silicone Elastomer | Polyurethane, Acrylic, or Epoxy |
| Max Operating Temperature | ~200°C | ~150°C |
| Outgassing Risk | Moderate | Low |
| Compression Flexibility | High | Moderate |
| Electrical Insulation | Excellent | Good |
| Cost | Generally Higher | Usually Lower |
| Reusability | High | Limited |
The primary trade-offs revolve around temperature tolerance, contamination risk, and cost. Silicone pads offer better long-term stability and heat performance, while non-silicone options are better suited for contamination-sensitive environments.
Silicone thermal pads are commonly found in:
Consumer electronics (smartphones, tablets, laptops)
High-performance computing (CPU/GPU cooling)
Automotive ECUs
Power supplies
LED lighting systems
These environments demand reliable performance under high thermal loads, making silicone an ideal choice.
Non-silicone pads are favored in:
Optical devices (where outgassing might fog lenses)
Aerospace and aviation
Semiconductor clean rooms
Medical devices
Automotive sensors
Whenever the risk of silicone migration or contamination is unacceptable, non-silicone thermal pads become the go-to solution.
Not necessarily. While silicone thermal pads often offer better thermal conductivity, non-silicone variants are engineered to provide respectable performance where cleanliness and material stability are more critical than maximum heat transfer.
Yes, silicone pads are generally resilient and reusable, provided they’re not torn or deformed during removal. This can reduce long-term maintenance costs.
Silicone pads are electrically insulating and thermally conductive, making them suitable for most electronics. However, in optical or sensor-based applications, it's better to opt for non-silicone types due to potential outgassing.
Evaluate the following factors:
Temperature range of your application
Risk of contamination
Surface conformity requirements
Cost constraints
Electrical insulation needs
Choosing the right thermal pad isn't just about performance—it's about compatibility with your entire system.
The choice between silicone and non-silicone thermal pads ultimately comes down to the demands of your application. If your system operates in high-heat environments and requires maximum durability and flexibility, silicone thermal pads are likely your best bet. However, if you’re working in a contamination-sensitive area like optics or aerospace electronics, non-silicone pads offer a clean, safe alternative.
Both types serve the same fundamental purpose: efficient thermal transfer and system reliability. But their suitability depends on the unique requirements of the environment in which they are deployed.
When in doubt, consult with a thermal management specialist who can help evaluate the thermal conductivity, compressibility, and dielectric needs of your system. Making the right choice can vastly improve your product’s performance, longevity, and safety.
