TZRS-FEP
VOLSUN

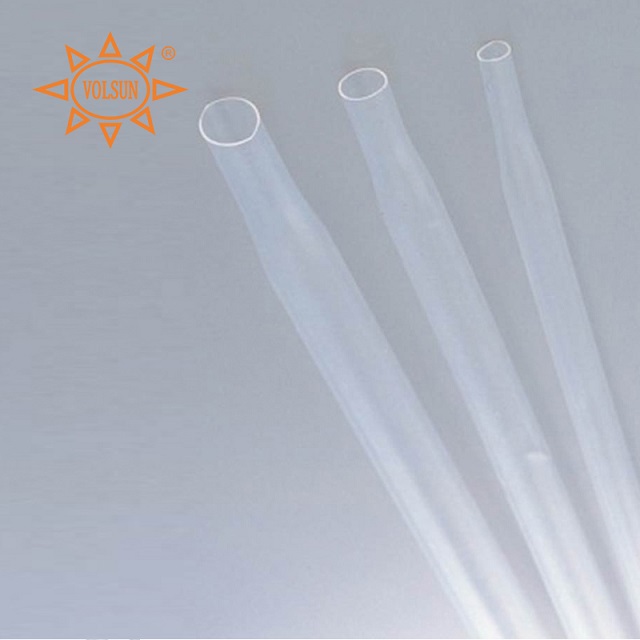

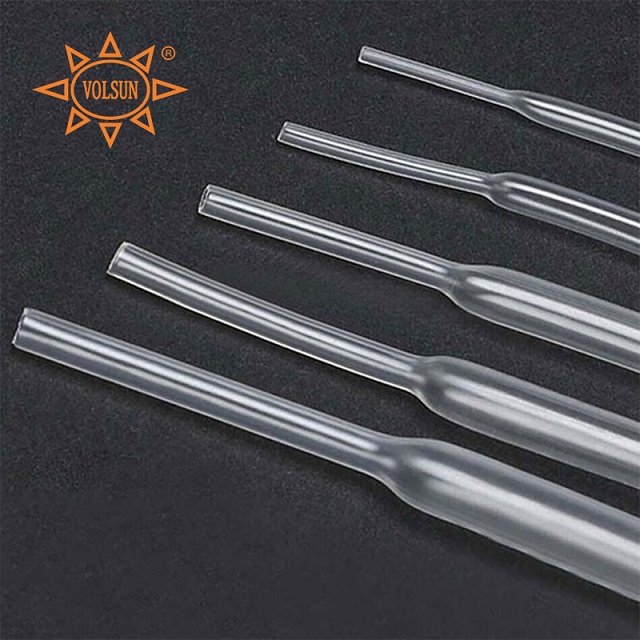

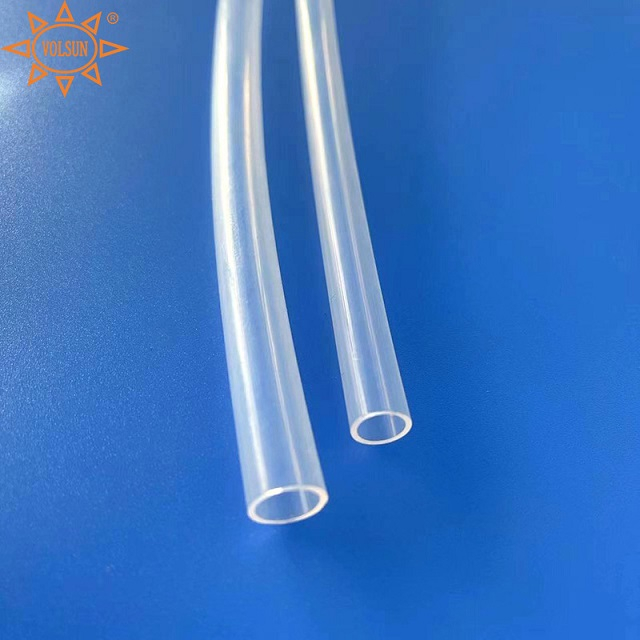

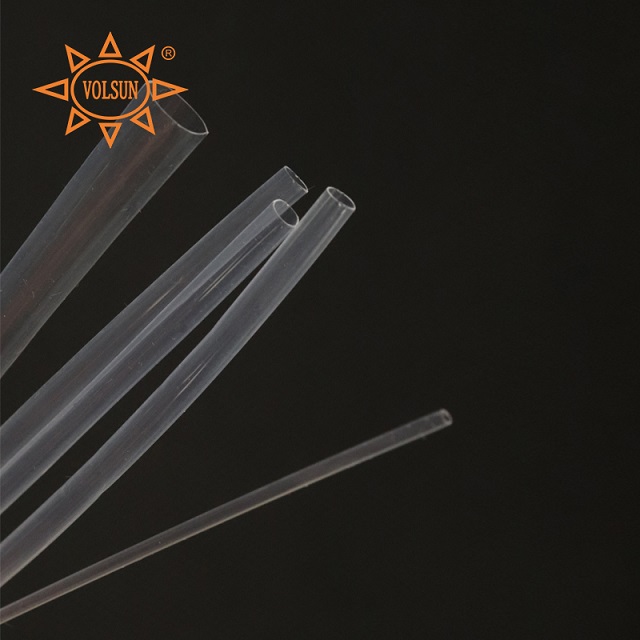

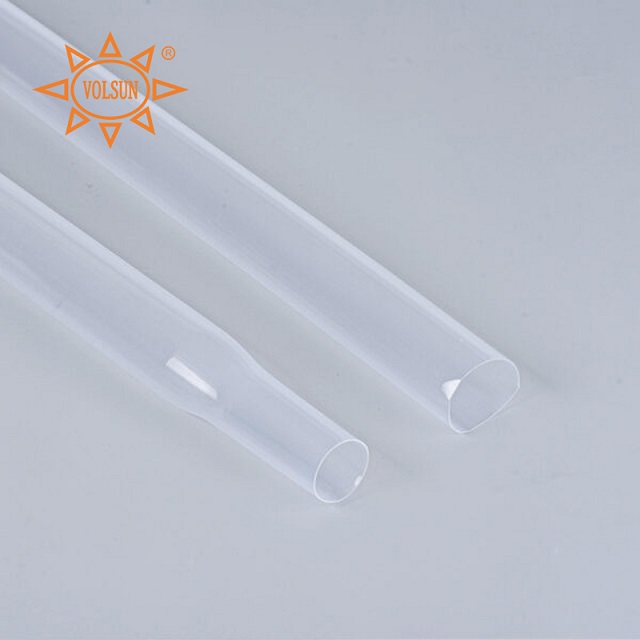

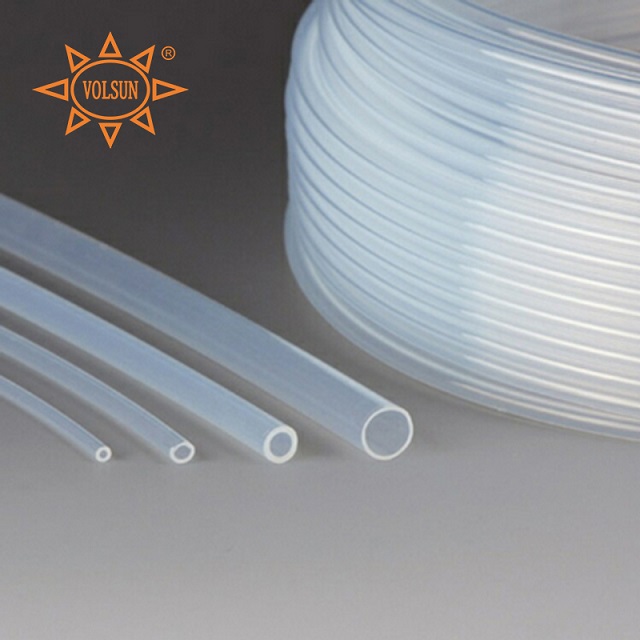

High-Performance Heat Shrink Tube is a premium solution engineered for extreme operational demands in aerospace, military, and heavy industries. Constructed from advanced fluoropolymers (e.g., PTFE, FEP) or radiation-crosslinked polyolefin with adhesive liners, this tubing delivers unmatched thermal stability, chemical inertness, and mechanical strength. Capable of enduring temperatures from -65°C to 300°C, it is ideal for applications involving aggressive chemicals, high-pressure fluids, or prolonged outdoor exposure. Compliant with MIL-DTL-23053/4 and ISO 10993 standards, it ensures reliability in mission-critical systems, from jet engines to deep-sea exploration equipment.
1. Extreme Temperature Tolerance: Maintains structural integrity in cryogenic environments or near combustion sources, with optional ceramic-coated variants for temperatures exceeding 500°C.
2. Chemical Immunity: Resists acids, alkalis, hydraulic fluids, and hydrocarbon fuels, validated by NACE and ASTM G31 testing for corrosion-prone industries.
3. Heavy-Duty Construction: Multi-layered designs incorporate abrasion-resistant outer layers and inner adhesive liners for hermetic sealing in submerged or pressurized systems.
4. High Shrink Ratios: Offers 4:1 or 6:1 shrinkage ratios to accommodate large-diameter connectors, pipes, and irregular surfaces in industrial machinery.
5. EMI/RFI Shielding: Metal-coated variants (e.g., copper, aluminum) provide electromagnetic interference protection for sensitive avionics and medical devices.
6. Certified Safety: Meets FAA, NASA, and IEC 60601 requirements for use in regulated environments like aircraft cabins and sterile medical facilities.
High-Performance Heat Shrink Tubes are vital in high-stakes industries:
· Aerospace: Insulating fuel lines, avionics, and engine sensors in commercial jets and satellites exposed to stratospheric conditions.
· Oil and Gas: Sealing subsea wellhead equipment, refinery sensors, and LNG pipeline joints against H2S and saltwater corrosion.
· Military Hardware: Armoring communication cables, missile guidance systems, and armored vehicle electronics in combat zones.
· Medical Technology: Encasing MRI coils, endoscope wiring, and robotic surgery tools requiring autoclave sterilization.
· Nuclear Power: Reinforcing reactor control rods and radiation-resistant instrumentation cables in power plants.
· High-Speed Rail: Protecting overhead catenary systems and brake line connectors in bullet trains operating at 300+ km/h.
Item | Typical value |
Tensile strength | ＞21MPa |
Breakdown strength | ＞30kV/mm |
Flame retardant rating | VW-1 |
Longitudinal shrinkage rate | ±10% |
Type | presystole | post-systole | 包装（米/条） | ||
ID（mm） | H（mm） | ID（mm） | H（mm） | ||
Φ3.0 | 3.0 | 0.2±0.05 | 2.3±0.15 | 0.25±0.05 | 1 |
Φ3.5 | 3.5 | 0.2±0.05 | 2.7±0.15 | 0.25±0.05 | 1 |
Φ4.0 | 4.0 | 0.2±0.05 | 3.1±0.15 | 0.25±0.05 | 1 |
Φ4.5 | 4.5 | 0.2±0.05 | 3.5±0.15 | 0.25±0.05 | 1 |
Φ5.0 | 5.0 | 0.2±0.05 | 3.9±0.15 | 0.25±0.05 | 1 |
Φ5.5 | 5.5 | 0.2±0.05 | 4.3±0.15 | 0.25±0.05 | 1 |
Φ6.0 | 6.0 | 0.2±0.05 | 4.7±0.15 | 0.25±0.05 | 1 |
Φ6.5 | 6.5 | 0.2±0.05 | 5.0±0.2 | 0.25±0.05 | 1 |
Φ7.0 | 7.0 | 0.2±0.05 | 5.4±0.2 | 0.25±0.05 | 1 |
Φ7.5 | 7.5 | 0.2±0.05 | 5.8±0.2 | 0.25±0.05 | 1 |
Φ8.0 | 8.0 | 0.2±0.05 | 6.2±0.2 | 0.25±0.05 | 1 |
Φ8.5 | 8.5 | 0.2±0.05 | 6.6±0.2 | 0.25±0.05 | 1 |
Φ9.0 | 9.0 | 0.2±0.05 | 7.0±0.2 | 0.25±0.05 | 1 |
Φ9.5 | 9.5 | 0.2±0.05 | 7.3±0.2 | 0.25±0.05 | 1 |
Φ10.0 | 10.0 | 0.2±0.05 | 7.7±0.3 | 0.25±0.05 | 1 |
Φ11.0 | 11.0 | 0.2±0.05 | 8.5±0.5 | 0.25±0.05 | 1 |
Φ12.0 | 12.0 | 0.2±0.05 | 9.3±0.5 | 0.25±0.05 | 1 |
Φ13.0 | 13.0 | 0.2±0.05 | 10.0±0.5 | 0.25±0.05 | 1 |
Φ14.0 | 14.0 | 0.2±0.05 | 10.8±0.5 | 0.25±0.05 | 1 |
Φ15.0 | 15.0 | 0.2±0.05 | 11.6±0.5 | 0.25±0.05 | 1 |
Φ16.0 | 16.0 | 0.2±0.05 | 12.4±0.5 | 0.25±0.05 | 1 |
Φ17.0 | 17.0 | 0.2±0.05 | 13.1±0.5 | 0.25±0.05 | 1 |
Φ18.0 | 18.0 | 0.2±0.05 | 13.9±0.5 | 0.25±0.05 | 1 |
Φ19.0 | 19.0 | 0.2±0.05 | 14.6±0.5 | 0.25±0.05 | 1 |
Φ20.0 | 20.0 | 0.2±0.05 | 15.4±0.5 | 0.25±0.05 | 1 |
