Suzhou Volsun Electronics Technology Co., Ltd.
| Quantity: | |
|---|---|
RUBLS-SILIC
VOLSUN
UV Resistant Transparent Cold Shrink Tubing for Cable Joint is a high-performance solution designed for the insulation, sealing, and protection of cable joints and connectors. It is particularly ideal for applications in harsh environments where exposure to moisture, UV rays, or extreme temperatures is common. The tubing is made of a durable material that provides excellent resistance to UV rays, moisture, salt mist, and other environmental stressors.
This cold shrink tubing is available in transparent and black versions, offering versatility for different usage requirements. Both types are produced through the same process and deliver identical performance in terms of sealing, insulation, and durability.

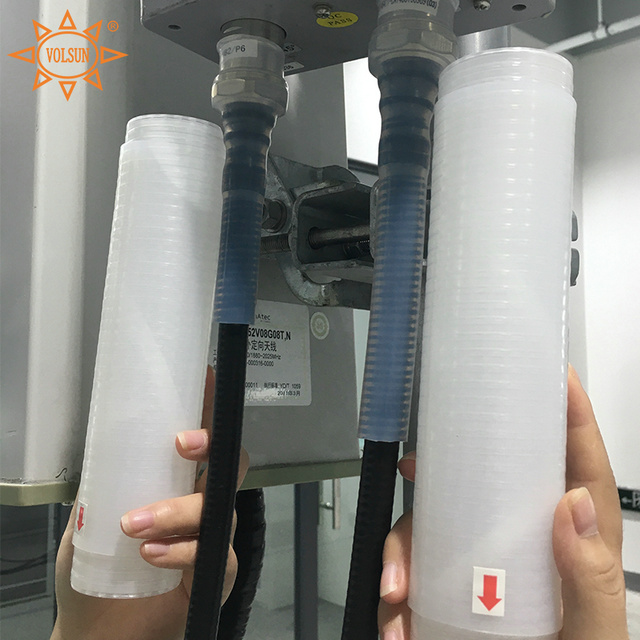

The tubing's key features include its excellent shrink ratio of 4:1, enabling it to fit a variety of cable sizes. Additionally, it maintains pressure even after years of exposure and aging, ensuring long-term protection for the components it covers. It is widely used for insulating and sealing cable joints, communication base station connectors, and other types of equipment joints.
Use Temperature: -60℃ to 200℃
Shrink Ratio: 4:1 or so. Suitable for various cable sizes due to its excellent ability to shrink
Durable and maintains pressure even after years of aging and exposure, offers a tight sealing against moisture and water
Strong resistance to weather, ozone aging, ultraviolet rays, and salt mist corrosion.
Available Color: Clear, black, white, grey, etc.
Properties | Typical Data | Test method |
Shore Hardness | 40±5 | GB/T 531-2008 |
Tensile Strength | ≥9.0MPa | GB/T 528-2009 |
100% Stress at Definite Elongation | ≤1.2MPa | GB/T 528-2009 |
200% Stress at Definite Elongation | ≤2.0MPa | GB/T 528-2009 |
Elongation at Break | ＞800% | GB/T 528-2009 |
Tear Strength | ≥35kN/m | GB/T 529-2008 |
Size | Min Cable Outer Diameter (mm) | Max Cable Outer Diameter (mm | Full Recovered Length (mm) |
VS-18*76 | 6.0 | 13.0 | 76 |
VS-20*25 | 6.0 | 15.0 | 25 |
VS-20*60 | 6.0 | 15.0 | 60 |
VS-25*76 | 8.0 | 19.0 | 76 |
VS-28*100 | 9.0 | 22.0 | 100 |
VS-28*140 | 9.0 | 22.0 | 140 |
VS-32*180 | 10.0 | 27.0 | 180 |
VS-40*140 | 12.0 | 33.0 | 140 |
VS-40*150 | 12.0 | 33.0 | 150 |
VS-40*152 | 12.0 | 33.0 | 152 |
VS-40*180 | 12.0 | 33.0 | 180 |
VS-45*203 | 13.0 | 39.0 | 203 |
VS-53*152 | 15.0 | 46.0 | 152 |
VS-65*350 | 21.0 | 58.0 | 350 |
VS-80*305 | 25.0 | 72.0 | 305 |
Remark：Special sizes & packing are available on request.
Q1: What is UV Resistant Transparent Cold Shrink Tubing for Cable Joint used for?
UV Resistant Transparent Cold Shrink Tubing is primarily used for insulating and sealing cable joints and connectors. It offers excellent protection against environmental elements like moisture, UV rays, and extreme temperatures, making it ideal for applications in communication base stations, electrical cables, and various other industrial equipment.
Q2: What are the main features of this cold shrink tubing?
The key features include:
Temperature Range: -60℃ to 200℃, allowing for use in a wide range of environments.
Shrink Ratio: 4:1, ensuring the tubing can adapt to various cable sizes.
Durability: Resistant to aging, moisture, and weather, maintaining tight sealing over time.
UV Resistance: Offers protection against ultraviolet rays, preventing degradation.
Color Options: Transparent, black, white, grey, and others available depending on customization needs.
Q3:What is the shrink ratio of the tubing?
The shrink ratio of the UV resistant transparent cold shrink tubing is approximately 4:1, making it highly flexible and adaptable to different cable sizes. This allows the tubing to be used in various cable joint applications.
Q4:Can the tubing maintain pressure over time?
Yes, the cold shrink tubing is designed to maintain pressure even after years of aging and exposure to harsh environmental factors. It provides a tight sealing against moisture and water, ensuring the protection of cables and connectors over time.
Q5:Is the cold shrink tubing resistant to environmental factors?
Yes, this tubing has strong resistance to a range of environmental factors, including:
UV rays: Prevents degradation due to prolonged exposure to sunlight.
Weather and ozone aging: Offers excellent weather resistance, ensuring the tubing remains effective in outdoor applications.
Salt mist corrosion: Highly resistant to salt mist, making it ideal for coastal or industrial environments where corrosion is a concern.
