Suzhou Volsun Electronics Technology Co., Ltd.
| Quantity: | |
|---|---|
SBRS-125G(2X)(3X)(4X)
VOLSUN

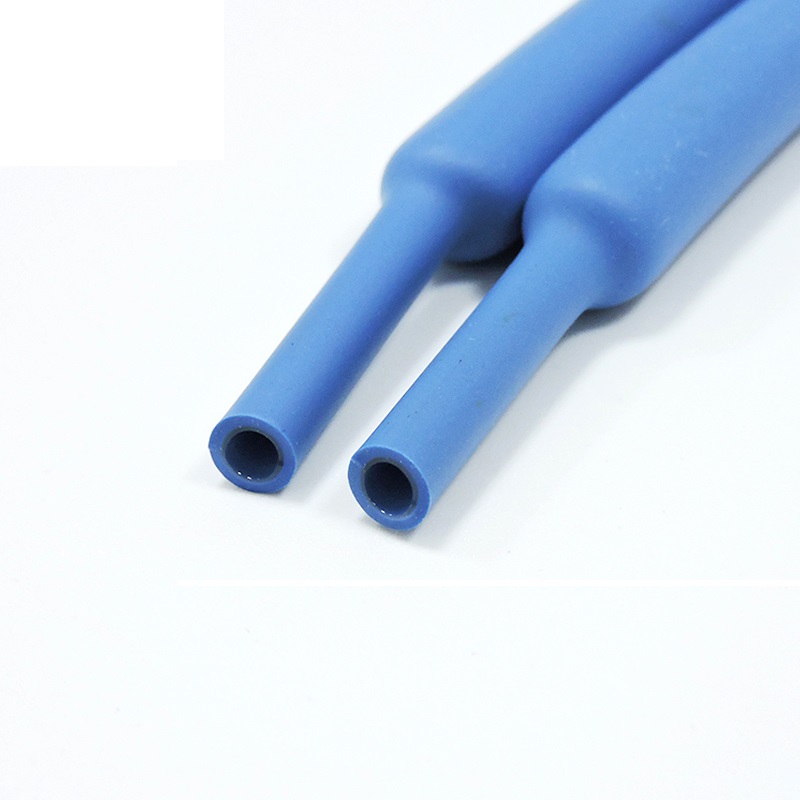

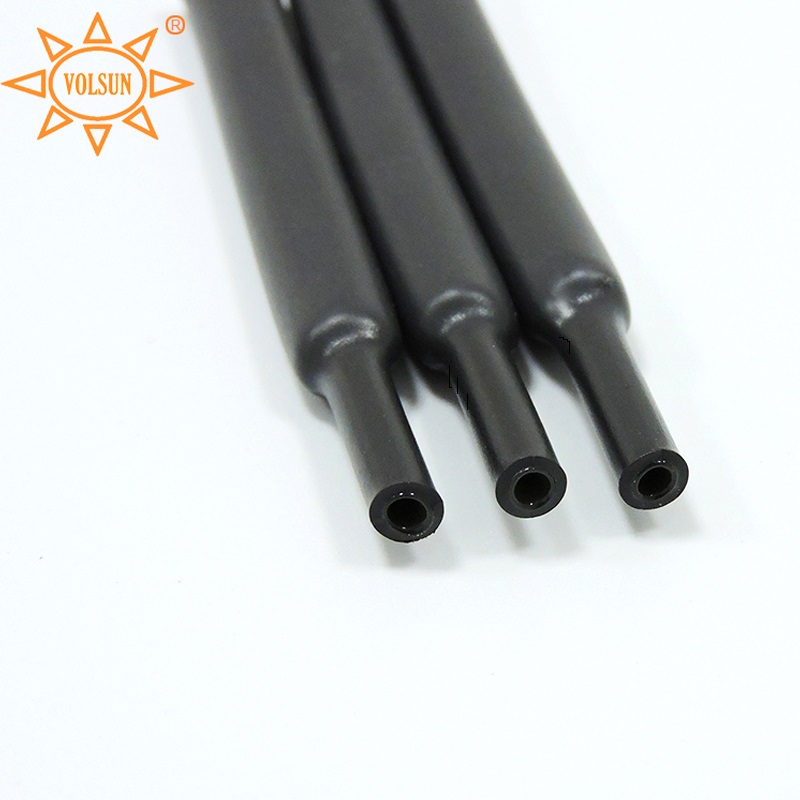

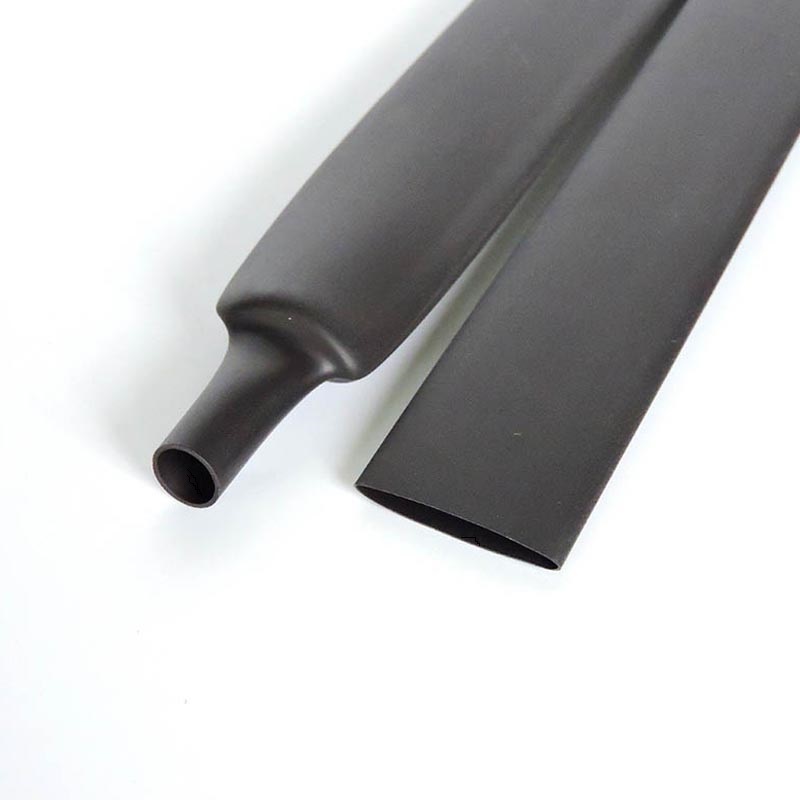

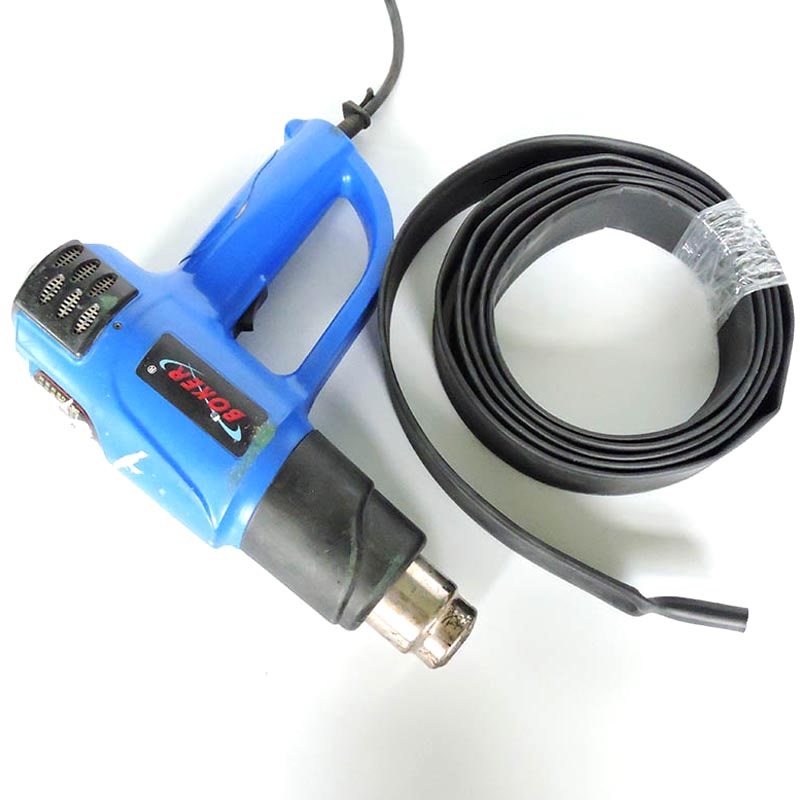

High Shrink Ratio 125G Dual Wall for Sealing Insulation is an advanced heat shrink tubing designed to provide excellent insulation, sealing, and protection for various industrial applications. It is made from a combination of crosslinked polyolefin material and a double-layered hot melt adhesive. The outer layer consists of polyolefin, while the inner layer features a hot melt adhesive that enhances sealing strength and absorbs mechanical strain. This unique structure makes it ideal for insulating, sealing, waterproofing, and protecting wires, cables, wire harnesses, and metal pipes from corrosion and leaks.
The product’s dual-wall construction offers significant advantages in terms of insulation and corrosion resistance. The inner hot melt adhesive layer ensures a strong, tight seal, preventing moisture, dust, and contaminants from entering sensitive areas. This high shrink ratio tubing (available in 2:1, 3:1, and 4:1) offers versatility to fit a wide range of wire and cable sizes, providing a secure and durable solution.

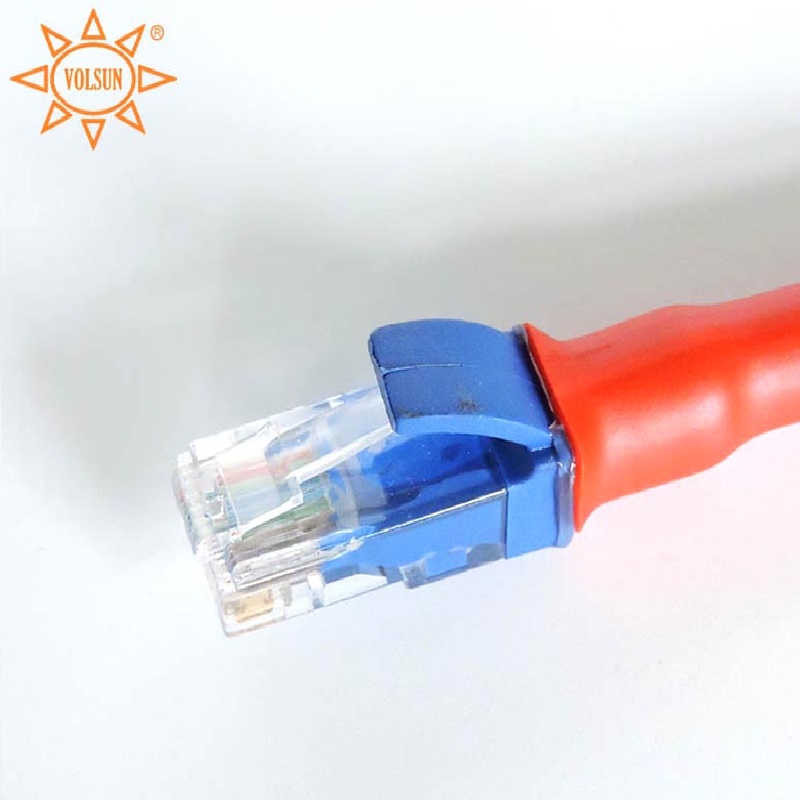

The High Shrink Ratio 125G Dual Wall for Sealing Insulation is perfect for use in electronics, automotive, telecommunications, and construction industries, where reliable sealing and insulation are essential to ensure long-lasting protection from environmental factors like moisture, UV rays, and mechanical wear.
Heat shrink ratio: 2:1，3:1, 4:1
Flexible, fireproofing, environmentally friendly, UV resistance
Shrink temperature: 70℃ ~ 125℃
Using temperature: -45℃ ~ 125℃
Compliance RoHS
Standard color: black, customization for other colors is available.
Item | Typical value | Test method |
Tensile Strength | ≥10.4MPa | ASTM D 2671 |
Elongation at Break | ≥200% | ASTM D 2671 |
Tensile strength after thermal aging | ≥7.3MPa | 158℃×168h |
Elongation at break after thermal aging | ≥100% | 158℃×168h |
Axial rate of change | -8～+8% | ASTM D 2671 |
Flame retardancy | pass | ASTM D 2671 B |
Breakdown strength | ≥15kV/mm | IEC 60243 |
Volume resistivity | ≥1014Ω.cm | IEC 60093 |
Item | Typical value | Test method |
Softening point | 95±5℃ | ASTM E 28 |
Water absorption | ＜0.2% | ASTM D 570 |
Peel strength (adhesive to PE) | ≥120N/25mm | ASTM D 1000 |
Peel strength | ≥80N/25mm | ASTM D 1000 |
Type |

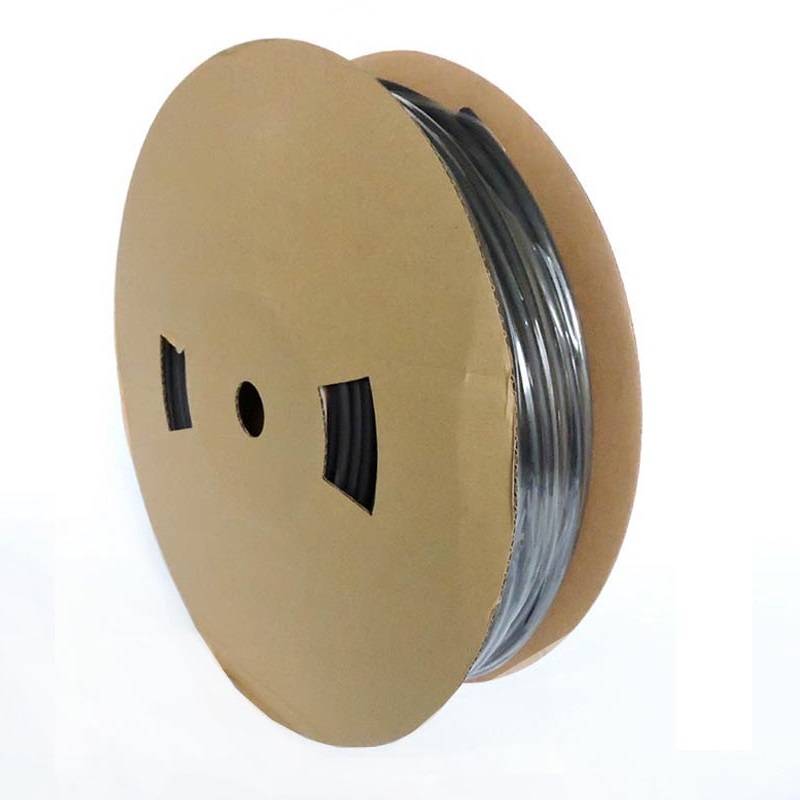

Supply bore D(mm) | Full recovered size (mm) | Standard packing (meter/plate, meter/pcs) | ||
Inner diameter | Average total wall thickness w1 | Adhesive wall thickness w2 | |||
Φ1.6 | ≥1.6 | ≤0.80 | 0.60±0.3 | 0.30±0.2 | 200 |
Φ2.4 | ≥2.4 | ≤1.20 | 0.70±0.3 | 0.35±0.2 | 200 |
Φ3.2 | ≥3.2 | ≤1.60 | 0.70±0.3 | 0.35±0.2 | 200 |
Φ4.8 | ≥4.8 | ≤2.40 | 0.80±0.3 | 0.40±0.2 | 100 |
Φ6.4 | ≥6.4 | ≤3.20 | 0.80±0.3 | 0.40±0.2 | 100 |
Φ7.9 | ≥7.9 | ≤3.90 | 0.90±0.3 | 0.45±0.2 | 100 |
Φ9.5 | ≥9.5 | ≤4.80 | 0.90±0.3 | 0.45±0.2 | 50 |
Φ12.7 | ≥12.7 | ≤6.40 | 0.95±0.4 | 0.45±0.2 | 25/1.22 |
Φ15.9 | ≥15.9 | ≤7.90 | 0.95±0.4 | 0.45±0.2 | 25/1.22 |
Φ19.1 | ≥19.1 | ≤9.50 | 1.00±0.4 | 0.45±0.2 | 25/1.22 |
Φ25.4 | ≥25.4 | ≤12.7 | 1.10±0.4 | 0.50±0.2 | 25/1.22 |
Φ31.8 | ≥31.8 | ≤15.0 | 1.15±0.4 | 0.50±0.2 | 25/1.22 |
Φ44.5 | ≥44.5 | ≤22.3 | 1.35±0.4 | 0.50±0.2 | 25/1.22 |
Φ50.8 | ≥50.8 | ≤25.4 | 1.50±0.4 | 0.60±0.2 | 25/1.22 |
Type |
Supply bore D(mm) | Full recovered size (mm) | Standard packing (meter/plate, meter/pcs) | |||
Inner diameter | Average total wall thickness w1 | Adhesive wall thickness w2 | ||||
Φ2.4 | ≥2.4 | ≤0.80 | 0.80±0.30 | 0.40±0.2 | 200 | |
Φ3.2 | ≥3.0 | ≤1.00 | 0.90±0.30 | 0.30±0.1 | 200 | |
Φ4.8 | ≥4.8 | ≤1.60 | 1.05±0.30 | 0.40±0.2 | 100 | |
Φ6.4 | ≥6.0 | ≤2.00 | 1.25±0.30 | 0.30±0.1 | 100 | |
Φ7.9 | ≥7.9 | ≤2.70 | 1.35±0.30 | 0.45±0.2 | 100 | |
Φ9.5 | ≥9.0 | ≤3.00 | 1.45±0.30 | 0.50±0.1 | 50 | |
Φ12.7 | ≥12.7 | ≤4.20 | 1.65±0.30 | 0.50±0.2 | 25/1.22 | |
Φ15.0 | ≥15.0 | ≤5.20 | 1.80±0.30 | 0.55±0.3 | 25/1.22 | |
Φ19.1 | ≥19.1 | ≤6.30 | 1.95±0.30 | 0.60±0.3 | 25/1.22 | |
Φ25.4 | ≥25.4 | ≤8.50 | 2.00±0.40 | 0.60±0.3 | 25/1.22 | |
Φ30.0 | ≥30.0 | ≤10.2 | 2.15±0.40 | 0.65±0.3 | 25/1.22 | |
Φ39.0 | ≥39.0 | ≤13.5 | 2.45±0.40 | 0.75±0.3 | 25/1.22 | |
Φ50.0 | ≥50.0 | ≤17.0 | 2.75±0.40 | 0.80±0.3 | 25/1.22 | |
Φ64.0 | ≥64.0 | ≤21.0 | 3.05±0.40 | 1.05±0.30 | 25/1.22 | |
Φ75.0 | ≥75.0 | ≤25.0 | 3.05±0.40 | 1.05±0.40 | 25/1.22 | |
Φ90.0 | ≥90.0 | ≤30.0 | 3.05±0.50 | 1.05±0.40 | 25/1.22 | |
Φ100.0 | ≥100 | ≤34.0 | 3.10±0.50 | 1.10±0.40 | 25/1.22 | |
Φ125.0 | ≥125 | ≤42.0 | 3.10±0.50 | 1.10±0.40 | 25/1.22 | |
Type |
Supply bore D(mm) | Full recovered size (mm) | Standard packing (meter/plate, meter/pcs) | |||
Inner diameter | Average total wall thickness w1 | Adhesive wall thickness w2 | ||||
Φ4.0 | ≥4.0 | ≤1.0 | 1.05±0.30 | 0.50±0.30 | 200 | |
Φ6.0 | ≥6.0 | ≤1.5 | 1.15±0.30 | 0.50±0.30 | 100 | |
Φ8.0 | ≥8.0 | ≤2.0 | 1.55±0.30 | 0.60±0.30 | 100 | |
Φ12.0 | ≥12.0 | ≤3.0 | 1.75±0.30 | 0.60±0.30 | 1.22 | |
Φ16.0 | ≥16.0 | ≤4.0 | 2.00±0.30 | 0.70±0.30 | 1.22 | |
Φ20.0 | ≥20.0 | ≤5.0 | 2.30±0.40 | 0.70±0.30 | 1.22 | |
Φ24.0 | ≥24.0 | ≤6.0 | 2.60±0.40 | 0.75±0.30 | 1.22 | |
Φ32.0 | ≥32.0 | ≤8.0 | 3.00±0.50 | 0.90±0.30 | 1.22 | |
Φ40.0 | ≥40.0 | ≤10.0 | 2.80±0.50 | 0.90±0.30 | 1.22 | |
Φ52.0 | ≥52.0 | ≤13.0 | 3.35±0.50 | 0.95±0.30 | 1.22 | |
1. What is the High Shrink Ratio 125G Dual Wall for Sealing Insulation used for?
This product is primarily used for insulating, sealing, and protecting electrical cables, wire harnesses, and metal pipes. It offers superior protection against moisture, corrosion, UV rays, and mechanical strain, making it ideal for applications in industries such as electronics, automotive, telecommunications, and construction.
2. What is the heat shrink ratio for this product?
The heat shrink ratio of this tubing is available in three options: 2:1, 3:1, and 4:1. This means that the tubing can shrink to a fraction of its original size, enabling it to fit a wide range of wire and cable sizes and ensuring a tight and secure seal.
3. What are the key features of the High Shrink Ratio 125G Dual Wall for Sealing Insulation?
The key features include:
Heat Shrink Ratio: 2:1, 3:1, and 4:1 options for versatile application.
Temperature Range: Operating temperature between -45℃ to 125℃, suitable for various industrial environments.
Fireproofing: Flame-retardant properties for safety in hazardous applications.
UV Resistance: Protects against degradation caused by ultraviolet rays.
Moisture and Corrosion Resistance: Prevents water, chemicals, and corrosion from damaging sensitive components.
RoHS Compliance: Meets environmental standards for safe use.
4. How does the hot melt adhesive layer contribute to the performance of this product?
The hot melt adhesive inner layer of the tubing plays a vital role in enhancing sealing strength and absorbing mechanical strain. It forms a strong, waterproof, and airtight seal once the tubing is shrunk, preventing any external factors such as moisture, dirt, or chemicals from reaching the protected area.
