What is thermally conductive tape ?

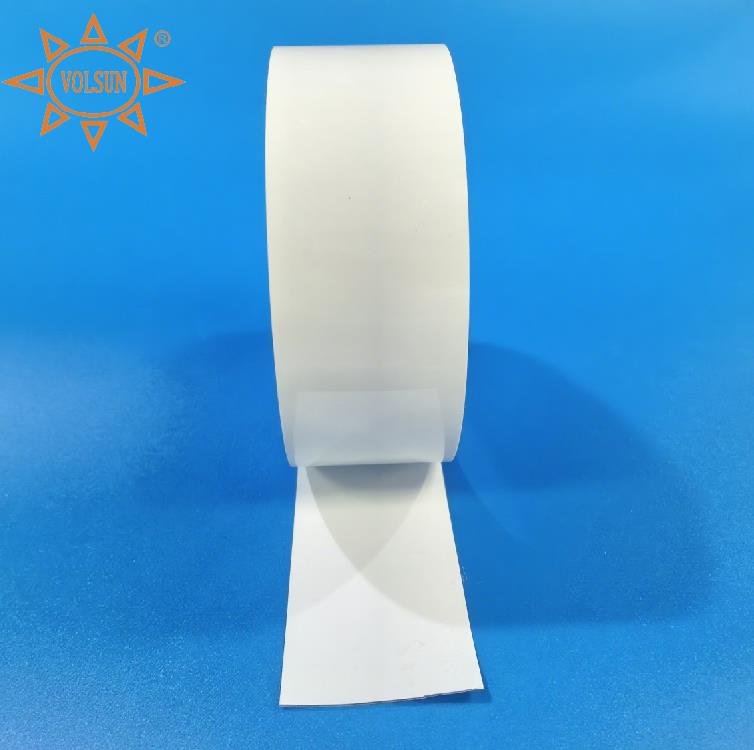

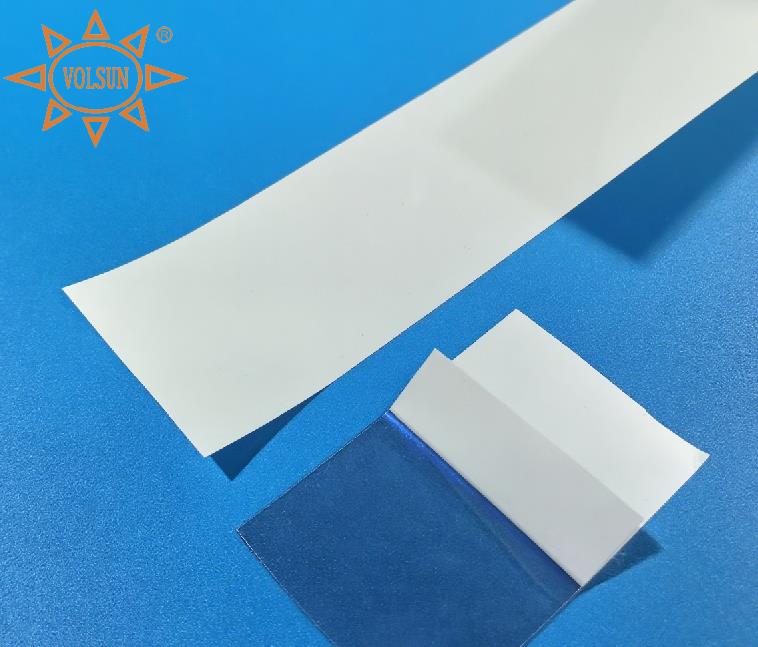

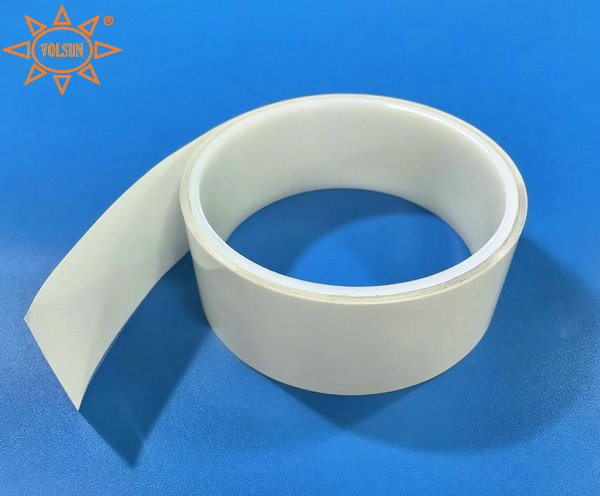

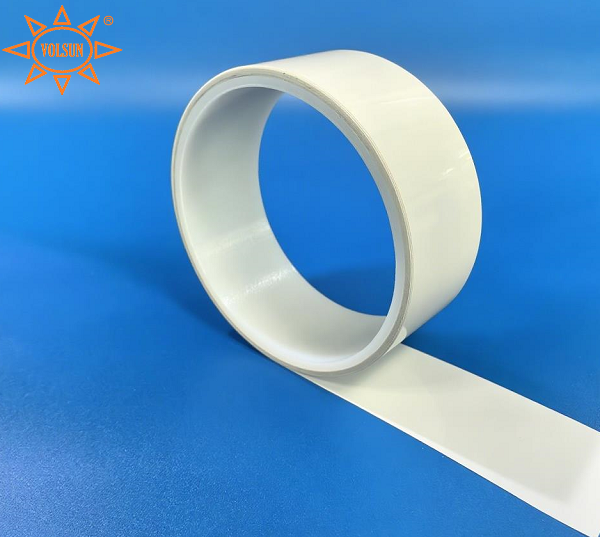

VS-TAP0501 is a high thermal conductive tape made with a special formula and special process. It has good adhesion, heat resistance, and mechanical strength. It can achieve low interface thermal resistance under relatively low pressure. It is used between heat-generating power devices and heat dissipation aluminum sheets or housings to effectively exclude air, reduce air contact thermal resistance, and achieve effective filling effects. It can be used with materials such as copper, aluminum foil, conductive foam, and conductive cloth.
Technical performance of VS-TAP0501 thermal conductive tape
Item | Typical Data | Test Method |
Standard color | White | / |
Thickness（mm） | 0.2mm | ASTM D374 |
Flame retardant grade | VTM-0 | UL94 |
Breakdown voltage | ＞1200Vac | ASTM D149 |
Thermal conductivity (W/m·k) | 0.5 | ASTM D5470 |
180° Peel strength | >1200 g/inch (Instant bonding to stainless steel plates) | ASTM D412 |
As for the specifications of thermal conductive tape, the length and width can be cut as required, just tell us the thickness that you need.
