Silicone thermal pads are essential components in modern electronic devices, providing efficient heat dissipation for sensitive components. Their ability to ensure optimal thermal management makes them indispensable in applications like PCB cooling and other high-performance systems. Understanding how to use these pads effectively is crucial for engineers and hobbyists alike.
Silicone thermal pads are soft, conformable materials designed to fill gaps between heat-generating components and heat sinks. Made from silicone elastomers embedded with thermally conductive fillers, they provide a pathway for heat to transfer away from components, preventing overheating and ensuring reliable operation.
The pads consist of a silicone matrix filled with materials like ceramic particles or metallic oxides. This combination offers excellent thermal conductivity while maintaining electrical insulation. Properties such as flexibility, compressibility, and durability make them suitable for various applications where traditional thermal greases may not be ideal.
Compared to pastes or adhesives, silicone thermal pads provide consistent performance without the mess or curing time. They eliminate air gaps more effectively and can accommodate uneven surfaces, ensuring optimal thermal contact. Their ease of installation and reusability further enhance their appeal.
Silicone thermal pads are widely used in electronic assemblies, including power supplies, LEDs, automotive electronics, and CPUs. They play a critical role in managing heat in densely packed circuits where space constraints demand efficient solutions. Their adaptability makes them suitable for bespoke designs and mass-produced items alike.
In printed circuit boards (PCBs), components like processors and power transistors generate significant heat. Applying silicone thermal pads facilitates effective PCB cooling, enhancing performance and prolonging the lifespan of the components. They bridge the gap between the components and heat sinks or chassis, ensuring efficient heat transfer.
LEDs are sensitive to temperature fluctuations, and overheating can significantly reduce their efficiency and lifespan. Silicone thermal pads provide an effective solution by conducting heat away from the LEDs to the surrounding heat-dissipating structures, maintaining optimal operating temperatures.
Proper installation of silicone thermal pads is essential to maximize their effectiveness. The following steps outline the process to ensure optimal thermal performance:
Choose a pad with suitable thermal conductivity, thickness, and hardness for your application. Consider factors such as the operating temperature range, electrical insulation requirements, and compliance with industry standards.
Clean the surfaces of both the heat-generating component and the heat sink. Remove any dust, grease, or residues using isopropyl alcohol or a suitable solvent. Ensuring clean surfaces promotes better thermal contact.
If the pad is not pre-cut, use sharp scissors or a precision knife to cut it to the required dimensions. The pad should cover the entire surface of the component without overlapping onto adjacent areas.

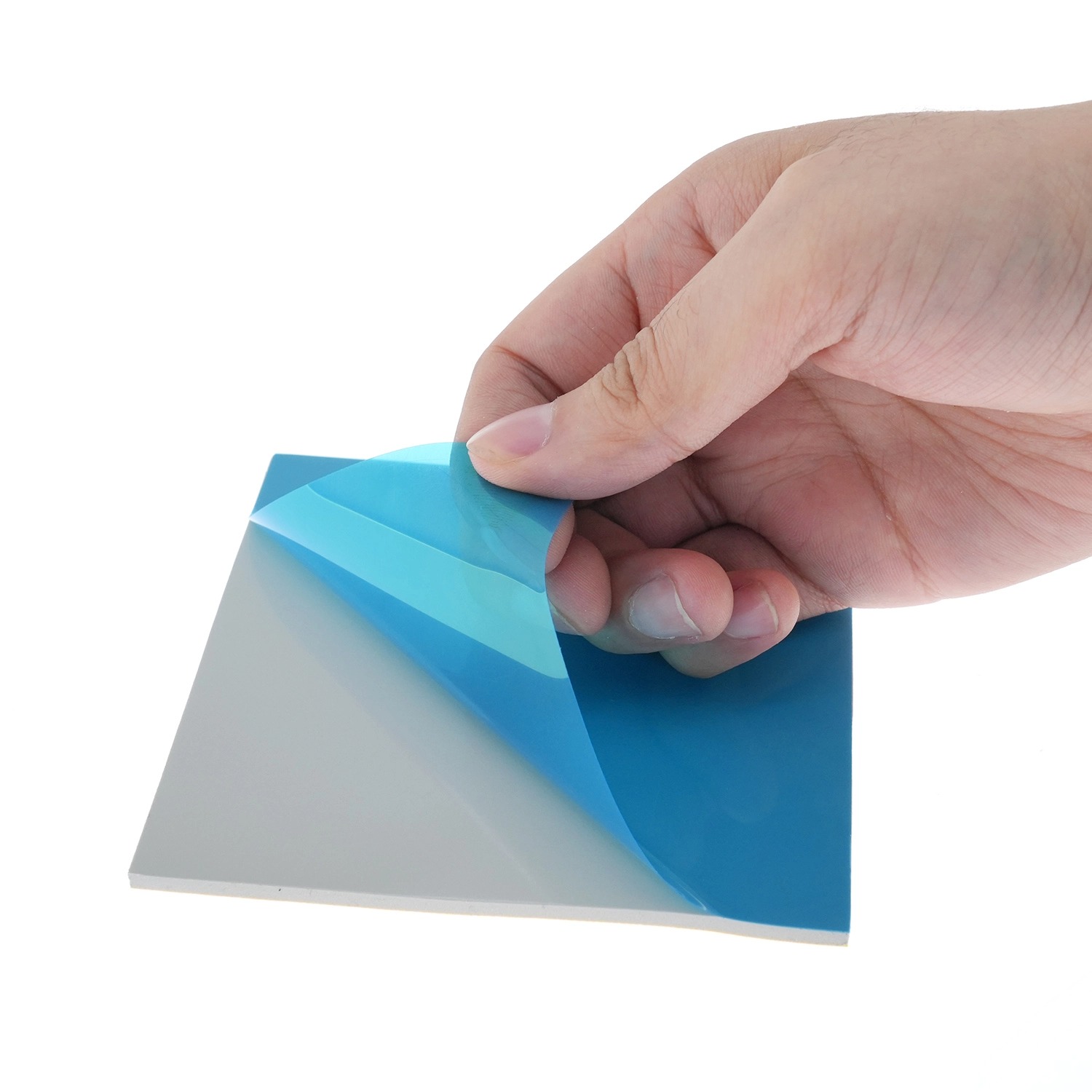

Most silicone thermal pads come with protective liners on one or both sides. Carefully peel off the liner to expose the adhesive or tacky surface, taking care not to contaminate it with fingerprints or debris.
Place the thermal pad onto the component's surface, aligning it properly. Press gently to ensure it conforms to the surface topology, eliminating any air pockets that could impede thermal transfer.
Align the heat sink over the component and press it down firmly. Secure it using appropriate mounting hardware such as clips, screws, or adhesives. The pressure should be uniform to maintain consistent contact.
After assembly, inspect the installation to ensure there are no gaps or misalignments. Testing the thermal performance under operational conditions can confirm the effectiveness of the thermal pad application.
Adhering to best practices enhances the performance and longevity of silicone thermal pads. Consider the following tips during selection and application:
Ensure that the thermal pad material is compatible with both the components and the heat sink. Incompatible materials can lead to chemical reactions or degradation over time, affecting thermal conductivity.
Select the appropriate thickness to fill the gap without excessive compression. Overly thick pads may introduce thermal resistance, while too thin pads might not fill gaps adequately, leading to inefficient heat transfer.
Be mindful of mechanical stresses introduced by clamping or fastening mechanisms. Uneven pressure can cause deformation of components or the pad itself, affecting both thermal and electrical performance.
Consider the environmental conditions such as temperature extremes, humidity, and exposure to chemicals. Choose pads that can withstand the specific conditions of your application without degradation.
Beyond traditional applications, silicone thermal pads are finding innovative uses in emerging technologies. Their versatility allows for customization to meet specific demands in fields like renewable energy and electric vehicles.
In electric vehicles and energy storage systems, maintaining optimal battery temperatures is vital for performance and safety. Silicone thermal pads facilitate efficient heat transfer, enhancing the reliability of these systems.
With the rise of wearable technology and flexible electronics, thermal management solutions must also be flexible. Silicone thermal pads offer the necessary adaptability while providing effective thermal conduction.
Even with proper application, challenges may arise. Understanding common issues helps in diagnosing and resolving them promptly.
Under thermal cycling, some pads may experience pump-out, where the material migrates from its original position. Selecting pads with appropriate viscosity and mechanical properties minimizes this risk.
While silicone thermal pads are generally good insulators, impurities or damage can lead to electrical conductivity. Regular inspection and choosing high-quality materials reduce the likelihood of short circuits.
The demand for efficient thermal management solutions is growing with advancements in technology. Silicone thermal pads are evolving to meet these needs, incorporating new materials and designs.
Incorporating nanomaterials like graphene can significantly enhance thermal conductivity. Research is ongoing to develop pads that leverage these materials while maintaining flexibility and other desirable properties.
Sustainability is becoming a key consideration. Developing silicone thermal pads with recyclable or biodegradable components aligns with global efforts to reduce environmental impact.
Silicone thermal pads are critical in ensuring the efficiency and reliability of electronic devices. By understanding how to select and apply these pads properly, engineers can optimize thermal management in their designs. The continuous innovation in this field promises even more effective solutions in the future. For high-quality options, consider exploring thermal silicone pads that meet the latest industry standards.
