Suzhou Volsun Electronics Technology Co., Ltd.
| Quantity: | |
|---|---|
VS-GP3001
Volsun

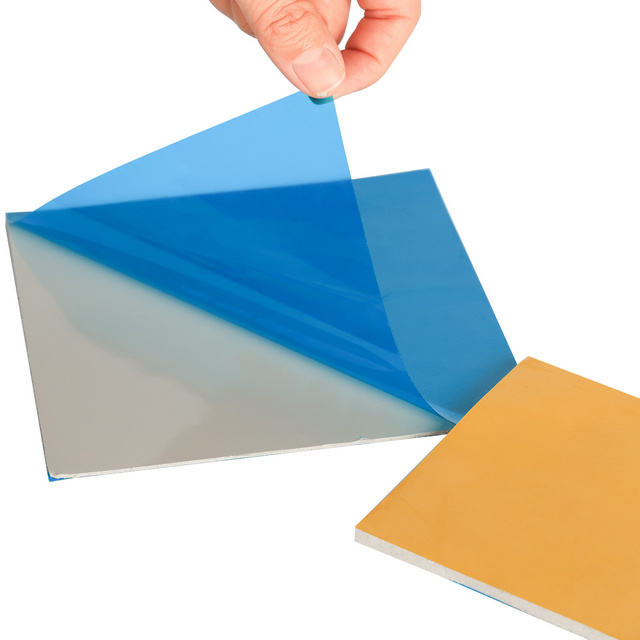

The High Thermal Conductivity Silicone Pad for PCB Cooling is designed to ensure efficient heat dissipation from electronic components. It is made of high-quality silicone with a thermal conductivity of 16.8 W/mK.
It operates in a wide temperature range of -30°C to 280°C, making it ideal for a wide range of applications. This thermally conductive pad provides optimal heat transfer between components, reducing the risk of overheating.
It is suitable for PCB cooling, power modules, and other heat-sensitive electronic devices. The product is CE, FCC, and RoHS certified, meeting essential safety and quality standards.
Item | Typical value | Test method |
color | Grey | / |
Density (g/cm3) | 3.0 | ASTM D792 |
Thickness (mm) | 0.5~5.0 | ASTM D374 |
Hardness (Shore OO) | 30-70 | GB/T 531.1-2008 |
Tensile strength (KPa) | ≥100 | GB/T 528-2009 |
Elongation at break (%) | ≥25 | GB/T 528-2009 |
Thermal conductivity (W/m·k) | 3.0 | ASTM D5470 |
Flame Rating | V-0 | UL94 |
Breakdown strength (kV/mm) | ＞6 | ASTM D149 |
Volume resistivity | ≥1.0×10 12 Ω·cm | ASTM D257 |
Compressibility（%） | ＞50 | GB/T 20671.2-2006 |
Oil Penetration（%） | ≤2 | / |
High Thermal Conductivity: Provides 6 W/m.K thermal conductivity for efficient heat transfer.
Customizable Thickness: Thickness ranges from 0.3mm to 10mm, customizable to specific needs.

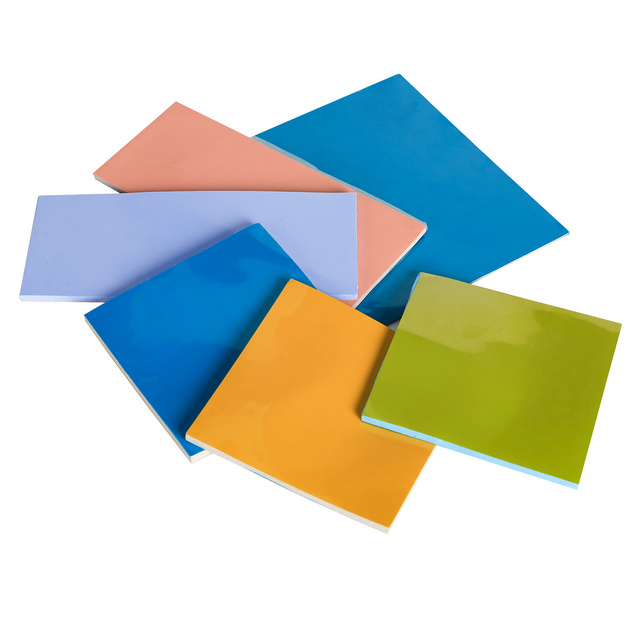

Color Options: Standard color is blue, other custom colors available.
Excellent Insulation Performance: V0 flame retardant rating, volume resistivity of 8.3×10^12 Ω.cm, breakdown resistance ≥10000kV/mm. Operating temperature range is -40°C to 220°C.
Excellent Mechanical Properties: Tensile strength exceeds 1.0N, elongation exceeds 218%, hardness is 30±5 Shore C (≤3mm) and 20±5 Shore C (>3mm).
Density: 3.0±0.3g/cc for optimal stability and performance.
Low Weight Loss: Weight loss ≤1.0% after 200 hours at 200°C, ensuring durability.
Applications:
Electronics: Used for heat dissipation and insulation of electronic devices.
Communications: Provide thermal management for communications equipment.
LED Lighting: Ensure efficient cooling of LED lighting systems.
Automotive: Optimize thermal performance of automotive electronics.
Medical: Used to manage heat in medical devices.
Power Devices: Provide heat dissipation and insulation for power devices.
Advantages:
High thermal conductivity: Effectively conducts heat to prevent overheating.
Cost-effective solution: Provides high performance at a reasonable cost.
Versatile material: Made of high-quality spherical alumina powder and Dow Corning polymers.
Reliable performance: Ensures excellent thermal conductivity and insulation performance.
1. What is the thermal conductivity of the high thermal conductivity silicone pad?
The thermal conductivity of the silicone pad is 16.8 W/mK, which ensures effective heat transfer.
2. What is the temperature range of this silicone pad?
It can work in the temperature range of -30°C to 280°C, suitable for high temperature environments.
3. Can I customize the thickness of the silicone pad?
Yes, the pad thickness can be customized according to your requirements, ranging from 0.5mm to 10mm.
4. What is the minimum order quantity (MOQ) of the silicone pad?
The minimum order quantity is 100 pieces, which can flexibly meet small batches and large-scale procurement.
5. Does this silicone pad have insulating properties?
Yes, the pad has excellent electrical insulation properties, with a volume resistivity of 8.3*10^12Ω.cm and can withstand a breakdown voltage of 10,000kV/mm.
