Suzhou Volsun Electronics Technology Co., Ltd.
| Quantity: | |
|---|---|
VS-RCST
Volsun

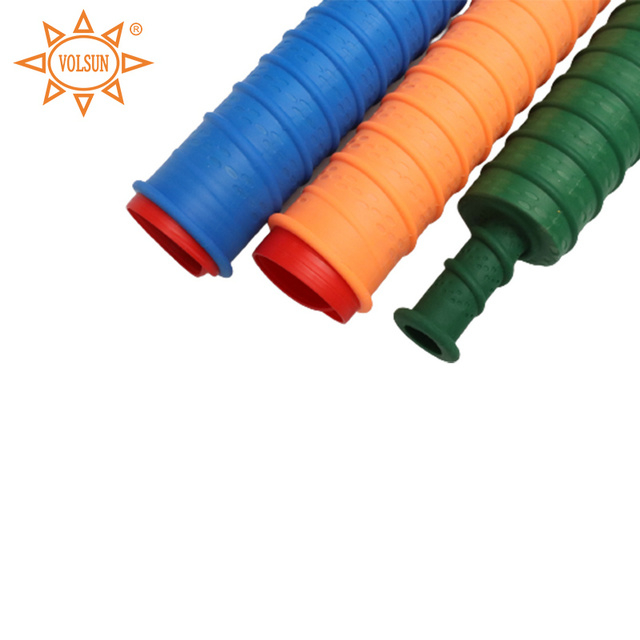

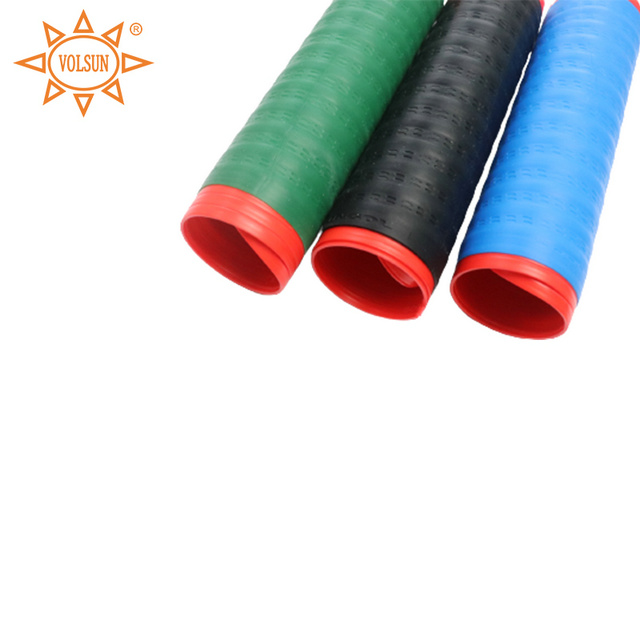

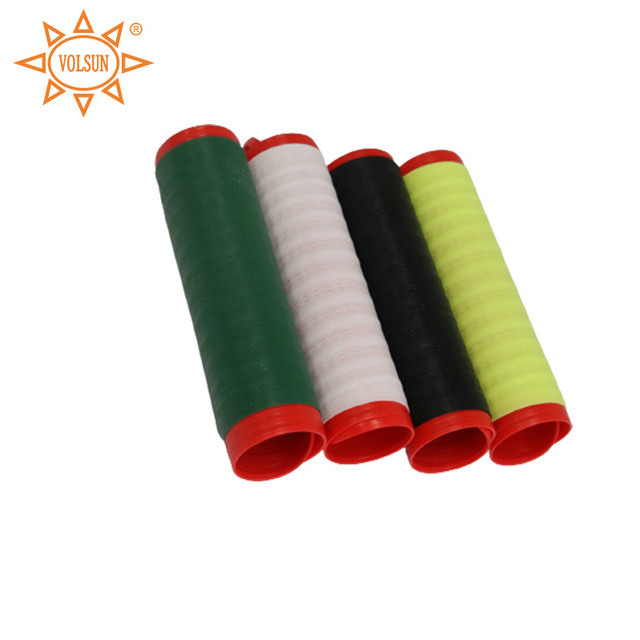

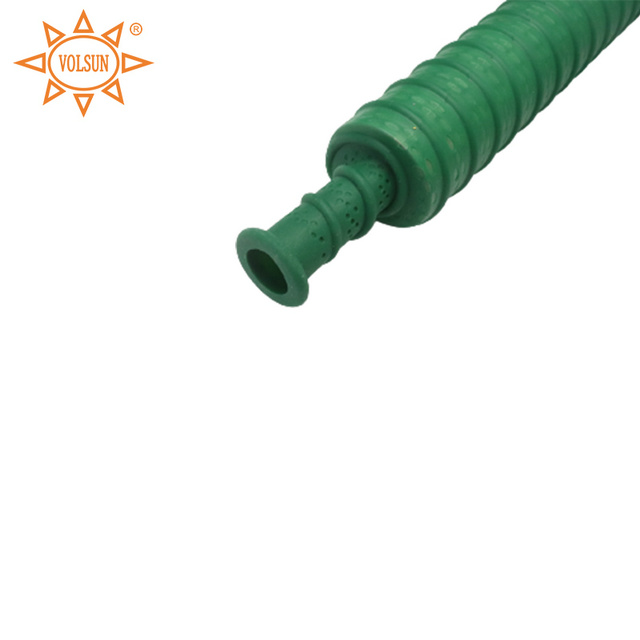

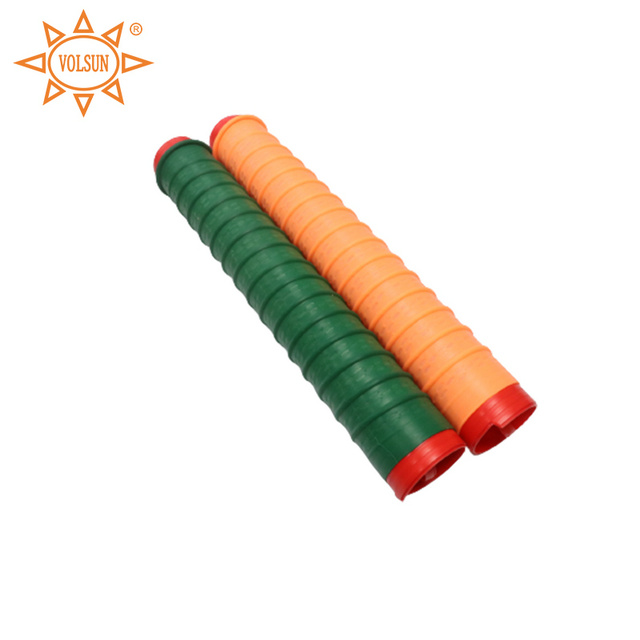

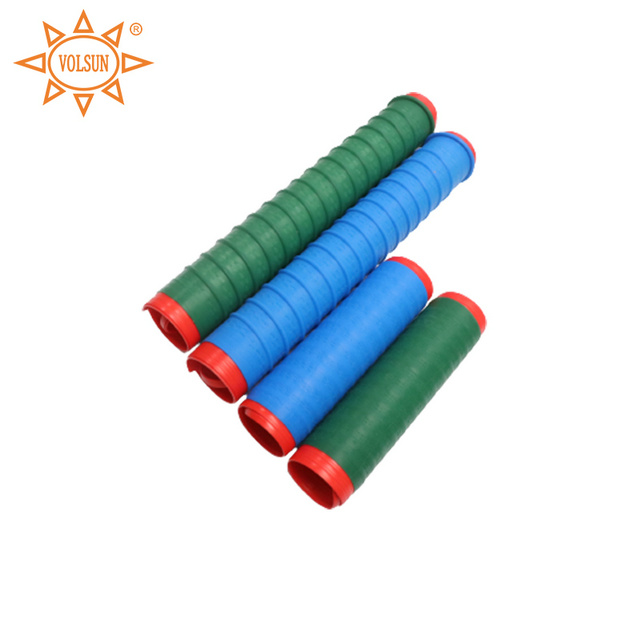

Silicone rubber anti-skid pattern cold shrink tube is made of special silicone rubber raw material, which has the advantages of large shrinkage ratio, excellent physical and mechanical properties, and puncture resistance. Suitable for parts that need to increase anti-slip, sealing, moisture-proof and other effects.
Continuous operating temperature: -60℃～200℃
Strong resilience, high permanent radial pressure, and excellent long-term moisture resistance and waterproofness
Weather resistance, exposure resistance, ozone aging resistance, UV resistance, salt spray corrosion resistance
Excellent tear resistance. After a small cut is made with a knife, the cut will not continue to expand.
No heat or special tools are required, and no hot melt glue or tape is required to strengthen the seal at the joint.
Item | Typical Data | Test Method |
Shore Hardness | 40±5 | GB/T 531-2008 |
Tensile Strength | ≥9.0MPa | GB/T 528-2009 |
100% Elongation Stress | ≤1.2MPa | GB/T 528-2009 |
200% Elongation Stress | ≤2.0MPa | GB/T 528-2009 |
Elongation at Break | ＞800% | GB/T 528-2009 |
Tear Strength | ≥35kN/m | GB/T 529-2008 |
Model | ID（mm） | The minimum application OD (mm) | Length after fully recovered L(mm) |
VS-40/15-170 | Ф40 | 17 | 170 |
VS-44/10-170 | Ф44 | 12 | 170 |
VS-44/10-220 | Ф44 | 12 | 220 |
VS-44/10-300 | Ф44 | 12 | 300 |
VS-45/15-220 | Ф45 | 17 | 220 |
VS-50/15-300 | Ф50 | 21 | 300 |
Remark: Special sizes & packing are available on request.
The most important thing to choose the correct pattern cold shrink tube is to measure and tell us the outer diameter of the handle grips you need to protect, as well as the required length, so that we can recommend the right size of pattern cold shrink tube for you.
