RUBNS-OLC
VOLSUN

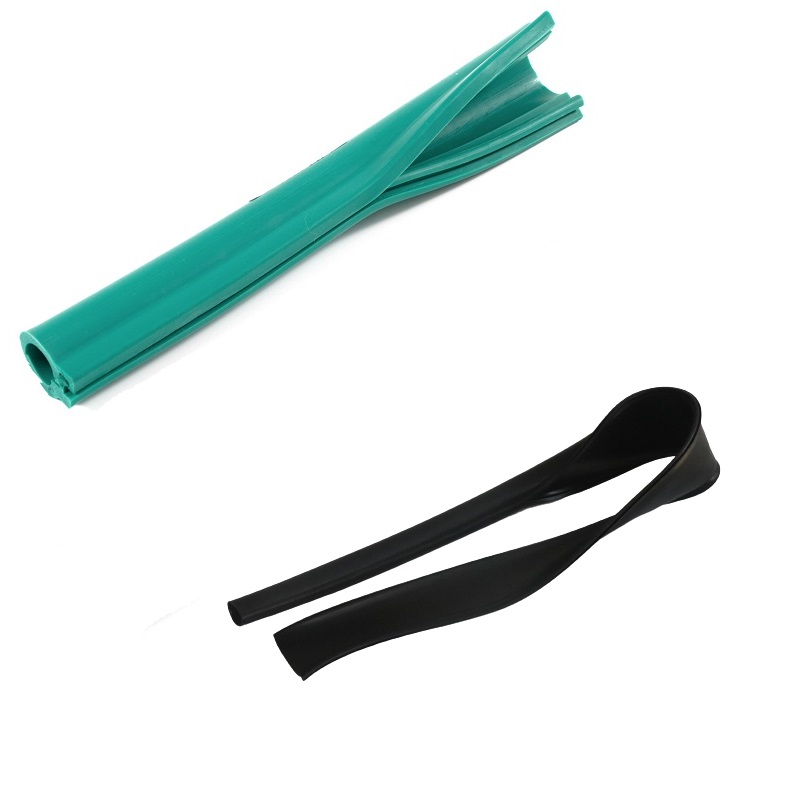

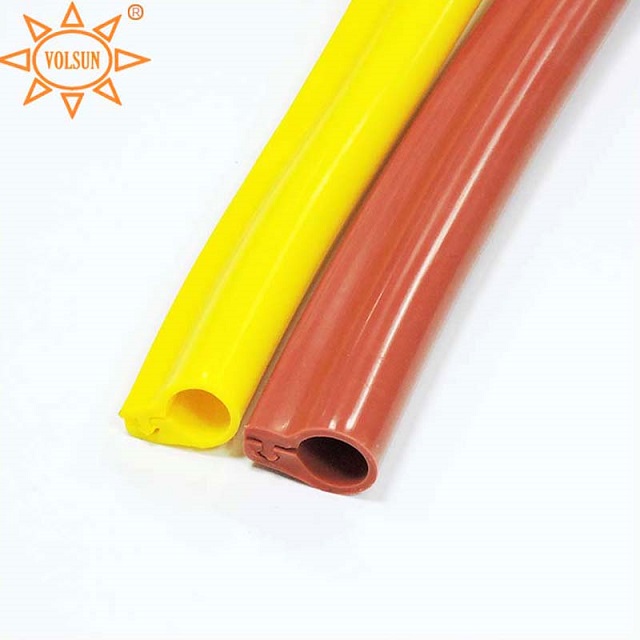

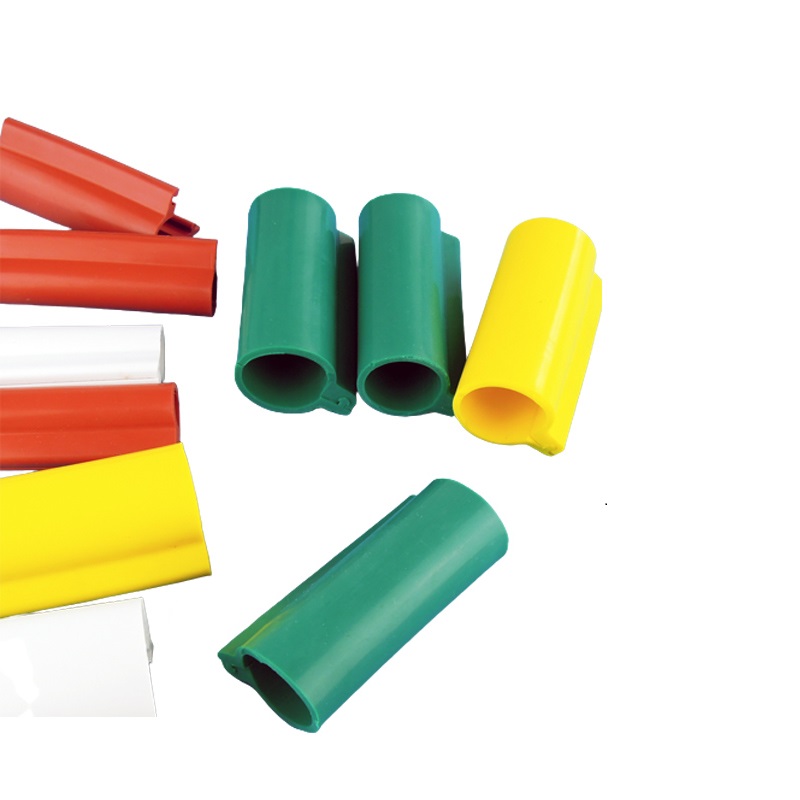

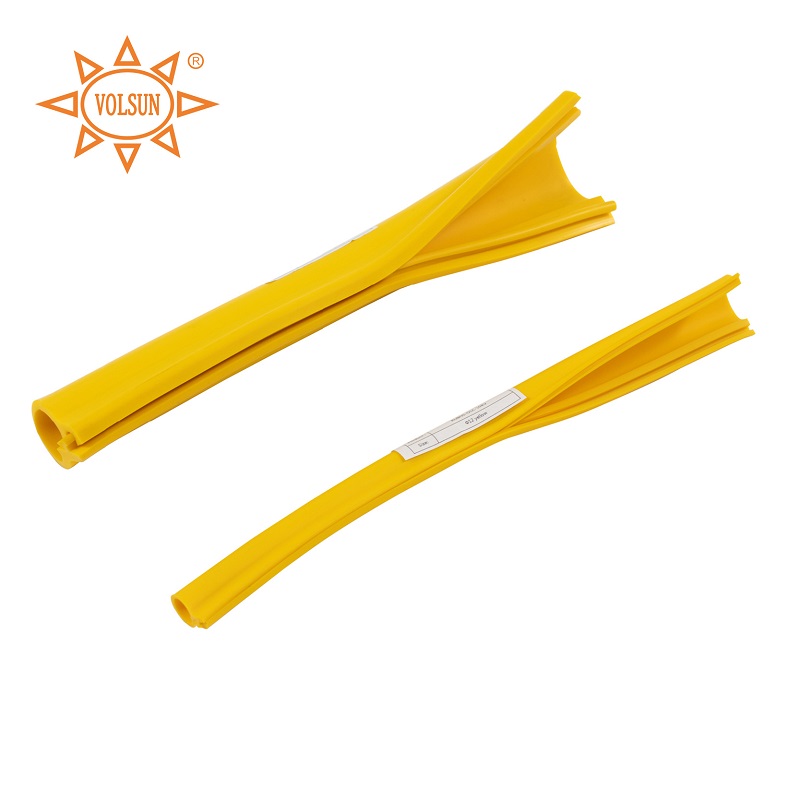

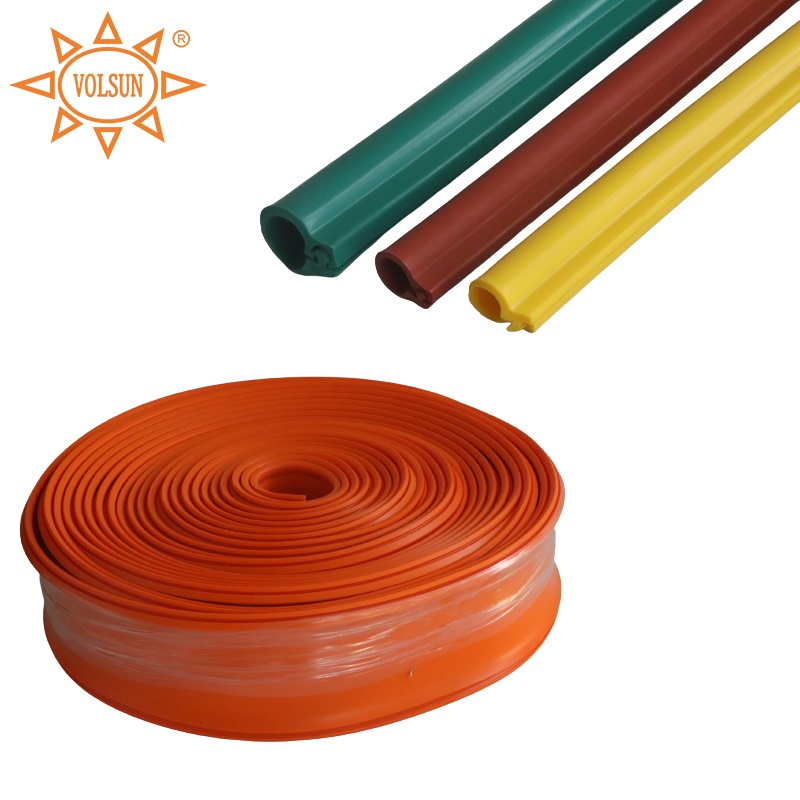

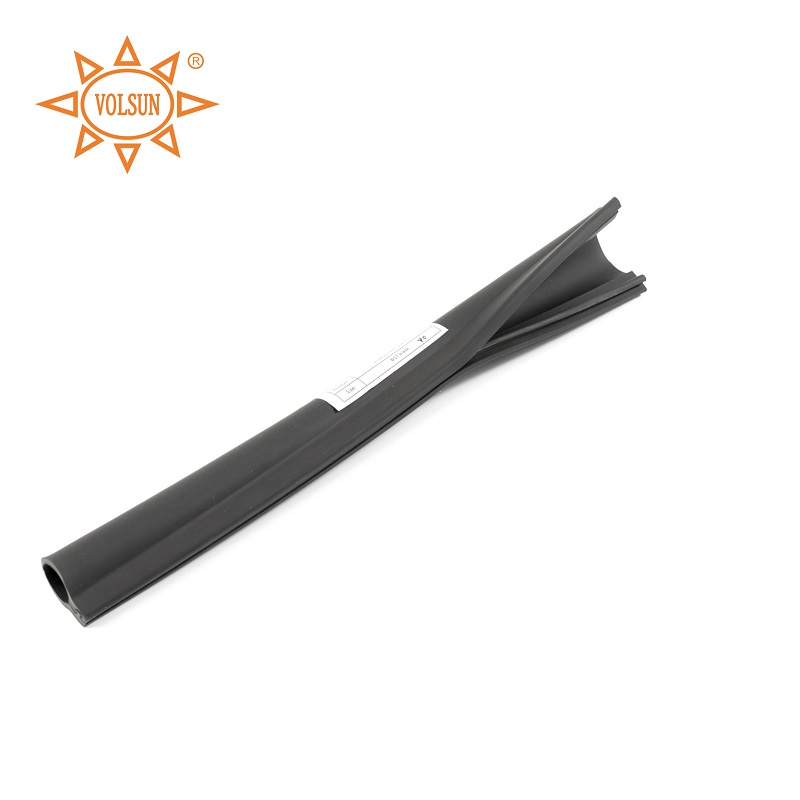

RUBNS-OLC is composed of premium silicone rubber material. It possesses outstanding electrical and tracking resistance, exceptional weather resistance, superior mechanical properties, hydrophobicity, and hydrophobic migration. Additionally, it exhibits excellent resistance to high and low temperatures, enabling continuous usage within the temperature range of -50℃ to +150℃. It offers convenient and uncomplicated installation, saving both labor and time. This product is specifically designed for insulating and protecting cables and wires, effectively increasing the safety distance between objects and cables.
Soft and resistant to folding
Prolonged lifespan, resistant to aging, and corrosion
Easy to install, save construction time
Item | Typical Data | Test Method |
Electrical Strength Test | ≥20kV/mm | GB/T 1408.1-2006 |
Volume Resistivity | ≥1×1014Ω·cm | GB/T 1410-2006 |
Dielectric Constant | 2～3 | GB/T 1409-2006 |
Shore Hardness | 70±5A | GB/T 531 |
Mechanical Property | ||
Before heat ageing | ||
Tensile Strength | ≥4.0MPa | GB/T 528-2009 |
Elongation at break | ≥200% | GB/T 528-2009 |
After Heat aging (180℃, 7d) | ||
Tensile Strength Change | ±30% | GB/T 528-2009 |
Elongation Change | ±30% | GB/T 528-2009 |
Low Temperature Elongation(-15℃, 2h) | ≥20% | GB/T 2951.4-1997 |
Low Temperature Flexibility(-50℃, 4h) | No cracks | UL224-2004 |
High Temperature Crack Resistance(155℃, 2h) | No cracks | GB/T2951.6-1997 |
Nominal cross-sectional area (mm²) | Recommended Inner Diameter of Conductor Cover (mm) |
50～70 | Ф12 |
95～120 | Ф17 |
150～185 | Ф20 |
210～300 | Ф24.2 |
400 | Ф30 |
500 | Ф32 |
630 | Ф35 |
800 | Ф39.8 |
Nominal cross-sectional area (mm²) | Recommended Inner Diameter of Conductor Cover (mm) |
35 50 | Ф12 |
Ф15.6 | |
70～95 120～150 185～240 | Ф17 |
Ф20 | |
Ф24.2 | |
400～500 800～800 | Ф32 |
Ф39.8 |
Voltage(KV) | ≤10kV | ≤35kV | ≤110kV | ≤220kV |
Wall thickness | 2.0±0.3mm | 3.0±0.4mm | 4.0±0.5mm | 6.0±1.0mm |
Materials needed for the installation process
Placing the RUBNS-OLC silicone cover onto the protected object, Apply RTV glue into the concave channel of the RUBNS-OLC and secure the cover tightly
Utilize a cable tie to secure the RUBNS-OLC in place.
Apply RTV glue to join the two ends of the RUBNS-OLC and coat the surface of the connection. Take a 50~90mm section of RUBNS-OLC, roll and wrap it, and then use self-fusing tape for additional reinforcement.
Prior to installation, inspect the concave channel to ensure there is no foreign matter
When applying the RTV glue, it is crucial to distribute it evenly to prevent any cracking
After securing the RUBNS-OLC in place, utilize a cable tie to fix it, thereby preventing any potential cracking
After finishing the above steps, make sure to position the RUBNS-OLC slot underneath the cable to prevent rainwater from entering and influence the insulation properties
What is the material composition of the silicone overhead line cover?
The silicone snap-on tubing is made of high-quality silicone rubber material, which exhibits excellent flexibility, durability, and resistance to various environmental factors.
What are the main applications of silicone overhead line cover?
Silicone snap-on tubing is widely used in industries such as electrical, automotive, and industrial equipment. It is commonly used for cable management, wire insulation, and protection, providing a secure and organized solution.
What are the advantages of using silicone overhead line cover?
Silicone snap-on tubing offers several advantages. It provides excellent electrical insulation properties, high temperature resistance, and resistance to environmental factors such as moisture, UV radiation, and chemicals. Its flexible and snap-on design allows for easy installation and removal, facilitating maintenance and reconfiguration.
What sizes and colors are available for silicone overhead line cover?
Silicone snap-on tubing is available in various sizes to accommodate different cable diameters and objects. Common sizes range from small to large, catering to a wide range of applications. Additionally, it is available in various colors, allowing for color-coding and easy identification of cables or objects. Please check the product listings for specific size and color options.
