Suzhou Volsun Electronics Technology Co., Ltd.
| Quantity: | |
|---|---|
FST6030SI
VOLSUN

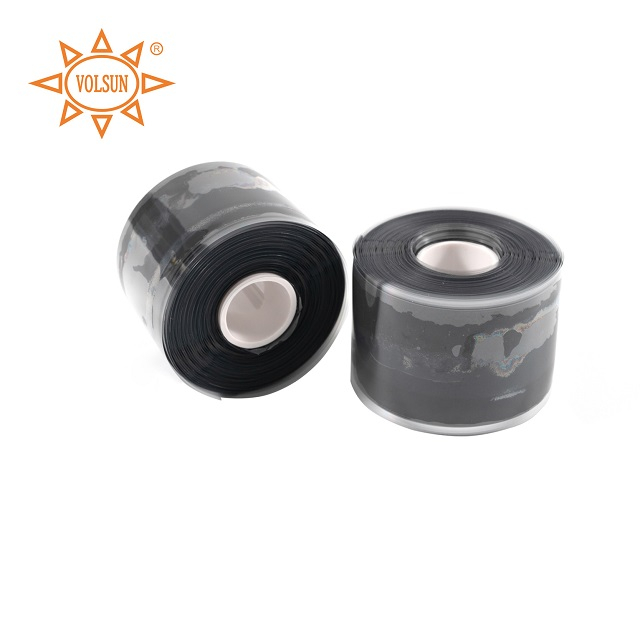

Volsun flame retardant type self-fusing electrical silicone rubber tape is an easy-to-use solution for airtight and waterproof seals in various electrical joints applications. It is tear resistant, wear resistant, and UV resistance, so it is durable. This silicone self fusing tape can withstand exposure to fuel, water, oil, acids, etc., these properties make it suitable for a wide range of uses. It is also a class H insulator, providing reliable insulation protection for electrical joint connections, bare copper busbars, cable joints, etc.
Colors can be red, yellow, green, and black, other colors are availabe in customization on request.
The continuous operating temperature range is -60℃ to +180℃.
The tape surface is non-sticky to the touch and leaves no residue after peeling off.
With strong self-adhesiveness that quickly forms a secure bond, ensuring sealing and waterproofing performance.
Easily conforms to various shapes, making it suitable for wrapping electrical cable joints, intermediate connections and irregular joints.
Resistance to fouling, corrosion, UV, water, ozone, and aging, so it is ideal for diverse environments, including outdoor applications.
Item | Typical Data | Test Standard |
Tensile Strength | ≥3.5MPa | GB/T 528-2009 |
Elongation at break | ≥200% | GB/T 528-2009 |
Self-adhesive | ＞3.5N/cm | ASTM D2148 |
Flame Retardancy | V-0 | UL94 |
Dielectric strength | ≥22kV/mm | GB/T1408.1-2006 |
Volume resistivity | ≥1.3×1014Ω·m | GB/T 31838.3-2019 |
Size | Width（mm） | Thickness（mm） | Package（M/Roll） |
20*0.8 | 20±2.0 | 0.8±0.08 | 5/ customized |
25*0.5 | 25±2.0 | 0.5±0.08 | 5/ customized |
25*0.8 | 25±2.0 | 0.8±0.08 | 5/ customized |
25*1.0 | 25*1.0 | 1.0±0.08 | 5/ customized |
30*1.5 | 30±2.0 | 1.5±0.08 | 5/ customized |
50*0.5 | 50±2.0 | 0.5±0.08 | 5/ customized |
50*0.8 | 50±2.0 | 0.8±0.08 | 5/ customized |
50*1.0 | 50±2.0 | 1.0±0.08 | 5/ customized |
80*0.8 | 80±2.0 | 0.8±0.08 | 5/ customized |
100*0.5 | 100±2.0 | 0.5±0.08 | 5/ customized |
100*0.8 | 100±2.0 | 0.8±0.08 | 5/ customized |
Note: special size and packaging can be customized upon request
The installation is very easy. Before installation, ensure to clean the surface of the object to be protected, then remove the protective film from the self fusing silicone tape and apply it halfway onto the object, then the installation finished.
Before installing the silicone self fusing tape, it is crucial to thoroughly clean the surface of the object to be protected to avoid any issues during installation and future use.
When removing the film and applying it to the object, make sure to peel it off gradually to prevent wrinkles and the attachment of dirt that could affect the performance of self-fusing silicone tape.
During the application process, ensure a one-half overlap to ensure the product's protective qualities.
Keep the environment clean while applying the self fusing electrical silicone tape to prevent dirt from sticking to the tape and reducing its adhesive strength.
