Suzhou Volsun Electronics Technology Co., Ltd.
| Quantity: | |
|---|---|
NS-GF200RUB-D
Volsun

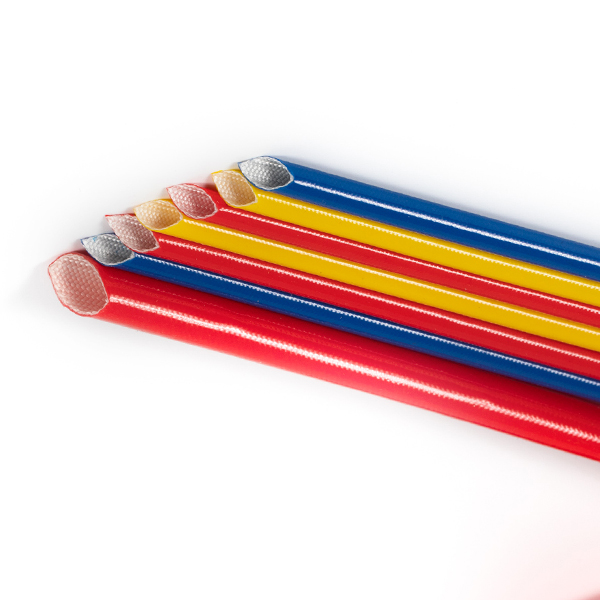

In industrial environments where wires, hoses, and cables face extreme temperatures and mechanical abuse, the High Temp Silicone Fiberglass Sleeving provides superior protection that extends component life and enhances operational safety. This innovative sleeving combines the thermal resistance of fiberglass with the flexibility and chemical resistance of high-grade silicone, creating a protective barrier that withstands intense heat, abrasion, and environmental hazards. Engineered for easy installation and exceptional durability, it serves as a critical protective layer in applications ranging from industrial machinery to aerospace systems, where conventional protective covers would quickly fail under harsh conditions.
The sleeving is designed to excel in high-temperature environments, providing continuous protection at 260°C (500°F) and short-term protection up to 300°C (572°F) . Unlike PVC or neoprene sleeves that degrade above 100°C, this silicone-fiberglass combination retains its protective properties even after prolonged heat exposure, with less than 5% weight loss after 1000 hours at 200°C . It also offers excellent flame resistance, achieving a UL 94 V-0 rating without compromising flexibility.
Constructed with a woven fiberglass core coated in high-purity silicone rubber, the sleeving delivers exceptional abrasion resistance exceeding 100,000 cycles in wear testing—5-10 times greater than standard sleeves . It provides a tear strength of 20 N/mm and puncture resistance that protects underlying components from sharp edges and debris . The material's flexibility allows it to expand up to 150% of its original diameter for easy installation over connectors and irregular shapes.
The silicone coating provides excellent resistance to oils, solvents, hydraulic fluids, and industrial chemicals, maintaining integrity in harsh operating environments . It exhibits superior weatherability with UV stability that prevents degradation from sunlight exposure, making it suitable for both indoor and outdoor applications . The material is also resistant to mold, mildew, and fungus growth, ensuring reliability in humid environments.
Category | Specification | Value | Test Method |
Thermal Properties | Continuous Operating Temperature | 260°C (500°F) | UL 746B |
Short-Term Exposure Temperature | 300°C (572°F) | ASTM D648 | |
Weight Loss (1000hr @200°C) | <5% | ISO 2578 | |
Flame Rating | UL 94 V-0 | UL 94 | |
Mechanical Properties | Abrasion Resistance | 100,000+ cycles | ASTM D3884 |
Tear Strength | 20 N/mm | ASTM D624 | |
Expansion Capacity | 150% of original diameter | Manufacturer Test | |
Thickness | 0.3 mm - 1.2 mm | ASTM D374 | |
Material Properties | Construction | Fiberglass Core/Silicone Coating | Manufacturer Spec |
Chemical Resistance | Oils, Solvents, Hydraulics | ASTM D543 | |
UV Resistance | Excellent | ASTM G154 | |
Electrical Properties | Dielectric Strength | 25 kV/mm | ASTM D149 |
Protects hydraulic hoses, cable assemblies, and wire harnesses in manufacturing equipment, presses, and industrial ovens. Withstands high temperatures from motors and heating elements while resisting oils and coolants.
Shields wiring harnesses, fuel lines, and brake cables in engines and undercarriage applications. Protects against heat from exhaust systems and abrasion from road debris.
Used in aircraft engine compartments, avionics systems, and ground support equipment where lightweight, high-temperature protection is critical. Meets aerospace flame and smoke requirements.
Safeguards cables and hoses in solar panel installations, wind turbine nacelles, and geothermal equipment. Withstands outdoor exposure and temperature extremes while resisting UV degradation.
The sleeving features high expandability (up to 150% of original diameter) that allows it to be easily pulled over connectors, fittings, and irregular shapes without damage . For large diameters or complex assemblies, it can be slit lengthwise and secured with high-temperature silicone tape, maintaining full protective properties while simplifying installation.
Standard inner diameters range from 3 mm to 50 mm, with custom sizes available for specialized applications . The sleeving is supplied in continuous lengths of 50 meters, 100 meters, or cut-to-length pieces, providing flexibility for both small repairs and large-scale installations.
Yes, with a dielectric strength of 25 kV/mm, the sleeving provides excellent electrical insulation for high-voltage applications up to 10 kV . It's commonly used to insulate bus bars, transformer leads, and high-temperature electrical connections where both thermal protection and electrical isolation are required.
The sleeving is engineered for long-term performance in continuous 260°C environments, with testing confirming less than 5% degradation after 10,000 hours of exposure . Unlike heat-shrink tubing that can become brittle, it maintains flexibility and protective properties, making it ideal for permanently hot locations like engine bays and industrial furnaces.
