Acrylic Coated Fiberglass Sleeve F Class Insulation Glass Fiber Sleeving

Acrylic fiberglass sleeve can be used at this operating temperature：-30℃～155℃. This kind of fiberglass sleeving is environmental and colors are available to custom.

Quantity:
Availability:





Inquire Add to Basket

Model:
NS-ARG
Brand:
VOLSUN

Description

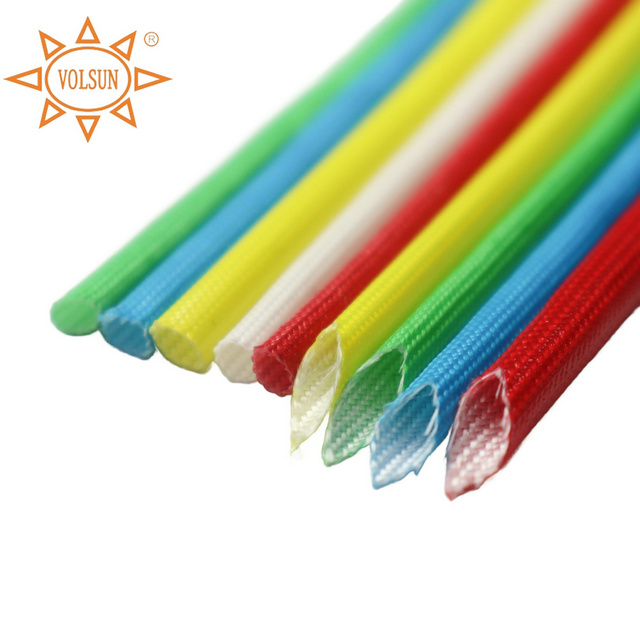

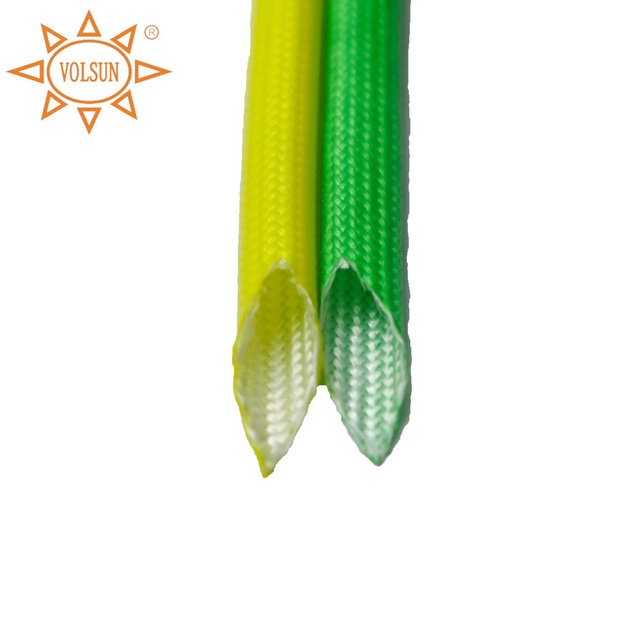

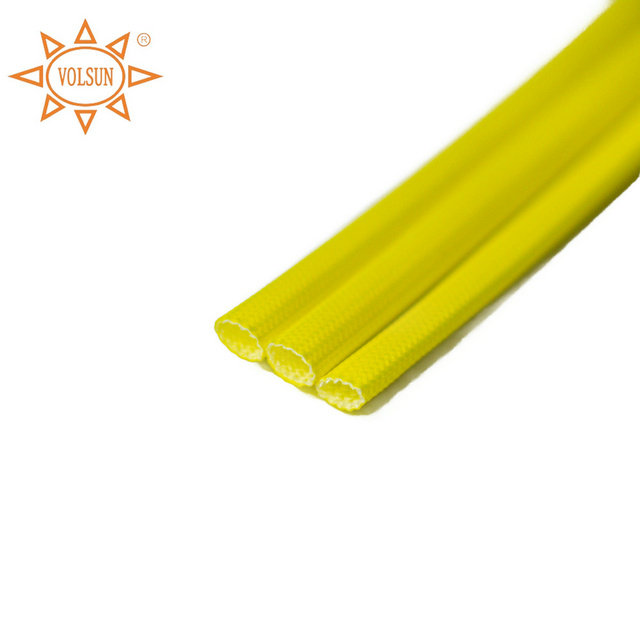

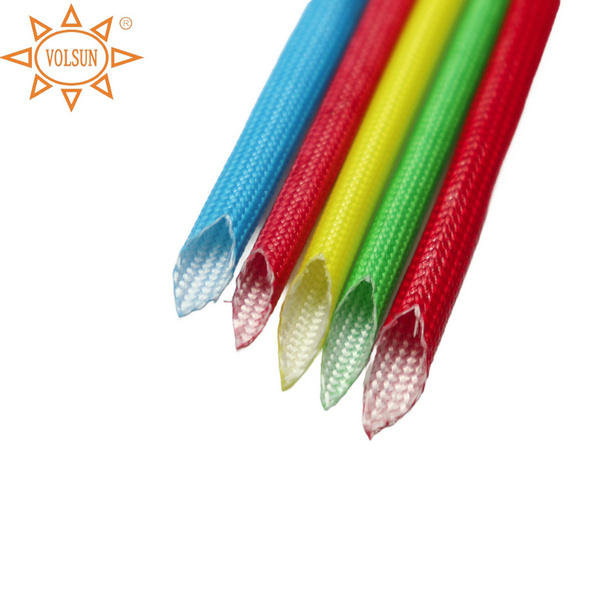

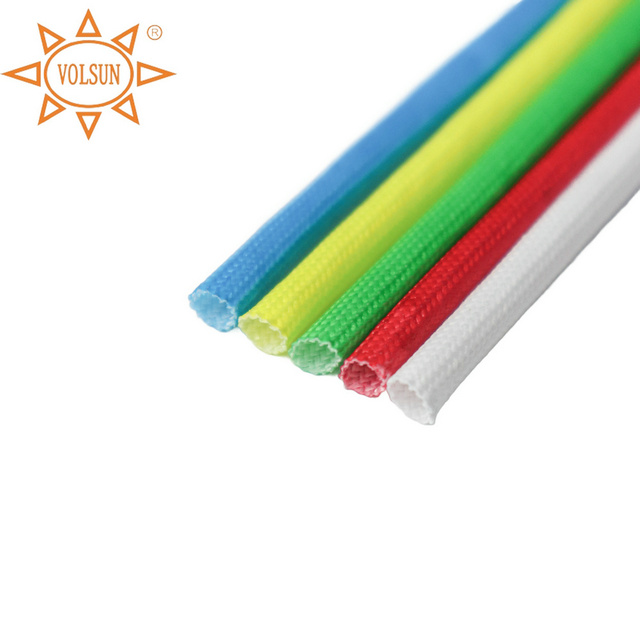

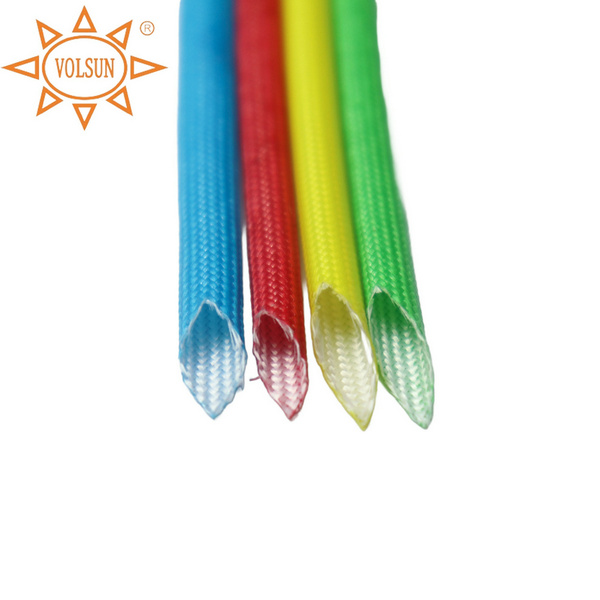

Acrylic fiberglass tube sleeve is an insulating tube made of alkali-free glass fiber yarn woven into a tube, coated with acrylic resin and heated and dried. This fiberglass sleeving has excellent heat resistance and can withstand temperatures up to 155°C. It is suitable for F-class motors and electrical equipment. In addition, it also has good dielectric properties, softness and elasticity, and can effectively protect wires and cables from mechanical damage.

Acrylic fiberglass sleeve meets the environmental protection requirements of the EU REACH and ROHS directives and is widely used in insulation protection in motors, household appliances, electric heating equipment, special lamps and other fields. Its unique benzene and oil resistance make it widely used in automotive motors and other industrial equipment. In addition, due to its excellent wear resistance and radiation resistance, acrylic fiberglass sleeves are also used in aerospace and atomic energy fields.

In summary, acrylic fiberglass tube sleeve has become an indispensable and important material for various electrical equipment with its excellent performance and wide application fields.

Acrylic Fiberglass Sleeve fiberglass sleeving fiberglass acrylic sleeve f class insulation sleeve acrylic fiberglass braided sleeve Acrylic Fiberglass Sleeves

Related Products

Fiberglass Protection Sleeves for Wire Harness Insulation

High Voltage 4KV/7KV Tear Resistant Silicone Rubber Braided Fiberglass Sleeving

High Tempertautre Resistant Insulated Acrylic Fiberglass Sleeving for Motors

High Temperature Resistant Insulated Acrylic Fiberglass Sleeving

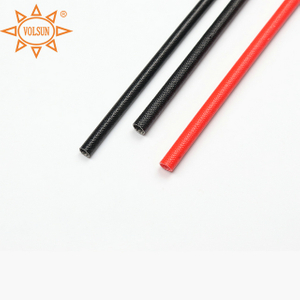

Flame Retardant Heat Resistant Silicone Coated Braided Fiberglass Sleeve

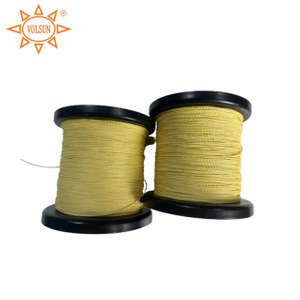

High Temperature Resistant Aging Resistant Aramid 1414 Lashing Rope for Motors

High Temperature Resistance PPS Braided Sleeve for New Energy Vehicle Motor Wiring Protection

High Temperature Corrosion Resistant Flame Retardant EV Motor Cable Winding PPS Lashing Rope

High Temperature Resistant Fiberglass Sleeve Tear Resistant Silicone Rubber Glass Fiber Sleeving

Related News

content is empty!

Item	Typical Data	Test method
Appearance	The coating should be uniform, the surface should be smooth, and there should be no defects that affect product performance	GB/T 7113.4-2011
Insulation resistance (Ω)	≥1.0*109	GB/T 7113.2-2014
Resistance to welding heat	Pass (only for hose with nominal inner diameter ≤5mm)	GB/T 7113.2-2014
Bendability after heating	No visible cracks or peeling of the coating, allowing the color to become darker	GB/T 7113.2-2014
Bendability at low temperatures	No visible cracks or peeling of the coating (experimental temperature: ≤-15 ~ -18℃)	GB/T 7113.2-2014
Paint resistance to hydrolysis	No coating migration, no adhesion between the hose and the paper and the hose test piece, and no discoloration of the paper	GB/T 7113.2-2014
Breakdown voltage	See reference standard	GB/T 7113.2-2014

Item	Typical Data	Test method
Appearance	The coating should be uniform, the surface should be smooth, and there should be no defects that affect product performance	GB/T 7113.4-2011
Insulation resistance (Ω)	≥1.0*109	GB/T 7113.2-2014
Resistance to welding heat	Pass (only for hose with nominal inner diameter ≤5mm)	GB/T 7113.2-2014
Bendability after heating	No visible cracks or peeling of the coating, allowing the color to become darker	GB/T 7113.2-2014
Bendability at low temperatures	No visible cracks or peeling of the coating (experimental temperature: ≤-15 ~ -18℃)	GB/T 7113.2-2014
Paint resistance to hydrolysis	No coating migration, no adhesion between the hose and the paper and the hose test piece, and no discoloration of the paper	GB/T 7113.2-2014
Breakdown voltage	See reference standard	GB/T 7113.2-2014

Size	ID d(mm)	Thickness w(mm)					Package(M/Roll)
Size	ID d(mm)	1.2KV	1.5KV	2.5KV	4.0KV	7KV	Package(M/Roll)
Φ0.8	+0.20mm	0.20±0.05mm	0.20±0.05mm	0.40±0.15mm	0.40±0.15mm	0.55±0.15mm	200
Φ1.0	+0.20mm	0.20±0.05mm	0.20±0.05mm	0.40±0.15mm	0.40±0.15mm	0.55±0.15mm	200
Φ1.5	+0.20mm	0.20±0.05mm	0.20±0.05mm	0.40±0.15mm	0.40±0.15mm	0.55±0.15mm	200
Φ2.0	+0.20mm	0.20±0.05mm	0.20±0.05mm	0.40±0.15mm	0.40±0.15mm	0.55±0.15mm	200
Φ2.5	+0.25mm	0.25±0.05mm	0.25±0.05mm	0.40±0.15mm	0.40±0.15mm	0.55±0.15mm	200
Φ3.0	+0.35mm	0.30±0.05mm	0.30±0.05mm	0.50±0.15mm	0.50±0.15mm	0.60±0.15mm	200
Φ3.5	+0.35mm	0.35±0.05mm	0.35±0.05mm	0.50±0.15mm	0.50±0.15mm	0.60±0.15mm	200
Φ4.0	+0.35mm	0.35±0.05mm	0.35±0.05mm	0.50±0.15mm	0.50±0.15mm	0.60±0.15mm	100
Φ4.5	+0.35mm	0.35±0.05mm	0.35±0.05mm	0.50±0.15mm	0.50±0.15mm	0.60±0.15mm	100
Φ5.0	+0.35mm	0.35±0.05mm	0.35±0.05mm	0.50±0.15mm	0.50±0.15mm	0.70±0.15mm	100
Φ6.0-9.0mm	+0.50mm	0.45±0.05mm	0.45±0.05mm	0.60±0.15mm	0.60±0.15mm	0.70±0.15mm	100
Φ10.0-12.0mm	+0.70mm	0.50±0.05mm	0.50±0.05mm	0.65±0.15mm	0.65±0.15mm	0.80±0.15mm	50/30
Φ13.0-35.0mm	+0.80mm	0.50±0.05mm	0.50±0.05mm	0.70±0.15mm	0.70±0.15mm	0.80±0.20mm	30/20

Size	ID d(mm)	Thickness w(mm)					Package(M/Roll)
Size	ID d(mm)	1.2KV	1.5KV	2.5KV	4.0KV	7KV	Package(M/Roll)
Φ0.8	+0.20mm	0.20±0.05mm	0.20±0.05mm	0.40±0.15mm	0.40±0.15mm	0.55±0.15mm	200
Φ1.0	+0.20mm	0.20±0.05mm	0.20±0.05mm	0.40±0.15mm	0.40±0.15mm	0.55±0.15mm	200
Φ1.5	+0.20mm	0.20±0.05mm	0.20±0.05mm	0.40±0.15mm	0.40±0.15mm	0.55±0.15mm	200
Φ2.0	+0.20mm	0.20±0.05mm	0.20±0.05mm	0.40±0.15mm	0.40±0.15mm	0.55±0.15mm	200
Φ2.5	+0.25mm	0.25±0.05mm	0.25±0.05mm	0.40±0.15mm	0.40±0.15mm	0.55±0.15mm	200
Φ3.0	+0.35mm	0.30±0.05mm	0.30±0.05mm	0.50±0.15mm	0.50±0.15mm	0.60±0.15mm	200
Φ3.5	+0.35mm	0.35±0.05mm	0.35±0.05mm	0.50±0.15mm	0.50±0.15mm	0.60±0.15mm	200
Φ4.0	+0.35mm	0.35±0.05mm	0.35±0.05mm	0.50±0.15mm	0.50±0.15mm	0.60±0.15mm	100
Φ4.5	+0.35mm	0.35±0.05mm	0.35±0.05mm	0.50±0.15mm	0.50±0.15mm	0.60±0.15mm	100
Φ5.0	+0.35mm	0.35±0.05mm	0.35±0.05mm	0.50±0.15mm	0.50±0.15mm	0.70±0.15mm	100
Φ6.0-9.0mm	+0.50mm	0.45±0.05mm	0.45±0.05mm	0.60±0.15mm	0.60±0.15mm	0.70±0.15mm	100
Φ10.0-12.0mm	+0.70mm	0.50±0.05mm	0.50±0.05mm	0.65±0.15mm	0.65±0.15mm	0.80±0.15mm	50/30
Φ13.0-35.0mm	+0.80mm	0.50±0.05mm	0.50±0.05mm	0.70±0.15mm	0.70±0.15mm	0.80±0.20mm	30/20
