VOLSUN-Aramid
VOLSUN

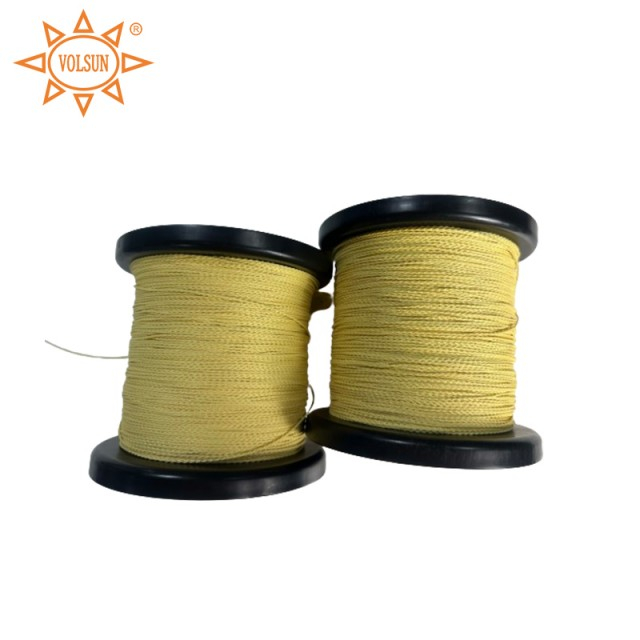

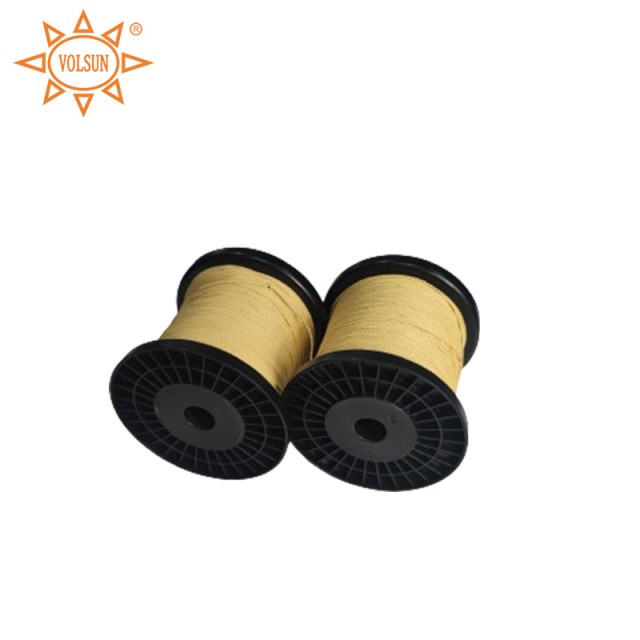

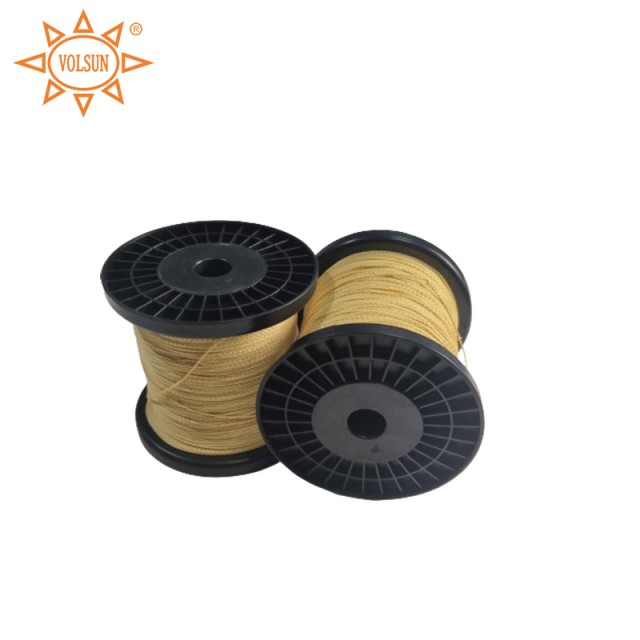

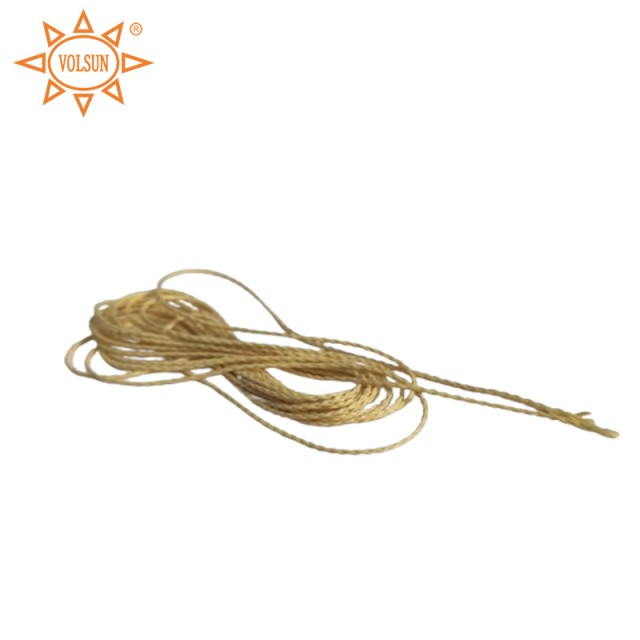

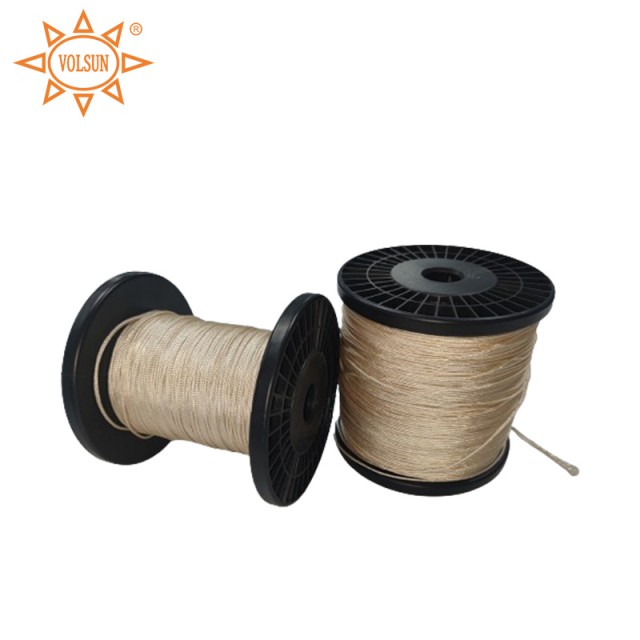

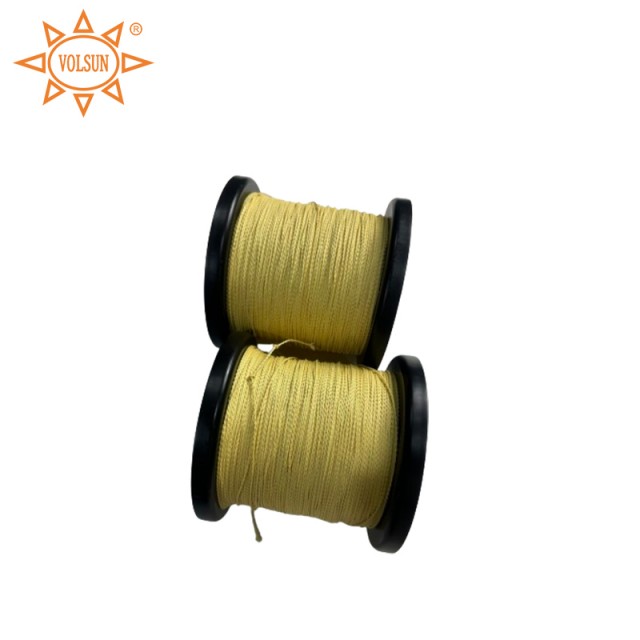

It is composed of poly(p-phenylene terephthalamide) fiber which is light, smooth surface, strong and tough mechanical properties, excellent high temperature resistance, corrosion resistance and excellent dielectric properties. It is used in high-performance structural parts of aviation, aerospace, high-speed trains and automobiles, rail transit, nuclear power, hydropower and power grid engineering, high-end insulation materials for large motors and transformers.
Temperature Resistance Grade: C
Color: Light yellow
Operating Temperature: : -40℃～+200℃
Light, high strength, excellent aging resistance
No decompose and melt at high temperature. Alkali corrosion resistance, high temperature resistance
Item | Technical Performance | Test Standard |
Appearance | No burr, No yarn fall off | Visual |
Oxygen Index | 29% | / |
Breaking Strength | ≥600N（Φ1.0mm） | GB/T 8834-2016 |
Elongation at break | ≤10% | GB/T 8834-2016 |
High temperature resistance | No melting and no coking by visual inspection | FZ/T 63045-2018 （204±5℃，5min） |
Diameter（mm） | Tolerance（mm） | Package length（m） |
1.0 | ±0.2 | 1000 |
1.3 | ±0.2 | 1000 |
Note：Special sizes and package are available as request.
