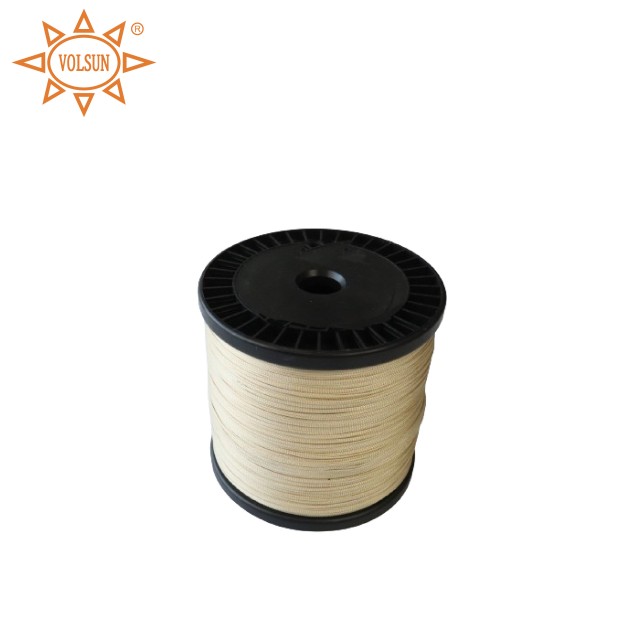

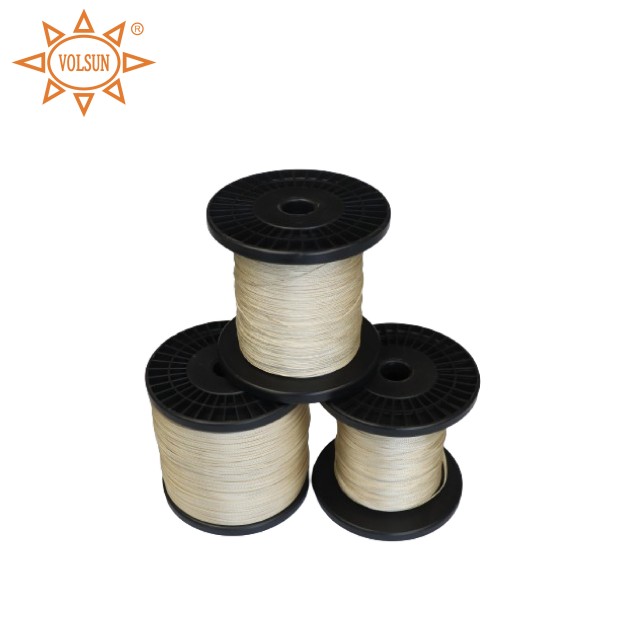

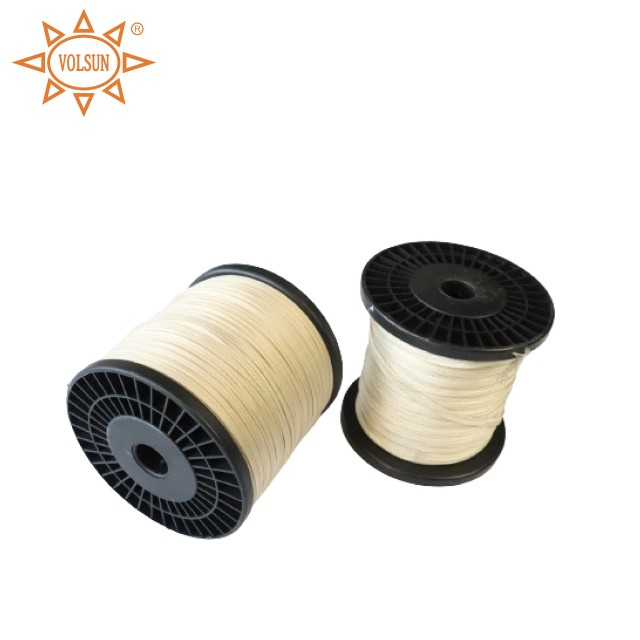

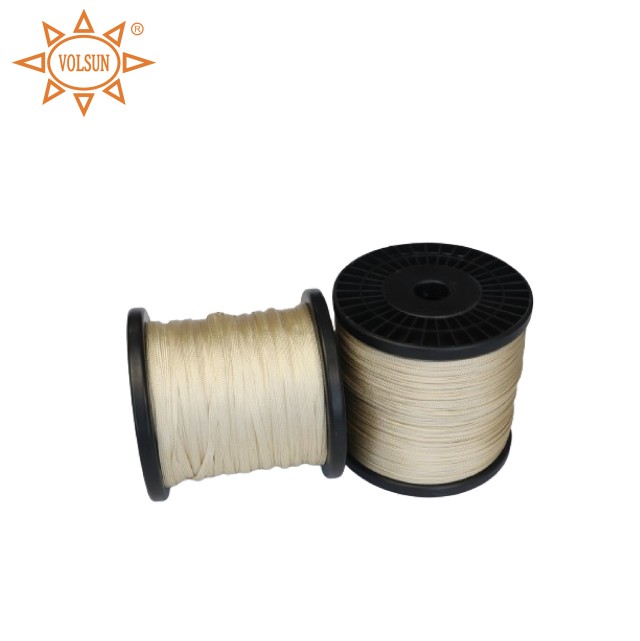

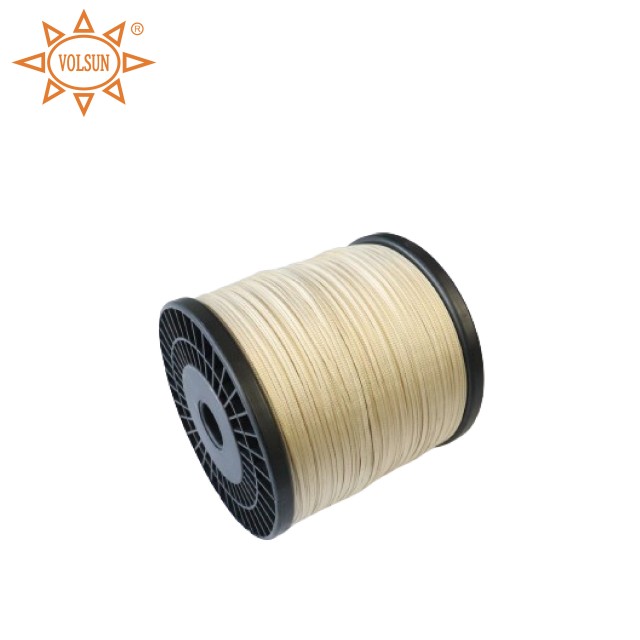

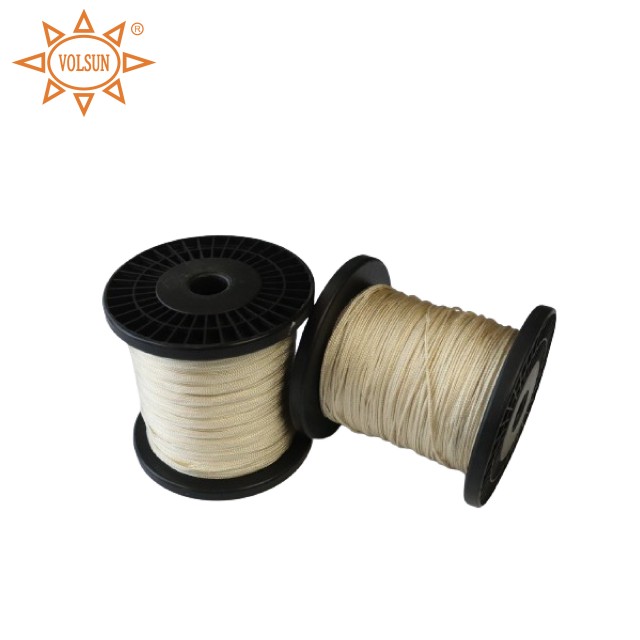

High Temperature Corrosion Resistant Flame Retardant EV Motor Cable Winding PPS Lashing Rope

PPS lashing rope is woven from polyphenylene sulfide fiber material, which has high temperature resistance, corrosion resistance and high flame retardant performance. PPS woven cord is widely used for wire harness bundling protection in new energy motors, electromechanical equipment, vehicles and other fields.

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • VOLSUN-PPS

  • VOLSUN

Describtion


PPS binding rope is crafted from fibers composed of polyphenylene sulfide material, renowned for its capacity to withstand extreme temperatures, resist corrosion, and exhibit exceptional flame-inhibiting capabilities. This versatile pps rope finds extensive application in safeguarding wire harnesses within the domains of emerging energy-driven motors, electromechanical machinery, automotive systems, and various other industries.


Structure


pps lashing rope






Features


  • Operating temperature:-40℃~200℃

  • Halogen-free, self-extinguishing once away from fire

  • Good chemical resistance

  • Chemical Resistance: PPS lashing rope has a high resistance to most acids, bases, solvents, and chemicals, making it suitable for harsh chemical environments.

  • Thermal Stability: PPS material has a high melting point and thermal stability, allowing for long-term use at temperatures up to 220°C and short-term exposure to temperatures up to 260°C.

  • Mechanical Strength: The PPS binding rope has good tensile strength and abrasion resistance, making it suitable for high-strength binding and fixation.

  • Electrical Insulation: PPS material has excellent electrical insulation properties, making it suitable for use in the electronics and electrical industries.

  • Dimensional Stability: The PPS lashing rope maintains good dimensional stability under high temperatures or chemical environments, without deformation due to temperature changes.



Technical Performance


Item

Technical Data

Test Standard

Appearance

No burr, No yarn fall off

Visual Inspection

Breaking strength

≥210N(Φ1.3mm)

GB-T 8834-2016

Elongation at break

20%

ISO 2062

High temperature resistance

Breaking strength retention≥85%

200±3℃,72h

Dry heat shrinkage

≤10%(Diameter 1.5mm)

180℃,10min

Flame retardant rating

V-0

UL94

Low temperature performance

No crack after bending at -40℃

GB/T 7113.2

Resistant to gearbox oil

The tensile strength shall be at least 70% of the initial value

T/CEEIA 415-2019

8 cycles:155°C,40h;-45°C,8h


Dimensions


Diameter(mm)

Tolerance(mm)

Package length(m)

0.75

±0.2

1000

0.8

±0.2

1000

1.0

±0.2

1000

1.3

±0.2

1000

1.8

±0.2

500

Note:  Special size and package are available on request.
