Suzhou Volsun Electronics Technology Co., Ltd.
| Quantity: | |
|---|---|
NS-GF200RUB-D
Volsun

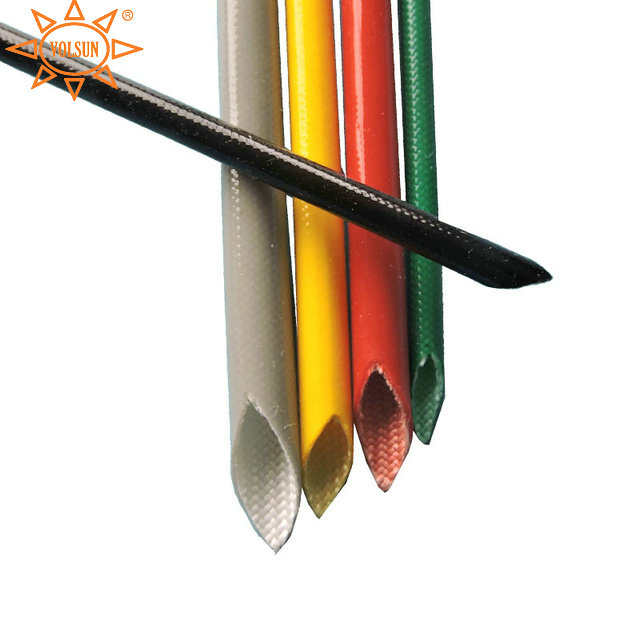

Volsun Silicone rubber fiberglass sleeve is a composite material made by weaving alkali-free glass fiber into a tube, then coating the outer layer with silicone rubber and subjecting it to curing treatment. This fiberglass sleeve has high dielectric strength, good flexibility, heat aging resistance, and flame retardancy, with a temperature resistance rating of up to 200°C, performing well in high-temperature environments.
Silicone rubber coated fiberglass sleeving are widely used in fields such as new energy vehicles, special vehicles, rail transit, and military aerospace, mainly for circuit insulation protection. Their excellent heat resistance also makes them extensively applicable in high-temperature environments such as smelting workshops, power industry, and foundry industry. In addition, this material is also used for insulation protection in H class motors, household appliances, electric heating devices, and special lamps.
In addition to excellent insulation properties, silicone fiberglass braided sleeves also possess good corrosion resistance, aging resistance, and heat dissipation. These characteristics enable them to maintain flexibility and elasticity even at low temperatures (-50°C), without being damaged by temperature changes.
Operating temperature: -40℃ ~ 200℃
Environmental protection standards: RoHS, REACH

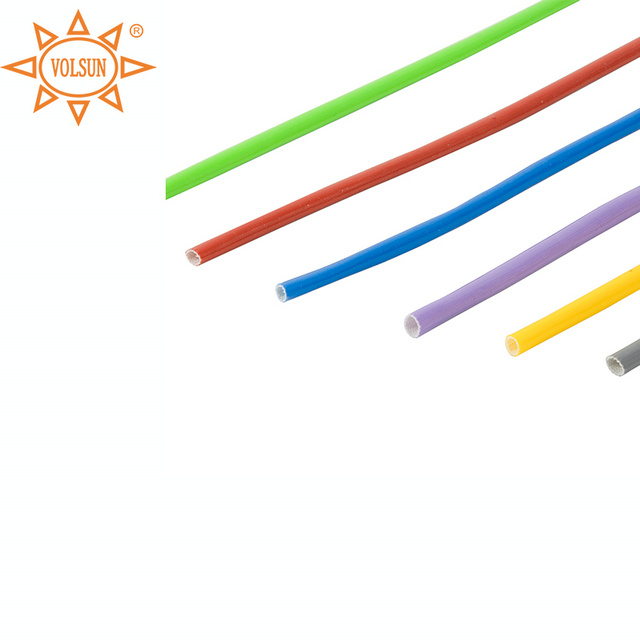

Standard color: transparent, white, black, red, yellow, blue, green, orange, other colors can be customized.
Properties | Typical Data | Test method |
Appearance | No leakage, cracking,etc | GB/T 7113.1-2014 |
Hydrolysis of coating | No coating displacement, adhesion,etc | GB/T 7113.2-2014 |
Cold bending | -40℃, 4h, no cracks, coating peeling and delamination | GB/T 7113.2-2014 |
Flame retardant | HB | UL94 |
Breakdown voltage | Reference standards | GB/T 7113.2-2014 |
Tear strength | ≥50N/mm(Except size below ID4.0mm) | / |
Size（ mm ） | Wall thickness W（mm） | Standard Packing | ||||
Diameter (mm) | Tolerance (mm) | 1500V | 2500V | 4000V | 7000V | M/Roll |
Φ2.0 | -0.10～0.30 | 0.35±0.10 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 100 |
Φ2.5 | -0.10～0.30 | 0.35±0.10 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 100 |
Φ3.0 | -0.10～0.30 | 0.35±0.10 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 100 |
Φ3.5 | -0.10～0.40 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 100 |
Φ4.0 | -0.10～0.40 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 100 |
Φ4.5 | -0.10～0.40 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 100 |
Φ5.0 | -0.10～0.40 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 100 |
Φ5.5 | -0.10～0.40 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 0.60±0.10 | 100 |
Φ6.0 | -0.10～0.40 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 0.60±0.10 | 100 |
Φ7.0 | -0.10～0.50 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 0.60±0.10 | 100 |
Φ8.0 | -0.10～0.50 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 0.65±0.10 | 50 |
Φ9.0 | -0.10～0.50 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 0.65±0.10 | 50 |
Φ10.0 | -0.20～0.70 | 0.50±0.15 | 0.55±0.15 | 0.65±0.15 | 0.70±0.15 | 50 |
Φ11.0 | -0.20～0.70 | 0.50±0.15 | 0.55±0.15 | 0.65±0.15 | 0.70±0.15 | 50 |
Φ12.0 | -0.20～0.70 | 0.50±0.15 | 0.55±0.15 | 0.65±0.15 | 0.70±0.15 | 50 |
Φ13.0 | -0.30～0.80 | 0.55±0.15 | 0.60±0.15 | 0.70±0.15 | 0.75±0.15 | 50 |
Φ14.0 | -0.30～0.80 | 0.55±0.15 | 0.60±0.15 | 0.70±0.15 | 0.75±0.15 | 50 |
Φ15.0 | -0.30～0.80 | 0.55±0.15 | 0.60±0.15 | 0.70±0.15 | 0.75±0.15 | 50 |
Φ16.0 | -0.30～0.80 | 0.55±0.15 | 0.60±0.15 | 0.70±0.15 | 0.75±0.15 | 50 |
Φ17.0 | -0.50～1.00 | 0.60±0.20 | 0.60±0.20 | 0.75±0.20 | 0.80±0.20 | 30 |
Φ18.0 | -0.50～1.00 | 0.60±0.20 | 0.65±0.20 | 0.75±0.20 | 0.80±0.20 | 30 |
Φ19.0 | -0.50～1.00 | 0.60±0.20 | 0.65±0.20 | 0.80±0.20 | 0.85±0.20 | 30 |
Φ20.0 | -0.50～1.00 | 0.60±0.20 | 0.65±0.20 | 0.80±0.20 | 0.85±0.20 | 30 |
Φ22.0 | -0.50～1.00 | 0.65±0.20 | 0.75±0.20 | 0.85±0.20 | 0.90±0.20 | 30 |
Φ25.0 | -0.50～1.00 | 0.75±0.20 | 0.85±0.20 | 0.95±0.20 | 1.05±0.20 | 30 |
Noted: Special sizes & packing are available on request.
Q1: What are the key performance of the Silicone-Coated Glass Fiber Tubing?
A: The Silicone-Coated Glass Fiber Tubing boasts high dielectric strength, excellent softness, heat aging resistance, oil resistance, flame retardancy, and a remarkable temperature resistance of up to 200°C.
Q2: In which industries or applications can the Silicone-Coated Glass Fiber Tubing be used?
A: The Silicone-Coated Glass Fiber Tubing finds wide-ranging utility across industries such as new energy vehicles, special vehicles, rail transit, military, and aerospace.
Q3: What is the quality assurance of the Silicone Coated Glass Fiber Sleeving?
A: We have achieved certifications such as IATF 16949, ISO 9001, and other quality standards. Our Silicone Coated Glass Fiber Sleeving is manufactured using high-quality alkali-free glass fiber and premium-grade silicone rubber and have been approved by UL, RoHS, REACH, etc.
Q4: What is the typical lead time for orders of Silicone Rubber Fiberglass Sleeve?
A: For regular sizes, the lead time usually is 5 working days around.
Q5: Can the silicone coated glass fiber sleeve be customized to specific requirements?
A: Yes, please provide your exact customized requirements.
