Suzhou Volsun Electronics Technology Co., Ltd.
| Quantity: | |
|---|---|
MT-VLU
VOLSUN

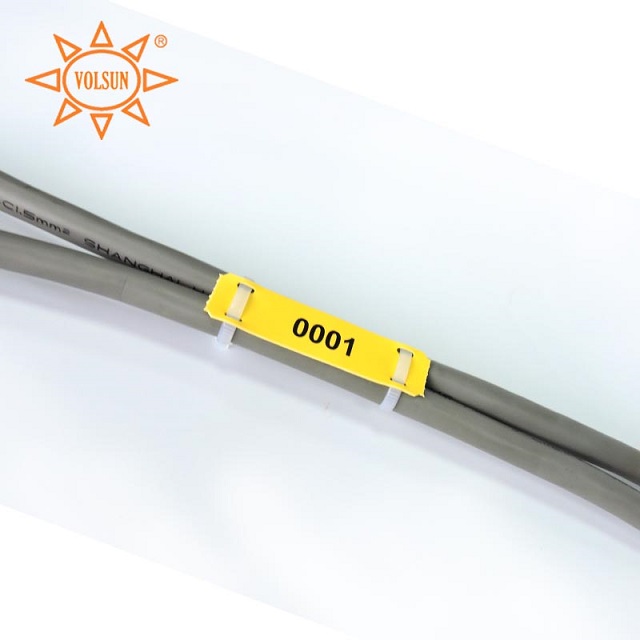

Designed to be environmentally friendly, economical and practical with high reliability marking requirements, it is made of environmentally friendly polyolefin materials. It is bound to cables or wiring harnesses using standard cable ties. It is mainly used to mark the interface and route direction of large-diameter cable harnesses that have high reliability requirements in the electronics, communications, and power industries. It is especially suitable for the identification of the maintenance cable interface without discharging electrical load to achieve the effect of permanent identification. Conforms to UL224, CAN/CSA C22.2 standards. The product printing has excellent abrasion resistance and wear resistance, even if it encounters the erosion of cleaning agents or military fuel, the color code fastness still meets the requirements of the U.S. military standard SAE-AS 81531 and MIL-STD-202F/215J, and maintains the permanent identification effect.
Halogen-free materials, suitable for electronic/power lines, communications, construction and other industries, without the need to disconnect the electrical circuit, to achieve non-stop installation, disassembly and maintenance
Only using cable, no extra work, easy to operate
Operating temperature: -55℃ ~ +125℃
Maximum storage and transportation temperature: +50℃
RoHS compliant, meets SONY SS-00259
High temperature non-melting, low temperature non-brittle, scratch resistance, wear resistance, permanent identification
Computer-printable, any character and logo are easy to design.
Specifications | Typical value | Test standard | ||
Item | unit | status | ||
Tensile strength | Mpa | Before aged | ≥10.3 | ISO 37 158℃，168h |
After aged | ≥6.9 | |||
| Elongation at break | % | Before aged | ≥200 | |
After aged | ≥100 | |||
| Thermal shock | - | Before aged | No cracks, no sticky flow, no dripping | twine specified shaft diameter，225℃,4h |
Withstand voltage | V | Before aged | 2500V，No breakdown in 60 seconds | UL 224 |
| Breakdown strength | NV/m | Before aged | ≥19.7 | IEC 60243 158℃,168h |
After aged | ≥15.8 | |||
Volume resistivity | Ω.cm | Before aged | ≥1014 | IEC 60093 |
Water absorption | % | Before aged | ≤1.0 | ASTM D 570 |
Bare copper corrosion | - | Before aged | No corrosion | 23℃,Rh 95±5%,24h 175℃,16h |
Low bending flexibility | - | Before aged | No cracks | twine specified shaft diameter，-55℃,1h |
Flame retardancy | - | Before aged | S3 | DIN 5510-2 |

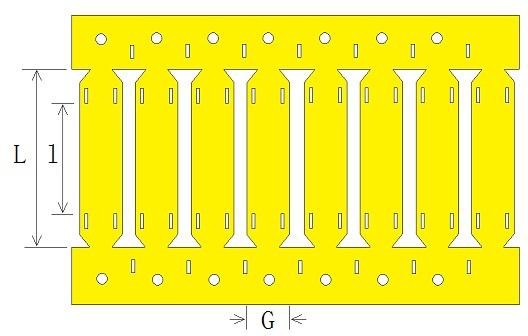

| Code for order | Width（mm） | Length（mm） | Typing range | Cable outer diameter range（mm） | |
| High （mm） | Length（mm） | ||||
MT-VLU-10.4-45/4- | 10.4 | 45 | 10.4 | 25 | 5.08～12.7 |
MT-VLU-10.4-53/4- | 10.4 | 53 | 10.4 | 33 | 5.08～12.7 |
MT-VLU-10.4-64/4- | 10.4 | 64 | 10.4 | 44 | 5.08～12.7 |
MT-VLU-10.4-76/6- | 10.4 | 76 | 10.4 | 56 | 5.08～12.7 |
MT-VLU-10.4-90/6- | 10.4 | 90 | 10.4 | 70 | 5.08～12.7 |
MT-VLU-15.0-45/4- | 15.0 | 45 | 15.0 | 25 | 12.7～19.1 |
MT-VLU-15.0-53/4- | 15.0 | 53 | 15.0 | 33 | 12.7～19.1 |
MT-VLU-15.0-64/4- | 15.0 | 64 | 15.0 | 44 | 12.7～19.1 |
MT-VLU-15.0-76/6- | 15.0 | 76 | 15.0 | 56 | 12.7～19.1 |
MT-VLU-15.0-90/6- | 15.0 | 90 | 15.0 | 70 | 12.7～19.1 |
MT-VLU-20.3-45/4- | 20.3 | 45 | 20.3 | 25 | 19.1～25.4 |
MT-VLU-20.3-53/4- | 20.3 | 53 | 20.3 | 33 | 19.1～25.4 |
MT-VLU-20.3-64/4- | 20.3 | 64 | 20.3 | 44 | 19.1～25.4 |
MT-VLU-20.3-76/6- | 20.3 | 76 | 20.3 | 56 | 19.1～25.4 |
MT-VLU-20.3-90/6- | 20.3 | 90 | 20.3 | 70 | 19.1～25.4 |
MT-VLU-25.4-45/4- | 25.4 | 45 | 25.4 | 25 | ≥25.4 |
MT-VLU-25.4-53/4- | 25.4 | 53 | 25.4 | 33 | ≥25.4 |
MT-VLU-25.4-64/4- | 25.4 | 64 | 25.4 | 44 | ≥25.4 |
MT-VLU-25.4-76/6- | 25.4 | 76 | 25.4 | 56 | ≥25.4 |
MT-VLU-25.4-90/6- | 25.4 | 90 | 25.4 | 70 | ≥25.4 |
