Suzhou Volsun Electronics Technology Co., Ltd.
| Quantity: | |
|---|---|
RUBLS-SILIC
Volsun
Product Description

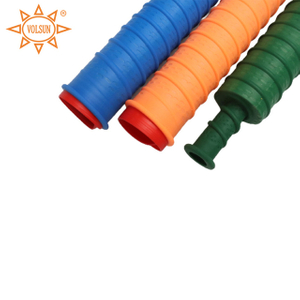

RUBLS-SILIC Silicone Rubber Cold shrink tube Series Cold Shrink Lug and Connector Insulators is made of special purpose silicone rubber with a high shrink ratio and excellent physical and mechanical properties like slab and prick resistance. It reliably seals electrical connections of electric communications and cable televisions against water and moisture and effectively insulates wire and cable connections or joints and other electrical connections etc.
Features
Continuous operating temperature: -60℃～200℃
Shrink Ratio : 4:1 or so .Suits for an extensive range of cable sizes because of the shrinkage
Retains its resiliency and pressure even after prolonged years of ageing and exposure, seals tight against moisture and water
Good weather resistance, ozone ageing, ultraviolet and salt mist corrosion resistance, performs stably under long-period exposure to the sun
Excellent tear resistance
Simple installation, requires no special heating tools , and adhesive to seal the connections
Standard color: black
Technical Performance
Properties | Typical Data | Test method |
Shore Hardness | 40±5 | GB/T 531-2008 |
Tensile Strength | ≥9.0MPa | GB/T 528-2009 |
100% Stress at Definite Elongation | ≤1.2MPa | GB/T 528-2009 |
200% Stress at Definite Elongation | ≤2.0MPa | GB/T 528-2009 |
Elongation at Break | ＞800% | GB/T 528-2009 |
Tear Strength | ≥35kN/m | GB/T 529-2008 |

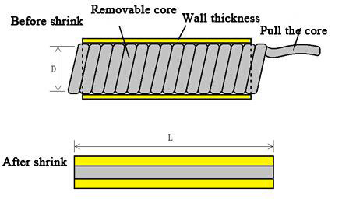

Structure
Dimensions
Size | Min Cable Outer Diameter (mm) | Max Cable Outer Diameter (mm | Full Recovered Length (mm) |
VS-18*76 | 6.0 | 13.0 | 76 |
VS-20*25 | 6.0 | 15.0 | 25 |
VS-25*76 | 8.0 | 19.0 | 76 |
VS-28*140 | 9.0 | 22.0 | 140 |
VS-28*150 | 9.0 | 22.0 | 150 |
VS-32*150 | 10.0 | 27.0 | 150 |
VS-32*180 | 10.0 | 27.0 | 180 |
VS-35*178 | 10.0 | 30.0 | 178 |
VS-35*280 | 10.0 | 30.0 | 280 |
VS-40*130 | 12.0 | 33.0 | 130 |
VS-40*150 | 12.0 | 33.0 | 150 |
VS-45*230 | 13.0 | 39.0 | 230 |
VS-45*305 | 13.0 | 39.0 | 305 |
VS-53*230 | 15.0 | 46.0 | 230 |
VS-53*305 | 15.0 | 46.0 | 305 |
VS-65*350 | 21.0 | 58.0 | 350 |
VS-80*305 | 25.0 | 72.0 | 305 |
Remark: Special sizes & packing are available on request.
Product Description
RUBLS-SILIC Silicone Rubber Cold shrink tube Series Cold Shrink Lug and Connector Insulators is made of special purpose silicone rubber with a high shrink ratio and excellent physical and mechanical properties like slab and prick resistance. It reliably seals electrical connections of electric communications and cable televisions against water and moisture and effectively insulates wire and cable connections or joints and other electrical connections etc.
Features
Continuous operating temperature: -60℃～200℃
Shrink Ratio : 4:1 or so .Suits for an extensive range of cable sizes because of the shrinkage
Retains its resiliency and pressure even after prolonged years of ageing and exposure, seals tight against moisture and water
Good weather resistance, ozone ageing, ultraviolet and salt mist corrosion resistance, performs stably under long-period exposure to the sun
Excellent tear resistance
Simple installation, requires no special heating tools , and adhesive to seal the connections
Standard color: black
Technical Performance
Properties | Typical Data | Test method |
Shore Hardness | 40±5 | GB/T 531-2008 |
Tensile Strength | ≥9.0MPa | GB/T 528-2009 |
100% Stress at Definite Elongation | ≤1.2MPa | GB/T 528-2009 |
200% Stress at Definite Elongation | ≤2.0MPa | GB/T 528-2009 |
Elongation at Break | ＞800% | GB/T 528-2009 |
Tear Strength | ≥35kN/m | GB/T 529-2008 |
Structure
Dimensions
Size | Min Cable Outer Diameter (mm) | Max Cable Outer Diameter (mm | Full Recovered Length (mm) |
VS-18*76 | 6.0 | 13.0 | 76 |
VS-20*25 | 6.0 | 15.0 | 25 |
VS-25*76 | 8.0 | 19.0 | 76 |
VS-28*140 | 9.0 | 22.0 | 140 |
VS-28*150 | 9.0 | 22.0 | 150 |
VS-32*150 | 10.0 | 27.0 | 150 |
VS-32*180 | 10.0 | 27.0 | 180 |
VS-35*178 | 10.0 | 30.0 | 178 |
VS-35*280 | 10.0 | 30.0 | 280 |
VS-40*130 | 12.0 | 33.0 | 130 |
VS-40*150 | 12.0 | 33.0 | 150 |
VS-45*230 | 13.0 | 39.0 | 230 |
VS-45*305 | 13.0 | 39.0 | 305 |
VS-53*230 | 15.0 | 46.0 | 230 |
VS-53*305 | 15.0 | 46.0 | 305 |
VS-65*350 | 21.0 | 58.0 | 350 |
VS-80*305 | 25.0 | 72.0 | 305 |
Remark: Special sizes & packing are available on request.
