Suzhou Volsun Electronics Technology Co., Ltd.
| Quantity: | |
|---|---|
NS-GF200RUB-D
Volsun

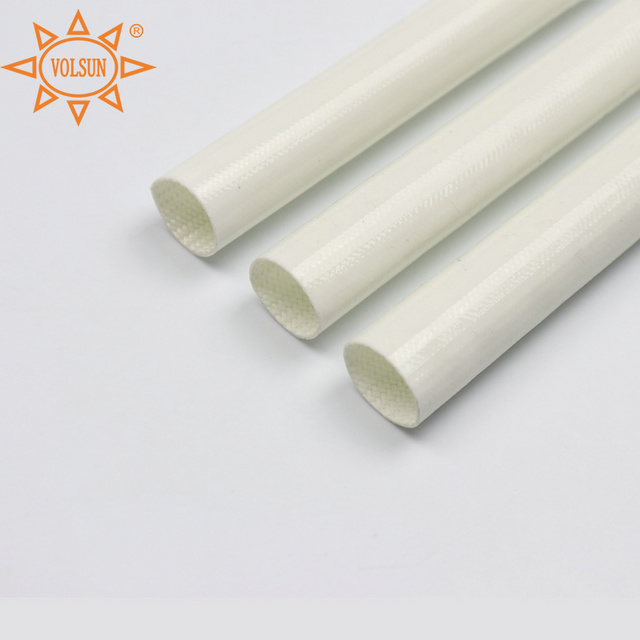

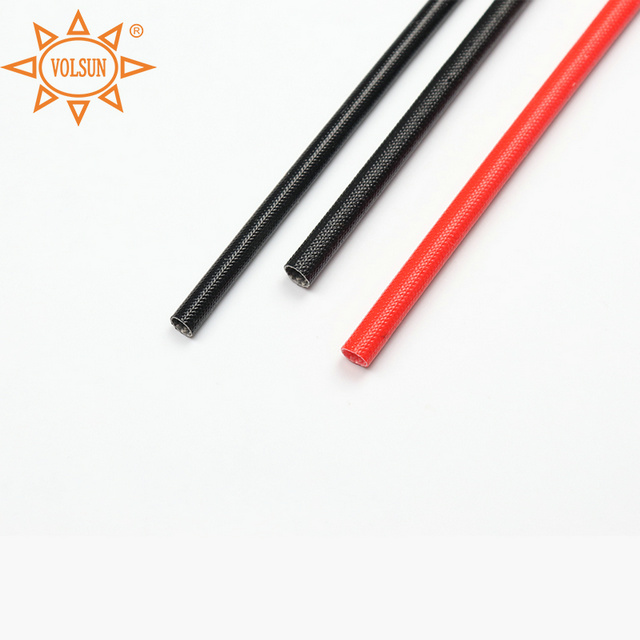

The Introduction of Volsun Fiberglass Sleeves
The silicone rubber glass fiber sleeve is with UL certificated, RoHS & REACH compliant, made from alkali-free glass fibers woven into a tube and then coated with silicone rubber before being cured, is a highly specialized material designed for high-performance insulation applications. This product combines the excellent dielectric strength of glass fibers with the flexibility, heat resistance, aging resistance, and flame retardancy of silicone rubber, making it an ideal choice for environments where high temperatures are common.
One of the key features of this sleeve is its ability to withstand temperatures up to 200°C, which makes it suitable for use in various high-temperature applications. The sleeve's construction involves extruding silicone rubber over the woven glass fibers, followed by high-temperature curing, which enhances its mechanical properties and ensures long-term reliability under harsh conditions .
The silicone rubber glass fiber sleeve is widely used in the new energy vehicle sector, where it provides effective insulation and protection for electrical components exposed to high temperatures and mechanical stresses. Its application extends to special vehicles, rail transit systems, military aerospace, and other industries that require robust electrical insulation solutions.
Temperature Range: -40℃ to 200℃
Compliance with Environmental Standards: RoHS, REACH

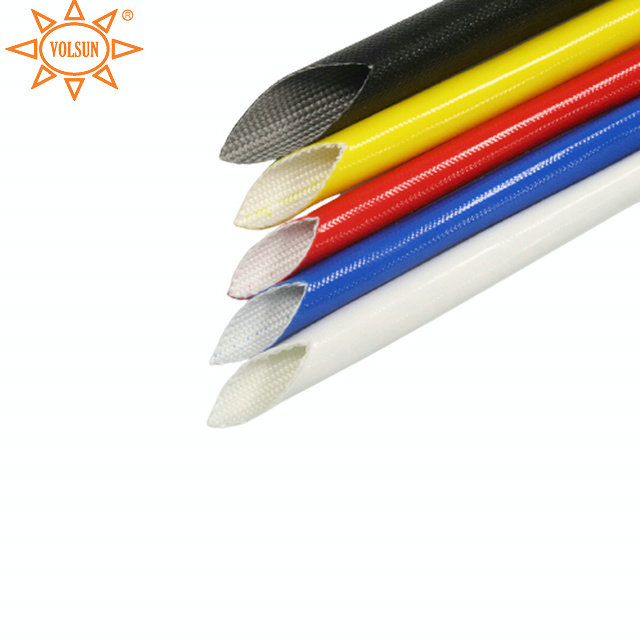

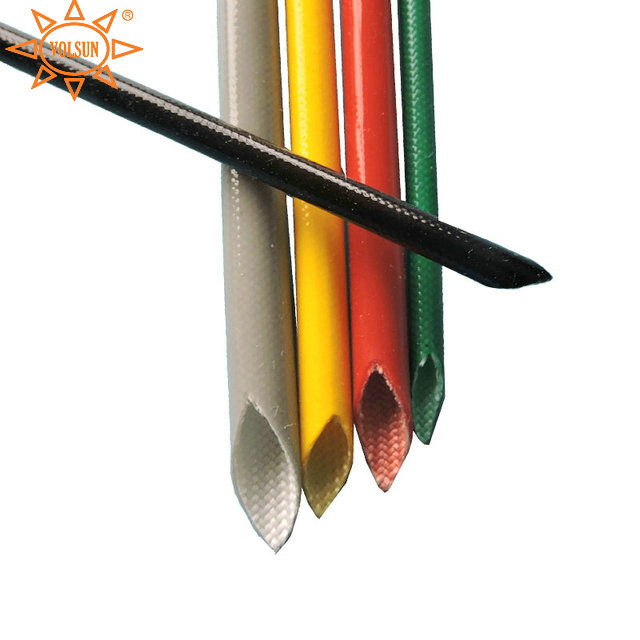

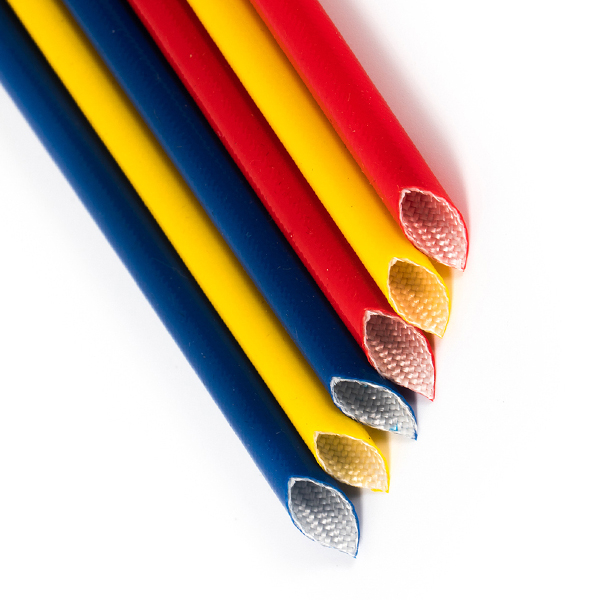

Standard Color Options: Transparent, white, black, red, yellow, blue, green, orange. Customization available for other colors.
Properties | Typical Data | Test method |
Appearance | No leakage, cracking,etc | GB/T 7113.1-2014 |
Hydrolysis of coating | No coating displacement, adhesion,etc | GB/T 7113.2-2014 |
Cold bending | -40℃, 4h, no cracks, coating peeling and delamination | GB/T 7113.2-2014 |
Flame retardant | HB | UL94 |
Breakdown voltage | Reference standards | GB/T 7113.2-2014 |
Tear strength | ≥50N/mm(Except size below ID4.0mm) | / |

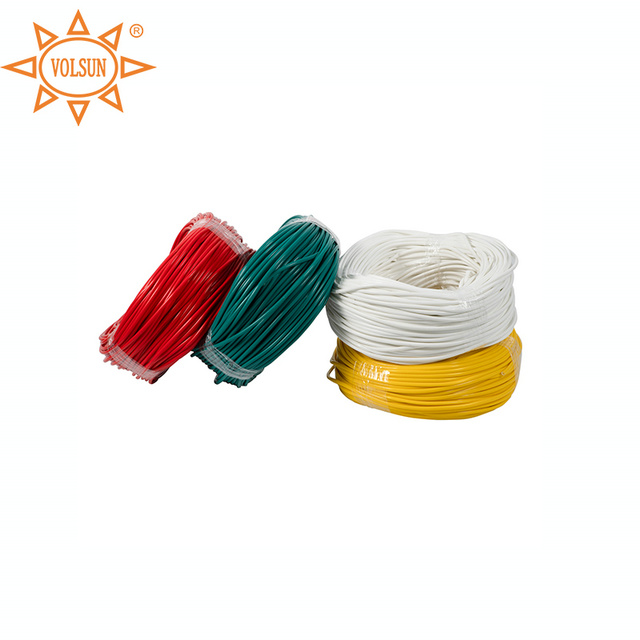

Size（ mm ） | Wall thickness W（mm） | Standard Packing | ||||
Diameter (mm) | Tolerance (mm) | 1500V | 2500V | 4000V | 7000V | M/Roll |
Φ2.0 | -0.10～0.30 | 0.35±0.10 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 100 |
Φ2.5 | -0.10～0.30 | 0.35±0.10 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 100 |
Φ3.0 | -0.10～0.30 | 0.35±0.10 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 100 |
Φ3.5 | -0.10～0.40 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 100 |
Φ4.0 | -0.10～0.40 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 100 |
Φ4.5 | -0.10～0.40 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 100 |
Φ5.0 | -0.10～0.40 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 100 |
Φ5.5 | -0.10～0.40 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 0.60±0.10 | 100 |
Φ6.0 | -0.10～0.40 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 0.60±0.10 | 100 |
Φ7.0 | -0.10～0.50 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 0.60±0.10 | 100 |
Φ8.0 | -0.10～0.50 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 0.65±0.10 | 50 |
Φ9.0 | -0.10～0.50 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 0.65±0.10 | 50 |
Φ10.0 | -0.20～0.70 | 0.50±0.15 | 0.55±0.15 | 0.65±0.15 | 0.70±0.15 | 50 |
Φ11.0 | -0.20～0.70 | 0.50±0.15 | 0.55±0.15 | 0.65±0.15 | 0.70±0.15 | 50 |
Φ12.0 | -0.20～0.70 | 0.50±0.15 | 0.55±0.15 | 0.65±0.15 | 0.70±0.15 | 50 |
Φ13.0 | -0.30～0.80 | 0.55±0.15 | 0.60±0.15 | 0.70±0.15 | 0.75±0.15 | 50 |
Φ14.0 | -0.30～0.80 | 0.55±0.15 | 0.60±0.15 | 0.70±0.15 | 0.75±0.15 | 50 |
Φ15.0 | -0.30～0.80 | 0.55±0.15 | 0.60±0.15 | 0.70±0.15 | 0.75±0.15 | 50 |
Φ16.0 | -0.30～0.80 | 0.55±0.15 | 0.60±0.15 | 0.70±0.15 | 0.75±0.15 | 50 |
Φ17.0 | -0.50～1.00 | 0.60±0.20 | 0.60±0.20 | 0.75±0.20 | 0.80±0.20 | 30 |
Φ18.0 | -0.50～1.00 | 0.60±0.20 | 0.65±0.20 | 0.75±0.20 | 0.80±0.20 | 30 |
Φ19.0 | -0.50～1.00 | 0.60±0.20 | 0.65±0.20 | 0.80±0.20 | 0.85±0.20 | 30 |
Φ20.0 | -0.50～1.00 | 0.60±0.20 | 0.65±0.20 | 0.80±0.20 | 0.85±0.20 | 30 |
Φ22.0 | -0.50～1.00 | 0.65±0.20 | 0.75±0.20 | 0.85±0.20 | 0.90±0.20 | 30 |
Φ25.0 | -0.50～1.00 | 0.75±0.20 | 0.85±0.20 | 0.95±0.20 | 1.05±0.20 | 30 |
Noted: Special sizes & packing are available on request.
Q1: What are the advantages of your silicone rubber coated fiberglass sleeve?
A: The main advantages boast high dielectric strength, excellent softness, heat aging resistance, oil resistance, flame retardancy, and a remarkable temperature resistance of up to 200°C.
Q2: Where can the silicone coating fiberglass sleeving be used?
A: Widely used for insulation protection of wire harness, EV motors, home appliance, lighting equipment, electrical equipment, etc.
Q3: Is there any quality assurance of this kind of fiberglass sleeve?
A: Our silicone coated glass fiber sleeve have been approved by UL, RoHS, REACH, etc. and We have achieved certifications such as IATF 16949, ISO 9001, and other quality standards.
Q4: What is the delivery time of your fiberglass sleeving?
A: The lead time usually is about 5 working days.
