The Distinctions Between Silicone Coated Fiberglass Sleeves and Acrylic Fiberglass Sleeves

When it comes to electrical insulation, the choice of materials plays a crucial role in ensuring safety and efficiency. Two commonly used options for insulation sleeves are silicone rubber fiberglass sleeves and acrylic fiberglass sleeves. While both serve the purpose of electrical insulation, they possess distinct characteristics that make them suitable for different applications.

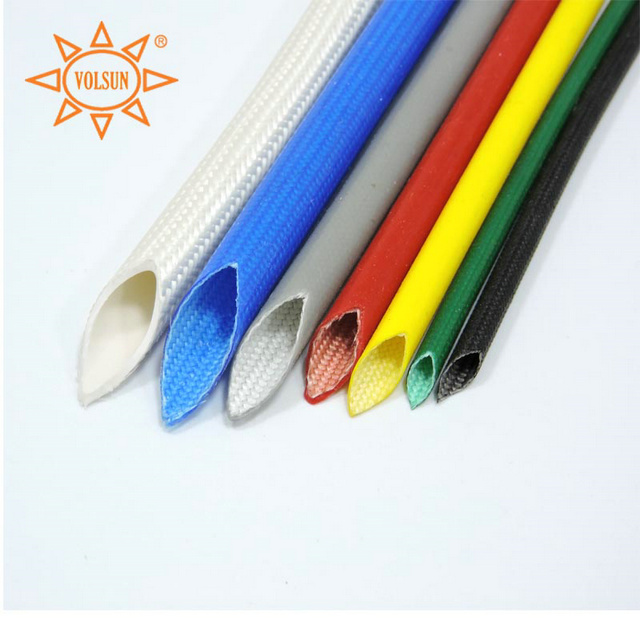

Silicone rubber fiberglass sleeves are known for their exceptional thermal and chemical resistance. They are made by combining silicone rubber with a fiberglass braid, resulting in a flexible and durable insulation solution. The high-temperature resistance of silicone rubber sleeves makes them ideal for applications where exposure to extreme heat is a concern. Additionally, their resistance to chemicals and oils makes them suitable for use in industries such as automotive, aerospace, and manufacturing.

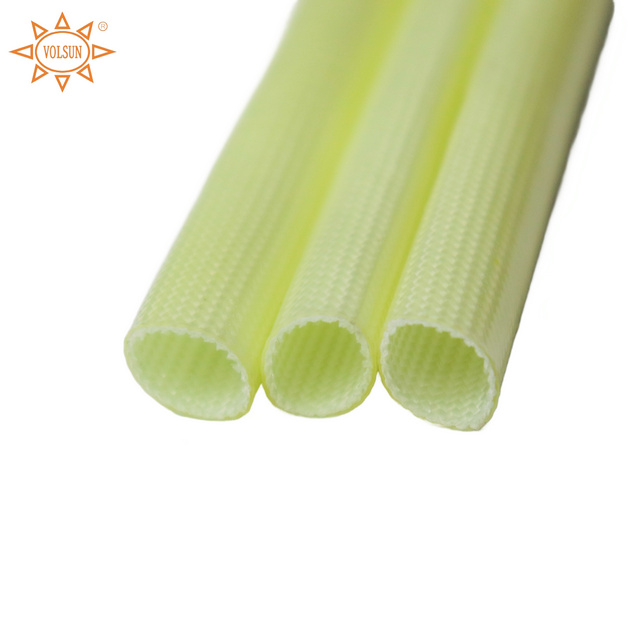

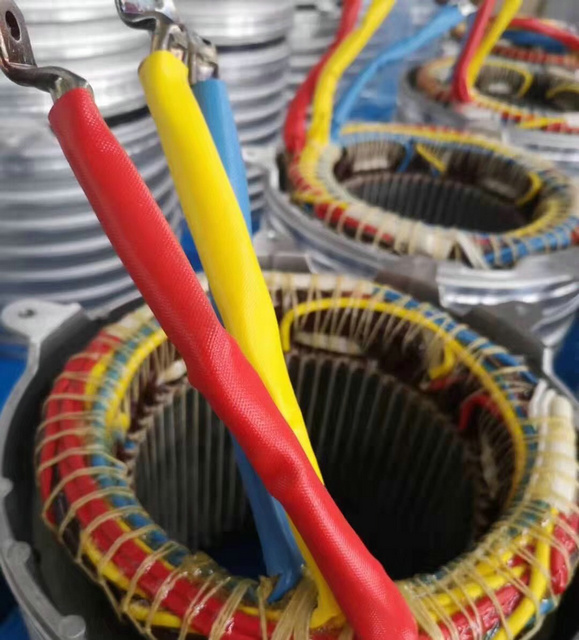

On the other hand, acrylic fiberglass sleeves offer excellent electrical insulation properties. These sleeves are manufactured by impregnating fiberglass braids with acrylic resin, creating a rigid and robust insulation solution. Acrylic fiberglass sleeves are commonly used in applications that require high dielectric strength and resistance to electrical tracking. They find extensive use in the electrical and electronics industry, particularly in motors, transformers, and generators.

One of the key differences between silicone rubber fiberglass sleeves and acrylic fiberglass sleeves lies in their flexibility. Silicone rubber sleeves are highly flexible, allowing for easy installation and maneuverability. This flexibility makes them suitable for applications that involve complex shapes or tight spaces. In contrast, acrylic fiberglass sleeves are rigid and less flexible, making them more suitable for applications that require structural stability and protection against mechanical stress.

Another important distinction is their resistance to moisture. Silicone rubber fiberglass sleeves have more excellent resistance to moisture than acrylic fiberglass sleeves, making them suitable for outdoor applications where exposure to rain, humidity, or water is a concern.

In terms of temperature range, silicone rubber fiberglass sleeves have a broader operating temperature range compared to acrylic fiberglass sleeves. Silicone rubber sleeves can withstand temperatures ranging from -60°C to 200°C, while acrylic fiberglass sleeves typically have a lower temperature limit of around -40°C to 155°C. Therefore, if your application involves extreme temperature conditions, silicone rubber sleeves would be the more suitable choice.
