VOLSUN

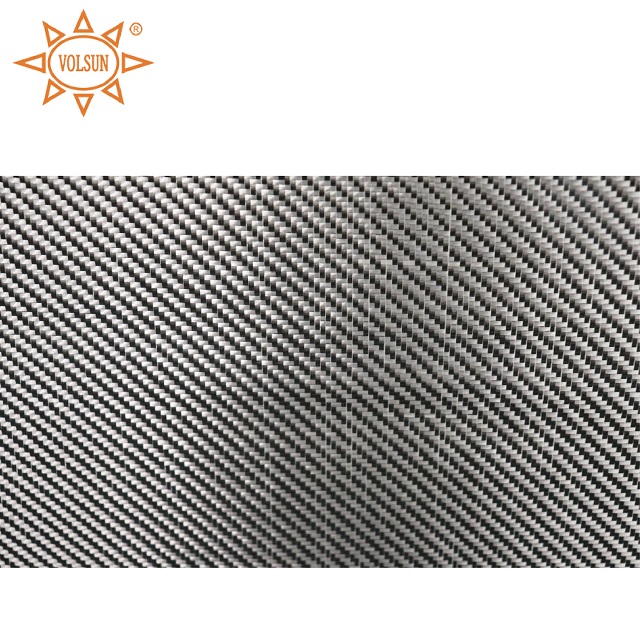

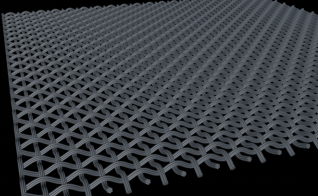

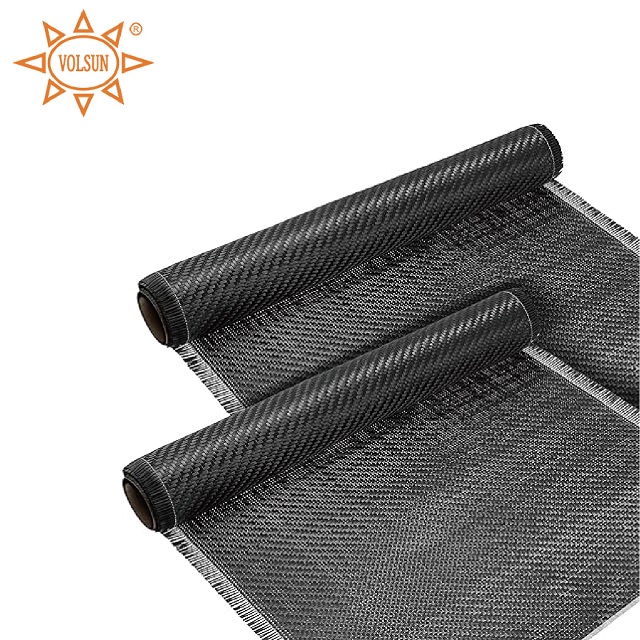

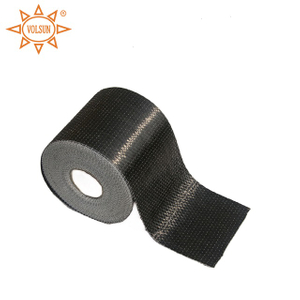

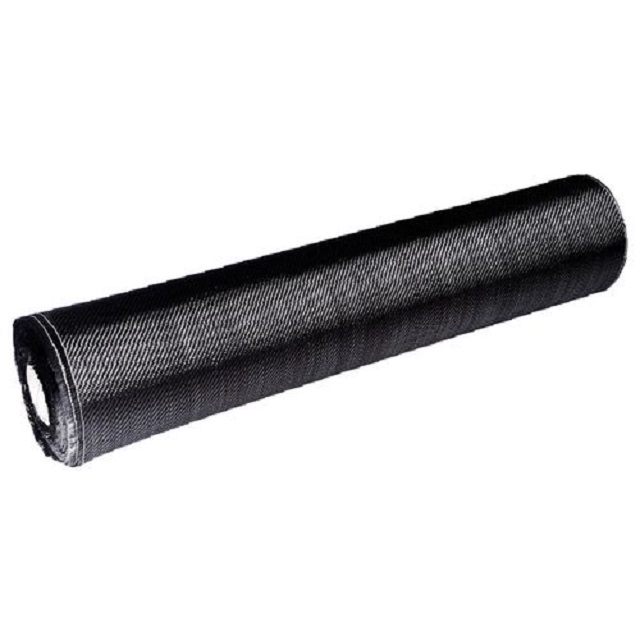

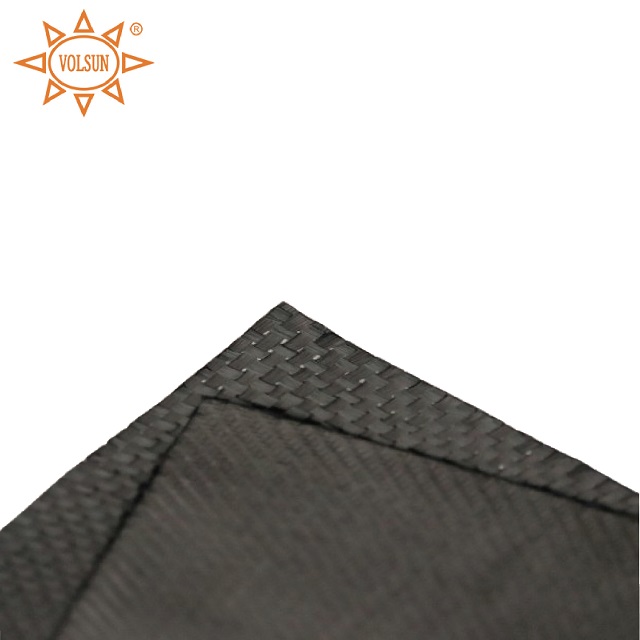

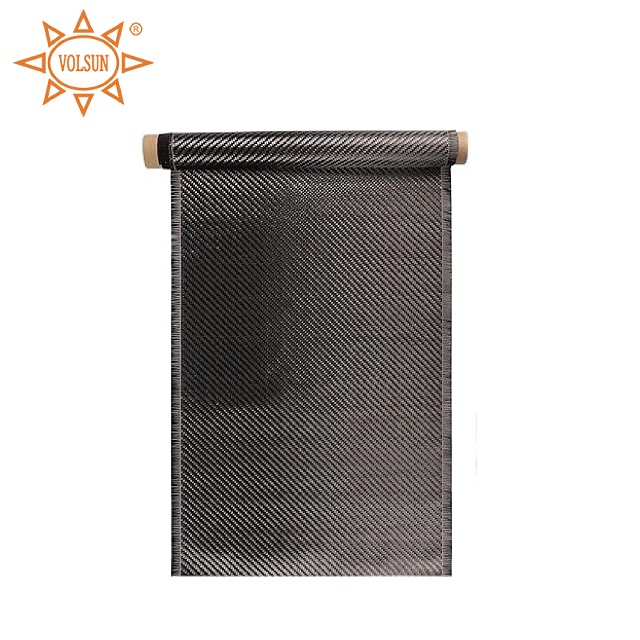

The VS series of bi-directional carbon fiber cloth is made of high-strength carbon fiber in a weaving process that maintains constant tension on the yarns, ensuring straight fiber bundles. It boasts advantages such as light weight, high strength, excellent durability, and corrosion resistance. An effective shaping process is used to prevent loose deformation when the cloth is cut. The cloth can be woven in plain, twill, or satin weaves using 1K, 3K, 6K, 12K, 24K carbon fiber as raw material. The product is mainly used in aerospace, automotive and motorcycle parts, sports equipment, building reinforcement, and various decorative items.
Light weight, high strength, with a specific gravity of only one-fourth that of steel structures, and tensile strength exceeding that of steel.
Made of carbon fiber with superior performance, featuring a sleek black luster and resistance to fuzzing.
Uniform texture, tight structure, and consistent tension.
Processable, the carbon fiber woven cloth can be cut, laminated, and shaped as needed to adapt to different application requirements.
Item | Specification Value | Reference Standard |
Tensile Strength | ≥3400MPa | GB3354-2014 |
Tensile Elastic Modulus | 230GPa | GB3354-2014 |
Elongation Rate | ≥1.6% | GB3354-2014 |
Flexural Strength | ≥700MPa | GB3354-2014 |
Product Name | Model | Fabric Structure | Nominal Weight（g/㎡） | Cloth Length（m） | Width（cm） | Yarn Density（Strand/cm） | |
Warp Yarn Density | Weft Yarn Density | ||||||
Carbon Fiber Bi-directional Woven Cloth | VS20-3KPS | Plain Weave | 200 | 100 | 100 | 50 | 50 |
VS20-3KP | Plain Weave | 200 | 100 | 100 | 50 | 50 | |
VS20-3KXS | Twill Weave | 200 | 100 | 100 | 50 | 50 | |
VS20-3KX | Twill Weave | 200 | 100 | 100 | 50 | 50 | |
VS24-3KPS | Plain Weave | 240 | 100 | 100 | 60 | 60 | |
VS24-3KPS | Plain Weave | 240 | 100 | 100 | 60 | 60 | |
VS24-3KXS | Twill Weave | 240 | 100 | 100 | 50 | 70 | |
VS24-3KXS | Twill Weave | 240 | 100 | 100 | 50 | 70 | |
VS36-12KP | Plain Weave | 360 | 25-100 | 100 | 22 | 22 | |
VS40-12KP | Plain Weave | 400 | 25-100 | 100 | 25 | 25 | |
The VS series of bi-directional carbon fiber cloth is made of high-strength carbon fiber in a weaving process that maintains constant tension on the yarns, ensuring straight fiber bundles. It boasts advantages such as light weight, high strength, excellent durability, and corrosion resistance. An effective shaping process is used to prevent loose deformation when the cloth is cut. The cloth can be woven in plain, twill, or satin weaves using 1K, 3K, 6K, 12K, 24K carbon fiber as raw material. The product is mainly used in aerospace, automotive and motorcycle parts, sports equipment, building reinforcement, and various decorative items.
Light weight, high strength, with a specific gravity of only one-fourth that of steel structures, and tensile strength exceeding that of steel.
Made of carbon fiber with superior performance, featuring a sleek black luster and resistance to fuzzing.
Uniform texture, tight structure, and consistent tension.
Processable, the carbon fiber woven cloth can be cut, laminated, and shaped as needed to adapt to different application requirements.
Item | Specification Value | Reference Standard |
Tensile Strength | ≥3400MPa | GB3354-2014 |
Tensile Elastic Modulus | 230GPa | GB3354-2014 |
Elongation Rate | ≥1.6% | GB3354-2014 |
Flexural Strength | ≥700MPa | GB3354-2014 |
Product Name | Model | Fabric Structure | Nominal Weight（g/㎡） | Cloth Length（m） | Width（cm） | Yarn Density（Strand/cm） | |
Warp Yarn Density | Weft Yarn Density | ||||||
Carbon Fiber Bi-directional Woven Cloth | VS20-3KPS | Plain Weave | 200 | 100 | 100 | 50 | 50 |
VS20-3KP | Plain Weave | 200 | 100 | 100 | 50 | 50 | |
VS20-3KXS | Twill Weave | 200 | 100 | 100 | 50 | 50 | |
VS20-3KX | Twill Weave | 200 | 100 | 100 | 50 | 50 | |
VS24-3KPS | Plain Weave | 240 | 100 | 100 | 60 | 60 | |
VS24-3KPS | Plain Weave | 240 | 100 | 100 | 60 | 60 | |
VS24-3KXS | Twill Weave | 240 | 100 | 100 | 50 | 70 | |
VS24-3KXS | Twill Weave | 240 | 100 | 100 | 50 | 70 | |
VS36-12KP | Plain Weave | 360 | 25-100 | 100 | 22 | 22 | |
VS40-12KP | Plain Weave | 400 | 25-100 | 100 | 25 | 25 | |
