NS-GF200RUB-D
Volsun

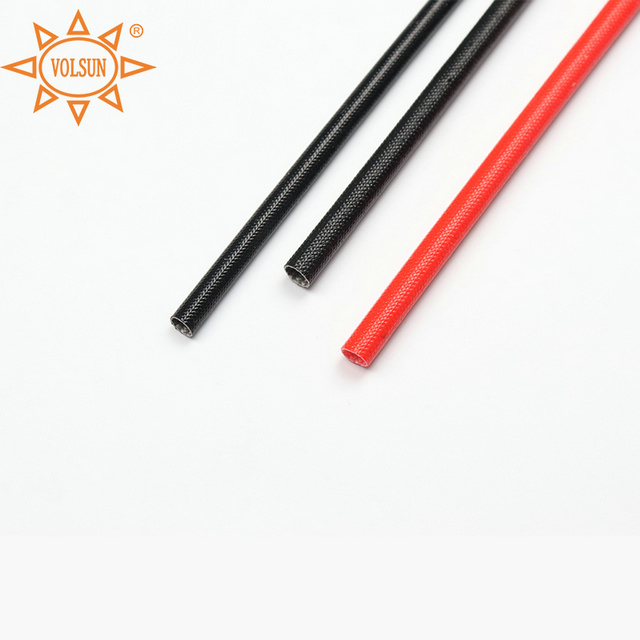

Volsun Silicone rubber fiberglass sleeve is made by weaving alkali-free glass fiber into a sleeve, then coating the outer layer with silicone rubber. This fiberglass sleeving is commonly used in various industries such as new energy vehicles, special vehicles, rail transit, and aerospace for protecting circuits from insulation. Its outstanding heat resistance allows for use in high-temperature environments like smelting workshops, the power industry, and foundry industry. Furthermore, it is utilized for insulation protection in H class motors, household appliances, electric heating devices, and special lamps.
What's more, silicone fiberglass braided sleeves not only offer excellent insulation properties but also exhibit good corrosion resistance, aging resistance, and flame retardancy. These qualities allow them to remain flexible and elastic even in high/low temperatures (-40°C~200°C) without being affected by temperature fluctuations.
As a professional fiberglass sleeves manufacturer, special sizes, colors, length and package are available on request. Free samples also can be provided for testing.
Fiberglass Protection Sleeves for Wire Harness Insulation are designed to provide excellent protection for wires and cables in various industrial and commercial applications. Made by weaving alkali-free glass fibers into a sleeve and then coating it with silicone rubber, these fiberglass sleeves offer superior insulation, heat resistance, and durability.
The versatility of these protection sleeves makes them suitable for use in diverse fields such as new energy vehicles, special vehicles, rail transit, and aerospace industries. The high-performance material ensures that the circuits it protects are insulated from external elements, maintaining their integrity even in the most demanding environments.
Volsun Silicone rubber fiberglass sleeve is made by weaving alkali-free glass fiber into a sleeve, then coating the outer layer with silicone rubber. This fiberglass sleeving is commonly used in various industries such as new energy vehicles, special vehicles, rail transit, and aerospace for protecting circuits from insulation. Its outstanding heat resistance allows for use in high-temperature environments like smelting workshops, the power industry, and foundry industry. Furthermore, it is utilized for insulation protection in H class motors, household appliances, electric heating devices, and special lamps.
What's more, silicone fiberglass braided sleeves not only offer excellent insulation properties but also exhibit good corrosion resistance, aging resistance, and flame retardancy. These qualities allow them to remain flexible and elastic even in high/low temperatures (-40°C~200°C) without being affected by temperature fluctuations.
As a professional fiberglass sleeves manufacturer, special sizes, colors, length and package are available on request. Free samples also can be provided for testing.
Fiberglass Protection Sleeves for Wire Harness Insulation are designed to provide excellent protection for wires and cables in various industrial and commercial applications. Made by weaving alkali-free glass fibers into a sleeve and then coating it with silicone rubber, these fiberglass sleeves offer superior insulation, heat resistance, and durability.
The versatility of these protection sleeves makes them suitable for use in diverse fields such as new energy vehicles, special vehicles, rail transit, and aerospace industries. The high-performance material ensures that the circuits it protects are insulated from external elements, maintaining their integrity even in the most demanding environments.
Continuous Operating temperature: -40℃ ~ 200℃
Environmental protection standards: RoHS, REACH
Standard color: transparent, white, black, red, yellow, blue, green, orange, other colors can be customized.
Continuous Operating temperature: -40℃ ~ 200℃
Environmental protection standards: RoHS, REACH
Standard color: transparent, white, black, red, yellow, blue, green, orange, other colors can be customized.
Properties | Typical Data | Test method |
Appearance | No leakage, cracking,etc | GB/T 7113.1-2014 |
Hydrolysis of coating | No coating displacement, adhesion,etc | GB/T 7113.2-2014 |
Cold bending | -40℃, 4h, no cracks, coating peeling and delamination | GB/T 7113.2-2014 |
Flame retardant | HB | UL94 |
Breakdown voltage | Reference standards | GB/T 7113.2-2014 |
Tear strength | ≥50N/mm(Except size below ID4.0mm) | / |
Properties | Typical Data | Test method |
Appearance | No leakage, cracking,etc | GB/T 7113.1-2014 |
Hydrolysis of coating | No coating displacement, adhesion,etc | GB/T 7113.2-2014 |
Cold bending | -40℃, 4h, no cracks, coating peeling and delamination | GB/T 7113.2-2014 |
Flame retardant | HB | UL94 |
Breakdown voltage | Reference standards | GB/T 7113.2-2014 |
Tear strength | ≥50N/mm(Except size below ID4.0mm) | / |
Size( mm ) | Wall thickness W(mm) | Standard Packing | ||||
Diameter (mm) | Tolerance (mm) | 1500V | 2500V | 4000V | 7000V | M/Roll |
Φ2.0 | -0.10~0.30 | 0.35±0.10 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 100 |
Φ2.5 | -0.10~0.30 | 0.35±0.10 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 100 |
Φ3.0 | -0.10~0.30 | 0.35±0.10 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 100 |
Φ3.5 | -0.10~0.40 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 100 |
Φ4.0 | -0.10~0.40 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 100 |
Φ4.5 | -0.10~0.40 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 100 |
Φ5.0 | -0.10~0.40 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 100 |
Φ5.5 | -0.10~0.40 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 0.60±0.10 | 100 |
Φ6.0 | -0.10~0.40 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 0.60±0.10 | 100 |
Φ7.0 | -0.10~0.50 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 0.60±0.10 | 100 |
Φ8.0 | -0.10~0.50 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 0.65±0.10 | 50 |
Φ9.0 | -0.10~0.50 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 0.65±0.10 | 50 |
Φ10.0 | -0.20~0.70 | 0.50±0.15 | 0.55±0.15 | 0.65±0.15 | 0.70±0.15 | 50 |
Φ11.0 | -0.20~0.70 | 0.50±0.15 | 0.55±0.15 | 0.65±0.15 | 0.70±0.15 | 50 |
Φ12.0 | -0.20~0.70 | 0.50±0.15 | 0.55±0.15 | 0.65±0.15 | 0.70±0.15 | 50 |
Φ13.0 | -0.30~0.80 | 0.55±0.15 | 0.60±0.15 | 0.70±0.15 | 0.75±0.15 | 50 |
Φ14.0 | -0.30~0.80 | 0.55±0.15 | 0.60±0.15 | 0.70±0.15 | 0.75±0.15 | 50 |
Φ15.0 | -0.30~0.80 | 0.55±0.15 | 0.60±0.15 | 0.70±0.15 | 0.75±0.15 | 50 |
Φ16.0 | -0.30~0.80 | 0.55±0.15 | 0.60±0.15 | 0.70±0.15 | 0.75±0.15 | 50 |
Φ17.0 | -0.50~1.00 | 0.60±0.20 | 0.60±0.20 | 0.75±0.20 | 0.80±0.20 | 30 |
Φ18.0 | -0.50~1.00 | 0.60±0.20 | 0.65±0.20 | 0.75±0.20 | 0.80±0.20 | 30 |
Φ19.0 | -0.50~1.00 | 0.60±0.20 | 0.65±0.20 | 0.80±0.20 | 0.85±0.20 | 30 |
Φ20.0 | -0.50~1.00 | 0.60±0.20 | 0.65±0.20 | 0.80±0.20 | 0.85±0.20 | 30 |
Φ22.0 | -0.50~1.00 | 0.65±0.20 | 0.75±0.20 | 0.85±0.20 | 0.90±0.20 | 30 |
Φ25.0 | -0.50~1.00 | 0.75±0.20 | 0.85±0.20 | 0.95±0.20 | 1.05±0.20 | 30 |
Noted: Special sizes & packing are available on request.
Size( mm ) | Wall thickness W(mm) | Standard Packing | ||||
Diameter (mm) | Tolerance (mm) | 1500V | 2500V | 4000V | 7000V | M/Roll |
Φ2.0 | -0.10~0.30 | 0.35±0.10 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 100 |
Φ2.5 | -0.10~0.30 | 0.35±0.10 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 100 |
Φ3.0 | -0.10~0.30 | 0.35±0.10 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 100 |
Φ3.5 | -0.10~0.40 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 100 |
Φ4.0 | -0.10~0.40 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 100 |
Φ4.5 | -0.10~0.40 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 100 |
Φ5.0 | -0.10~0.40 | 0.40±0.10 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 100 |
Φ5.5 | -0.10~0.40 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 0.60±0.10 | 100 |
Φ6.0 | -0.10~0.40 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 0.60±0.10 | 100 |
Φ7.0 | -0.10~0.50 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 0.60±0.10 | 100 |
Φ8.0 | -0.10~0.50 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 0.65±0.10 | 50 |
Φ9.0 | -0.10~0.50 | 0.45±0.10 | 0.50±0.10 | 0.55±0.10 | 0.65±0.10 | 50 |
Φ10.0 | -0.20~0.70 | 0.50±0.15 | 0.55±0.15 | 0.65±0.15 | 0.70±0.15 | 50 |
Φ11.0 | -0.20~0.70 | 0.50±0.15 | 0.55±0.15 | 0.65±0.15 | 0.70±0.15 | 50 |
Φ12.0 | -0.20~0.70 | 0.50±0.15 | 0.55±0.15 | 0.65±0.15 | 0.70±0.15 | 50 |
Φ13.0 | -0.30~0.80 | 0.55±0.15 | 0.60±0.15 | 0.70±0.15 | 0.75±0.15 | 50 |
Φ14.0 | -0.30~0.80 | 0.55±0.15 | 0.60±0.15 | 0.70±0.15 | 0.75±0.15 | 50 |
Φ15.0 | -0.30~0.80 | 0.55±0.15 | 0.60±0.15 | 0.70±0.15 | 0.75±0.15 | 50 |
Φ16.0 | -0.30~0.80 | 0.55±0.15 | 0.60±0.15 | 0.70±0.15 | 0.75±0.15 | 50 |
Φ17.0 | -0.50~1.00 | 0.60±0.20 | 0.60±0.20 | 0.75±0.20 | 0.80±0.20 | 30 |
Φ18.0 | -0.50~1.00 | 0.60±0.20 | 0.65±0.20 | 0.75±0.20 | 0.80±0.20 | 30 |
Φ19.0 | -0.50~1.00 | 0.60±0.20 | 0.65±0.20 | 0.80±0.20 | 0.85±0.20 | 30 |
Φ20.0 | -0.50~1.00 | 0.60±0.20 | 0.65±0.20 | 0.80±0.20 | 0.85±0.20 | 30 |
Φ22.0 | -0.50~1.00 | 0.65±0.20 | 0.75±0.20 | 0.85±0.20 | 0.90±0.20 | 30 |
Φ25.0 | -0.50~1.00 | 0.75±0.20 | 0.85±0.20 | 0.95±0.20 | 1.05±0.20 | 30 |
Noted: Special sizes & packing are available on request.
1. What are Fiberglass Protection Sleeves for Wire Harness Insulation?
Fiberglass Protection Sleeves for Wire Harness Insulation are protective coverings made from woven alkali-free glass fiber, which is coated with silicone rubber. These sleeves are primarily used to insulate and protect wire harnesses and cables, ensuring that they remain functional and safe in a variety of harsh environments. They provide superior heat resistance, corrosion resistance, and flame retardancy.
2. What industries use Fiberglass Protection Sleeves?
These sleeves are used across a broad range of industries, including:
New energy vehicles: Protecting electrical systems from damage and heat.
Special vehicles: Providing insulation for specialized equipment.
Rail transit: Ensuring the safety and durability of cables in transportation systems.
Aerospace: Providing insulation and protection for wiring and equipment exposed to extreme conditions.
Power industry: Protecting circuits in power generation and distribution.
Foundry industry: Withstanding the high heat of molten metals.
3. What temperature range can Fiberglass Protection Sleeves withstand?
The Volsun Silicone Rubber Fiberglass Sleeve can withstand a wide temperature range from -40°C to 200°C. This makes it ideal for use in environments with high or low-temperature fluctuations, including industrial settings like smelting workshops and the power industry.
4. What are the advantages of using Fiberglass Protection Sleeves for Wire Harness Insulation?
High Heat Resistance: These sleeves can handle extreme temperatures without degrading.
Corrosion and Aging Resistance: They protect wires from damage caused by moisture, chemicals, and aging.
Flame Retardancy: The silicone rubber coating provides flame retardancy, ensuring safety in high-risk areas.
Excellent Insulation: They maintain electrical insulation properties, preventing short circuits and damage to sensitive electronics.
Flexibility: Despite high/low-temperature environments, these sleeves remain flexible and elastic.
5. What applications are ideal for Fiberglass Protection Sleeves?
Wire Harness Insulation: These sleeves are perfect for protecting wire harnesses in industrial equipment, motors, and appliances.
High-Temperature Applications: In industries such as foundry, smelting, and power generation, these sleeves offer reliable protection against extreme heat.
Electrical Devices: H-class motors, electric heating devices, and other electronic components benefit from the insulation provided by these sleeves.
Transportation: They are also used in rail transit and aerospace applications to protect cables in high-stress, high-temperature conditions.
6. Can Fiberglass Protection Sleeves be customized?
Yes, these sleeves can be customized according to size, color, and length to suit specific requirements. They are also available in different packaging options to meet customer needs.
1. What are Fiberglass Protection Sleeves for Wire Harness Insulation?
Fiberglass Protection Sleeves for Wire Harness Insulation are protective coverings made from woven alkali-free glass fiber, which is coated with silicone rubber. These sleeves are primarily used to insulate and protect wire harnesses and cables, ensuring that they remain functional and safe in a variety of harsh environments. They provide superior heat resistance, corrosion resistance, and flame retardancy.
2. What industries use Fiberglass Protection Sleeves?
These sleeves are used across a broad range of industries, including:
New energy vehicles: Protecting electrical systems from damage and heat.
Special vehicles: Providing insulation for specialized equipment.
Rail transit: Ensuring the safety and durability of cables in transportation systems.
Aerospace: Providing insulation and protection for wiring and equipment exposed to extreme conditions.
Power industry: Protecting circuits in power generation and distribution.
Foundry industry: Withstanding the high heat of molten metals.
3. What temperature range can Fiberglass Protection Sleeves withstand?
The Volsun Silicone Rubber Fiberglass Sleeve can withstand a wide temperature range from -40°C to 200°C. This makes it ideal for use in environments with high or low-temperature fluctuations, including industrial settings like smelting workshops and the power industry.
4. What are the advantages of using Fiberglass Protection Sleeves for Wire Harness Insulation?
High Heat Resistance: These sleeves can handle extreme temperatures without degrading.
Corrosion and Aging Resistance: They protect wires from damage caused by moisture, chemicals, and aging.
Flame Retardancy: The silicone rubber coating provides flame retardancy, ensuring safety in high-risk areas.
Excellent Insulation: They maintain electrical insulation properties, preventing short circuits and damage to sensitive electronics.
Flexibility: Despite high/low-temperature environments, these sleeves remain flexible and elastic.
5. What applications are ideal for Fiberglass Protection Sleeves?
Wire Harness Insulation: These sleeves are perfect for protecting wire harnesses in industrial equipment, motors, and appliances.
High-Temperature Applications: In industries such as foundry, smelting, and power generation, these sleeves offer reliable protection against extreme heat.
Electrical Devices: H-class motors, electric heating devices, and other electronic components benefit from the insulation provided by these sleeves.
Transportation: They are also used in rail transit and aerospace applications to protect cables in high-stress, high-temperature conditions.
6. Can Fiberglass Protection Sleeves be customized?
Yes, these sleeves can be customized according to size, color, and length to suit specific requirements. They are also available in different packaging options to meet customer needs.
